61 31 057 Removing and installing switch unit in center console

1. Remove heating controls.

Press out switch unit (1) through opening for heating controls.

Disconnect plug.

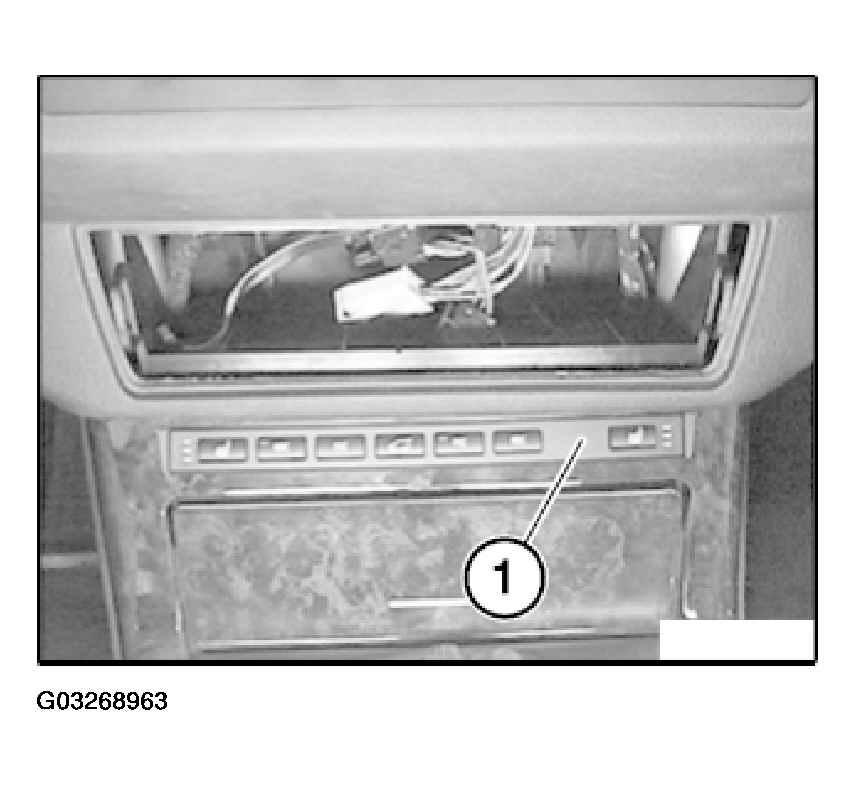

Fig 1: Pressing Out Switch Unit Through Opening For Heating Controls

Courtesy of BMW OF NORTH AMERICA, INC.
