64 12 580 Removing and installing/replacing exhaust pipe (bottom)

Release cap nut (1) and screw (2).

Detach exhaust pipe (3) in direction of arrow.

Installation:

Replace cap nut.

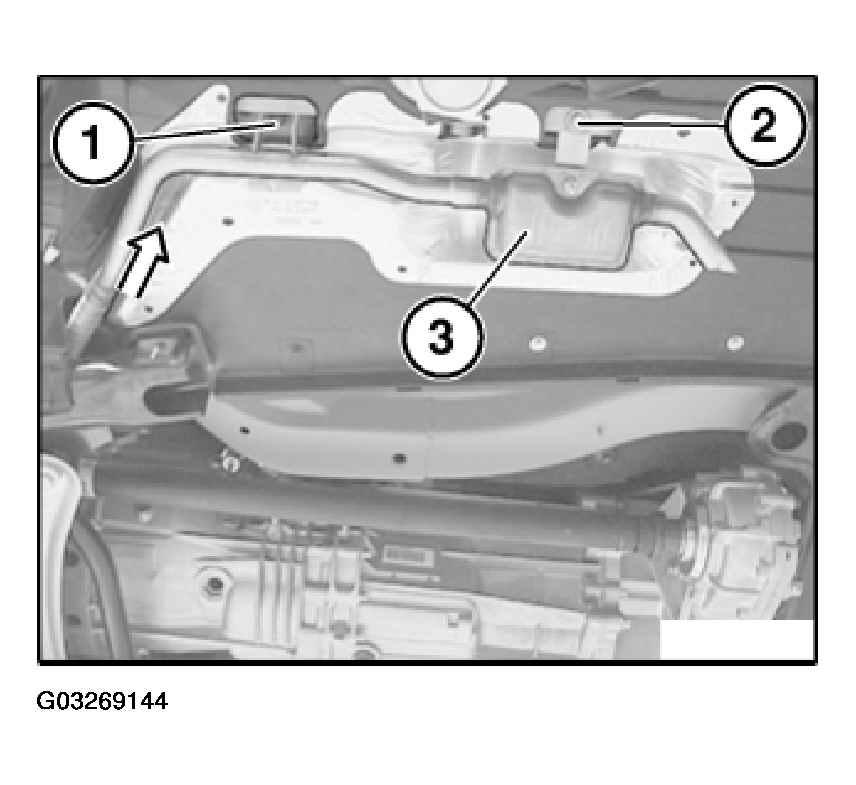

Fig 1: Locating Cap Nut And Screw
G03269144Courtesy of BMW OF NORTH AMERICA, INC.
