11 14 141 Replacing radial shaft seal in timing case cover at bottom (N62 / N62TU)

Special tools required:

11 9 410
11 9 420

Necessary preliminary tasks:

Remove hub for vibration damper

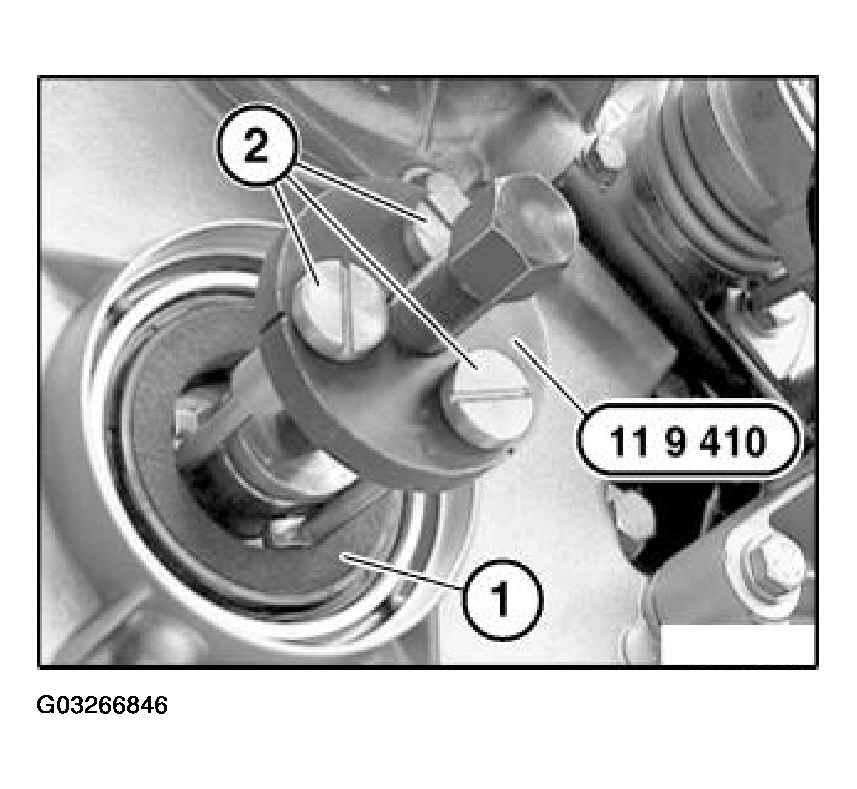

Position lever (2) for removing radial shaft seal (1) horizontally and install special tool 11 9 410.

Fig 1: Positioning Lever For Removing Radial Shaft Seal (N62/N62TU)

Courtesy of BMW OF NORTH AMERICA, INC.

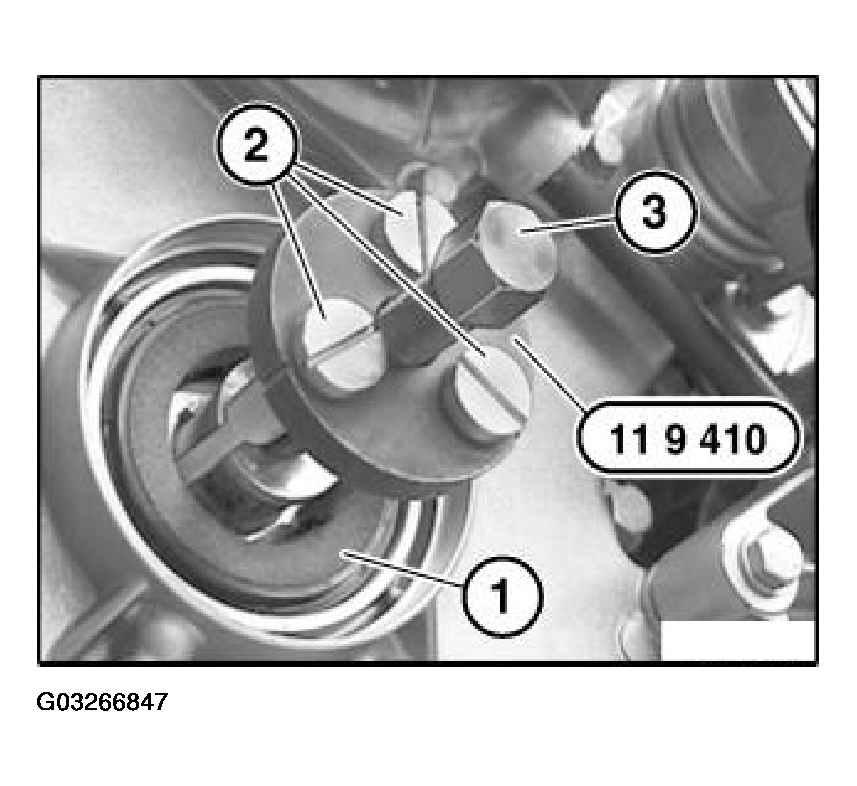

Turn lever (2) so that it grips behind radial shaft seal (1).

Turn bolt (3) on special tool 11 9 410 to remove radial shaft seal (1).

Fig 2: Turning Bolt On Special Tool 11 9 410 For Removing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Radial shaft seal may only be supported with a "support sleeve".

If the radial shaft seal (1) is stored for longer than six months without the support sleeve (2), its operational reliability can no longer be guaranteed and it must not be reused.

IMPORTANT: The sealing lip of the radial shaft seal is highly sensitive and must not be kinked under any circumstances.
Do not touch the sealing lip with your fingers.

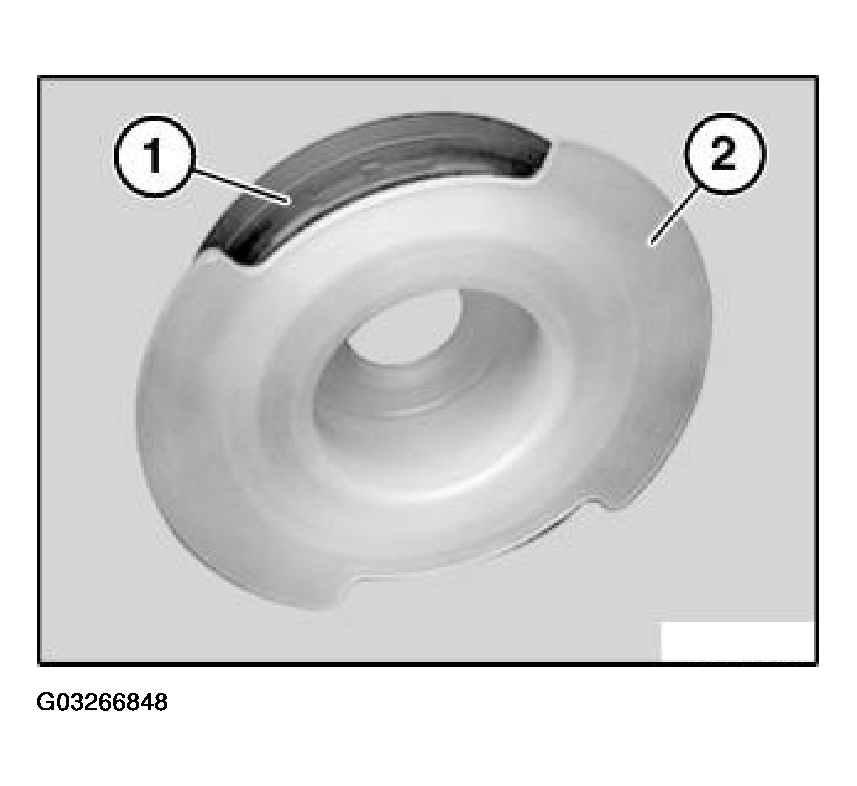

Remove support sleeve (2) from radial shaft seal (1).

Fig 3: Removing Support Sleeve From Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

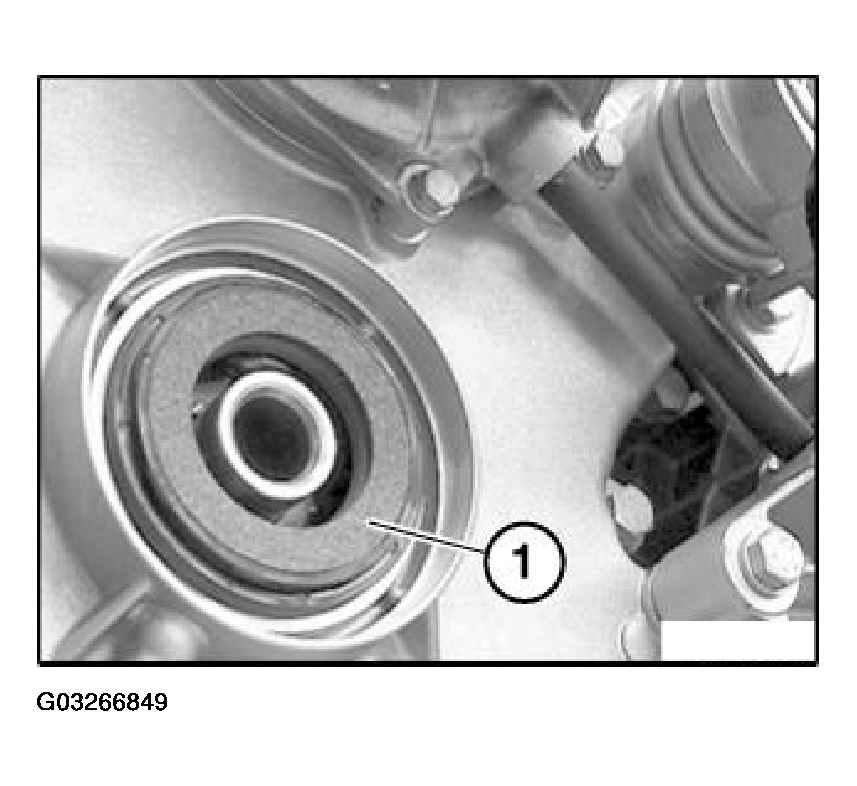

Fit radial shaft seal (1) on timing case cover.

Fig 4: Fitting Radial Shaft Seal On Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

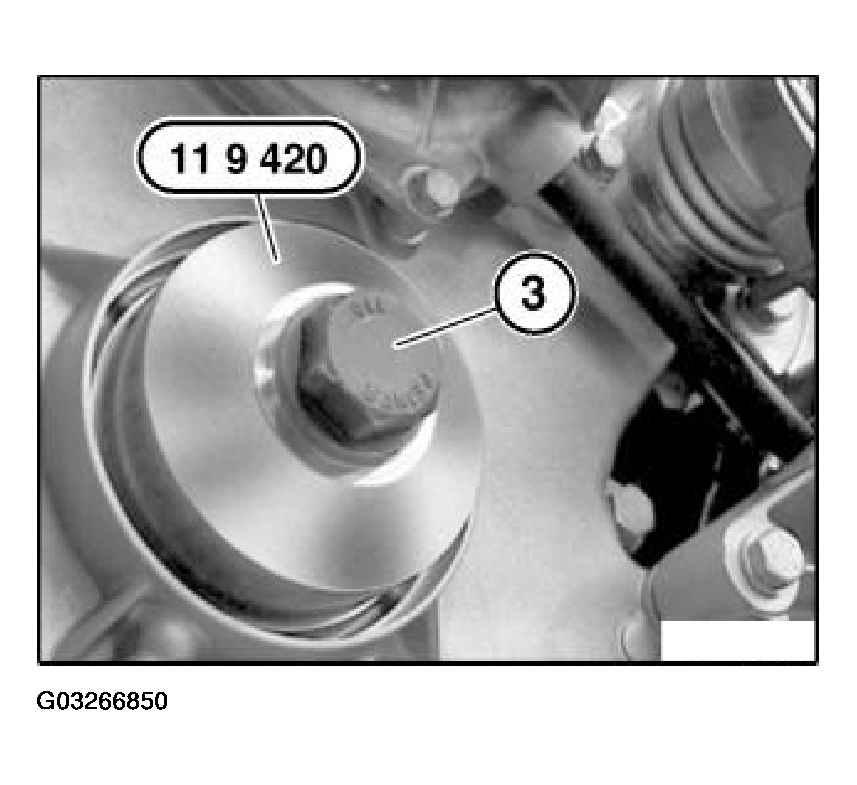

Using special tool 11 9 420 and central bolt (3), install radial shaft seal flush with timing case cover.

Fig 5: Installing Radial Shaft Seal Flush With Timing Case Cover Using Special Tool 11 9 420 And Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
