11 33 517 Removing and installing/replacing rocker arms on right inlet side (N62 from 9/03): Removal

Removal of rocker arms is described separately from installation.

Remove servomotor for right eccentric shaft.

Remove ignition coils on cylinder bank 1 to 4. See IGNITION COIL .

Remove right cylinder head cover.

Remove spark plugs on cylinder bank 1 to 4.

Install inlet and exhaust adjustment unit on right side.

IMPORTANT: The inlet camshaft must first be rotated so that when the bearing bracket is removed the intermediate levers do not slip out and damage the camshaft.

Rotate inlet camshaft in direction of rotation until cam on 1st cylinder is positioned horizontally as shown in illustration.

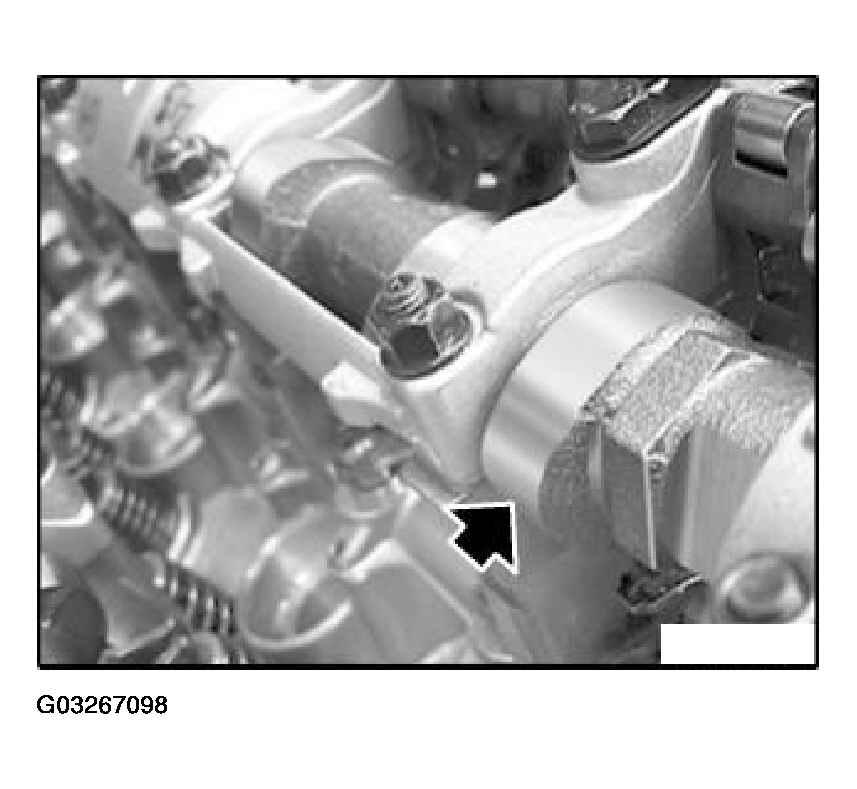

Fig 1: Rotating Inlet Camshaft

G03267098

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

NOTE: Bearing caps of inlet camshaft are marked on cylinder bank 1 to 4 with L E1 to L E5 from inlet side.

Release nuts and remove bearing cap L E1.

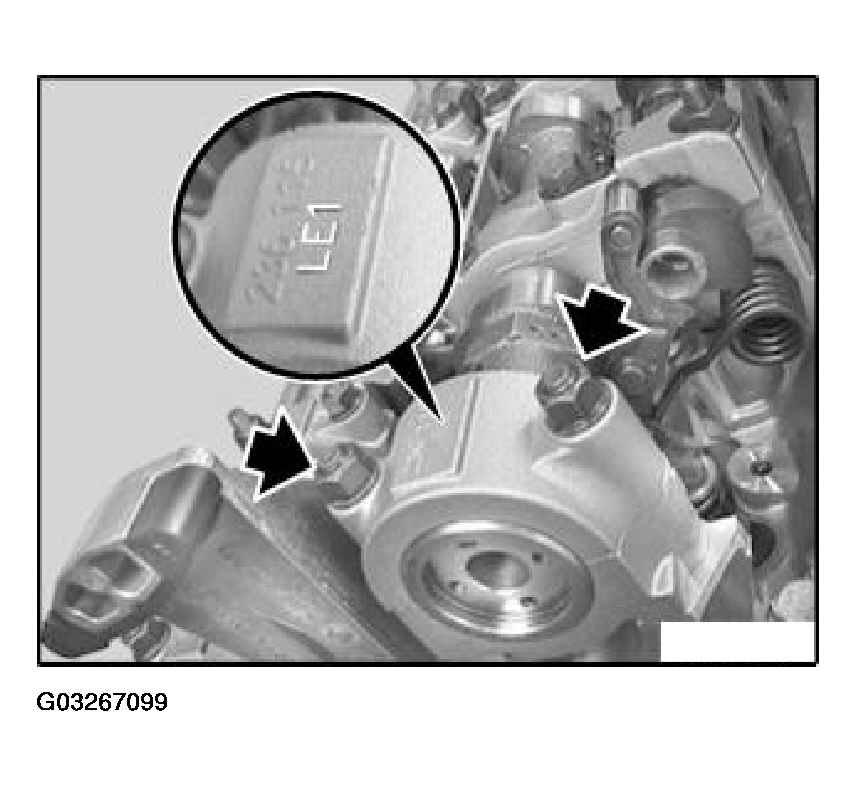

Fig 2: Removing Bearing Cap L E1

G03267099

Courtesy of BMW OF NORTH AMERICA, INC.

Release 8 nuts of bearing bracket (1) from outside to inside.

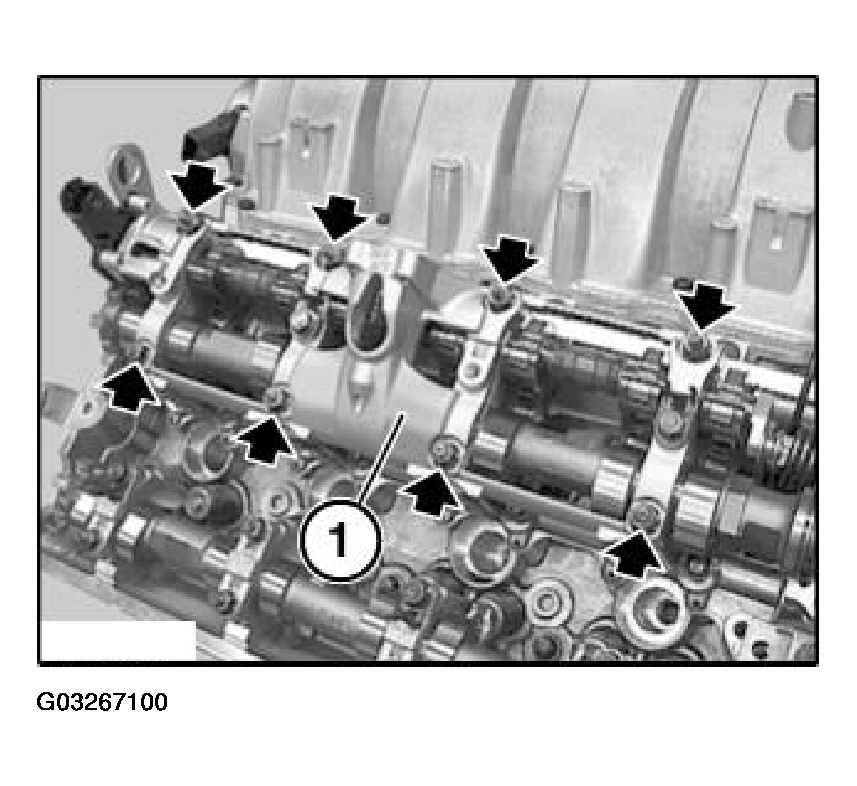

Fig 3: Removing Nuts Of Bearing Bracket From Outside To Inside

G03267100

Courtesy of BMW OF NORTH AMERICA, INC.

Clamp special tool 11 9 470 as illustrated in a vise.

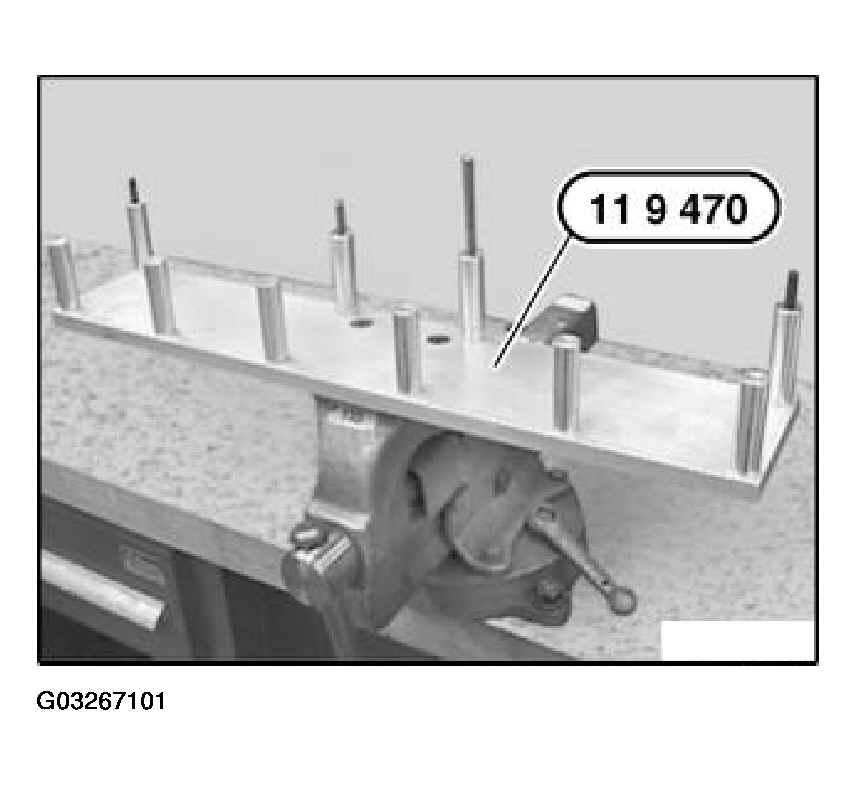

Fig 4: Clamping Special Tool 11 9 470 In Vise

G03267101

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not tilt bearing bracket (1).

Carefully lift out bearing bracket (1).

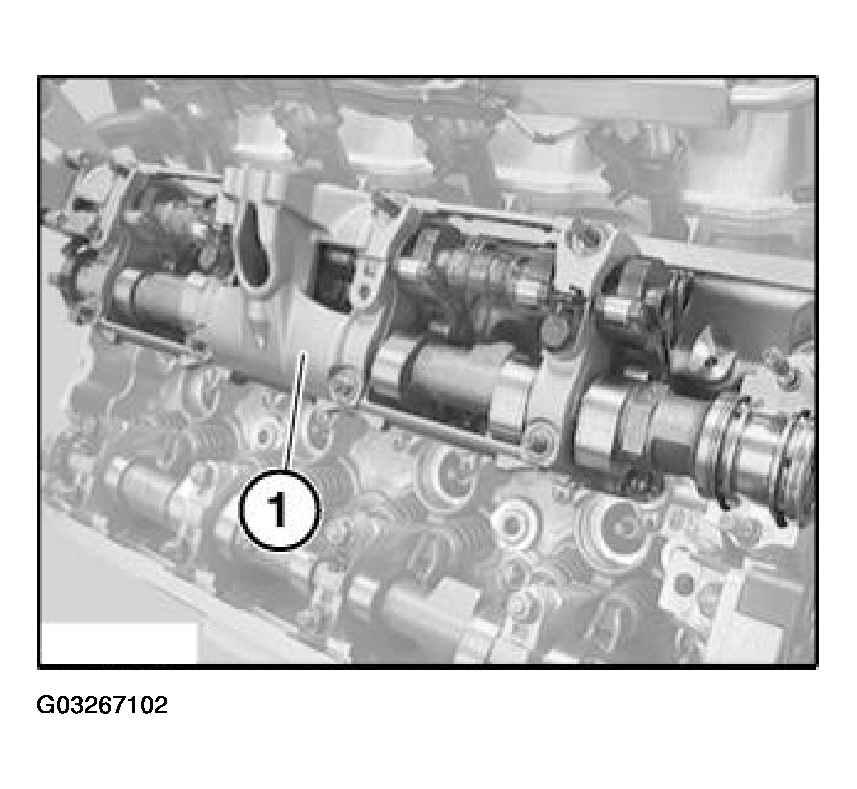

Fig 5: Lifting Out Bearing Bracket

G03267102

Courtesy of BMW OF NORTH AMERICA, INC.

Place bearing bracket (1) with inlet camshaft and eccentric shaft as illustrated on special tool 11 9 470.

Secure bearing bracket (1) with a nut (special tool 11 9 473).

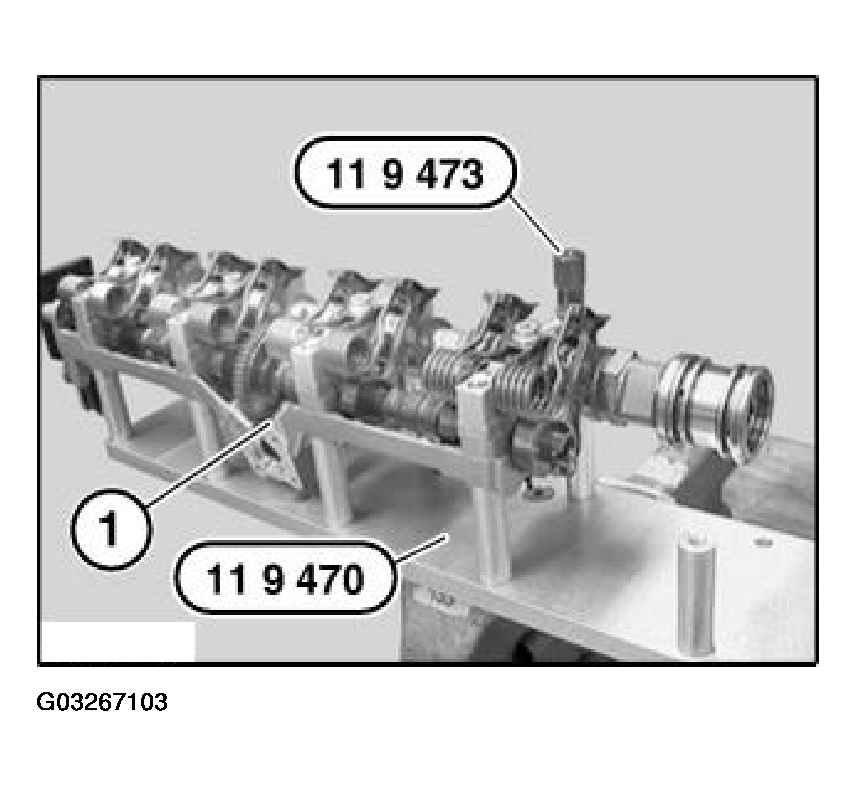

Fig 6: Securing Bearing Bracket With Nut (Special Tool 11 9 473)

G03267103

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The lower section of the bearing bracket (1) is machined with the cylinder head and must not be mixed up.

NOTE: Lower section of bearing bracket (1) remains on cylinder head.

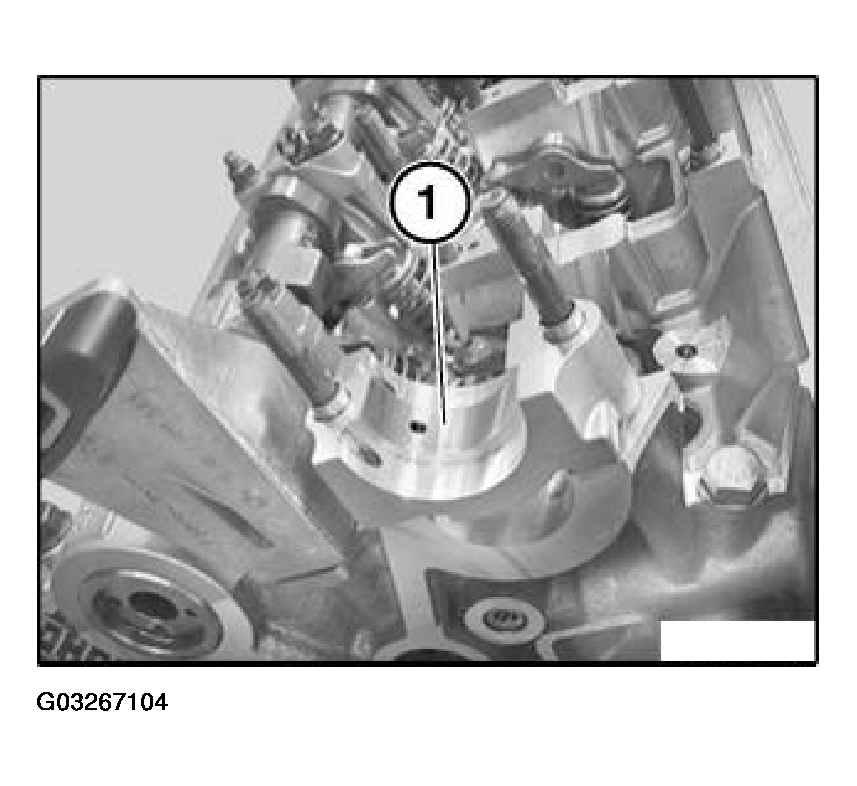

Fig 7: Remaining Lower Section Of Bearing Bracket On Cylinder Head

G03267104

Courtesy of BMW OF NORTH AMERICA, INC.
