11 31 574 Adjusting camshaft timing on right side (N62 / N62TU)

Special tools required:

11 9 190
11 9 460
11 9 461
11 9 462
11 9 463

(Cylinder Bank 1 To 4)

Necessary preliminary tasks:

Are described in the operation "Checking camshaft timing on right side ".
Remove right timing case cover

NOTE: When slackening screws, grip camshafts at hexagon head.

Slacken screws of exhaust and inlet adjustment unit.

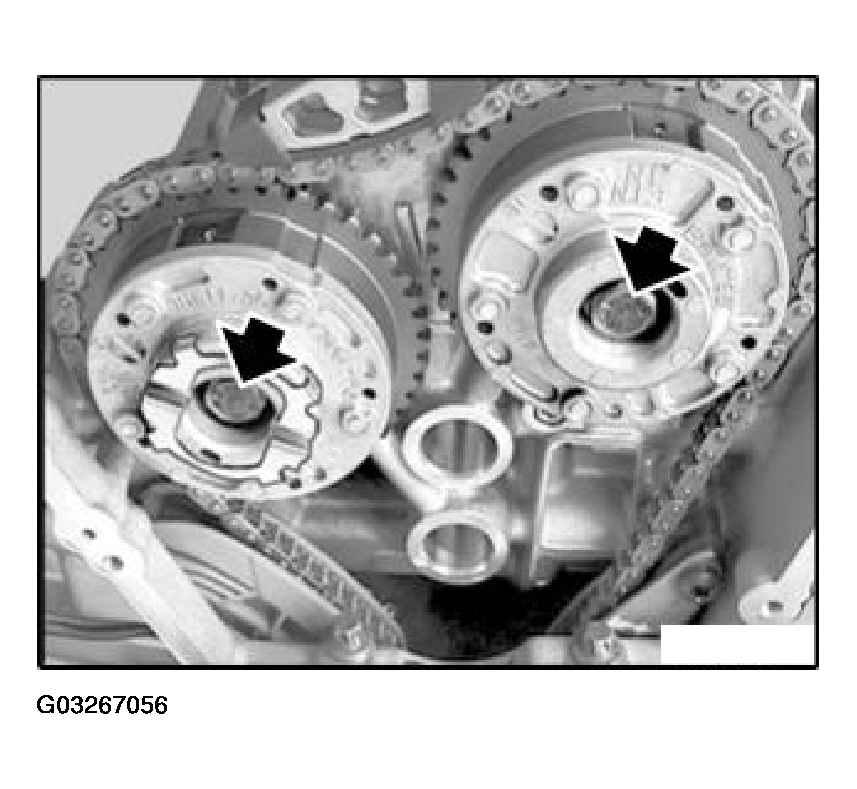

Fig 1: Slackening Screws Of Exhaust And Inlet Adjustment Unit

G03267056

Courtesy of BMW OF NORTH AMERICA, INC.

Get special tool kit 11 9 460 ready for securing camshafts.

NOTE: Special tool 11 9 461 for securing inlet camshaft.
Special tool 11 9 462 for securing exhaust camshaft.
Special tool 11 9 463 (holder with screw).

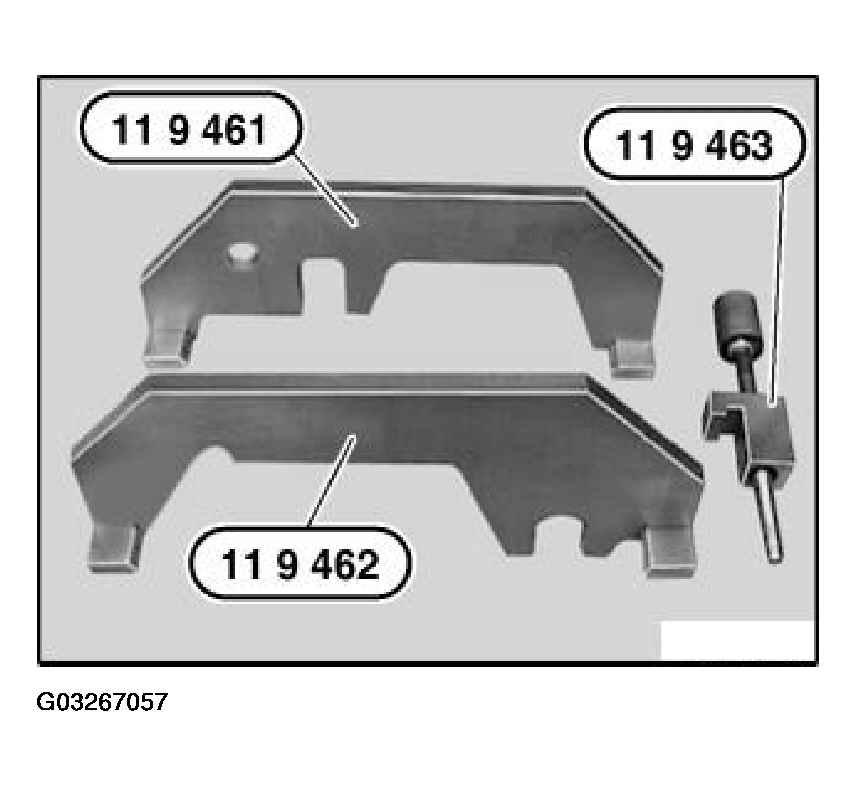

Fig 2: Identifying Special Tools

G03267057

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 461 on inlet camshaft and align inlet camshaft so that special tool 11 9 461 rests without a gap on cylinder head.

Fig 3: Placing Special Tool 11 9 461 On Inlet Camshaft And Aligning Inlet Camshaft

G03267058

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 463, secure screw (1) in thread for oil line and tighten down by hand.

Fig 4: Tightening Screw In Thread For Oil Line

G03267059

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When tightening down screw (1), grip camshaft at hexagon head.

Tighten down screw (1) of inlet adjustment unit.

Tightening torque, see ENGINE - TIGHTENING TORQUES .

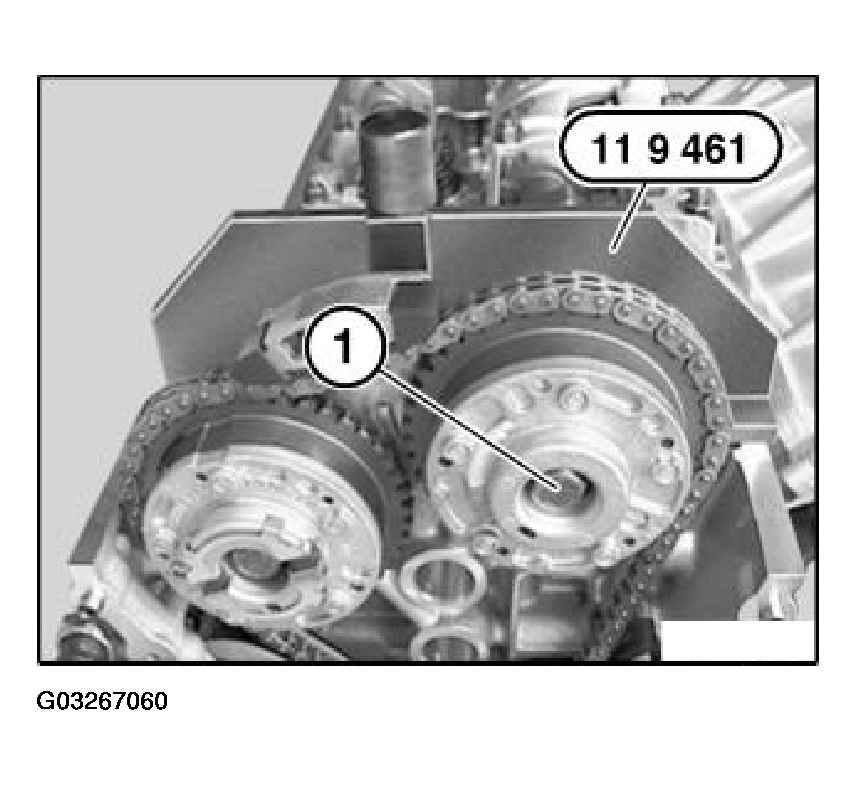

Fig 5: Tightening Screw Of Inlet Adjustment Unit

G03267060

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), remove special tools 11 9 463 and 11 9 461 from inlet camshaft.

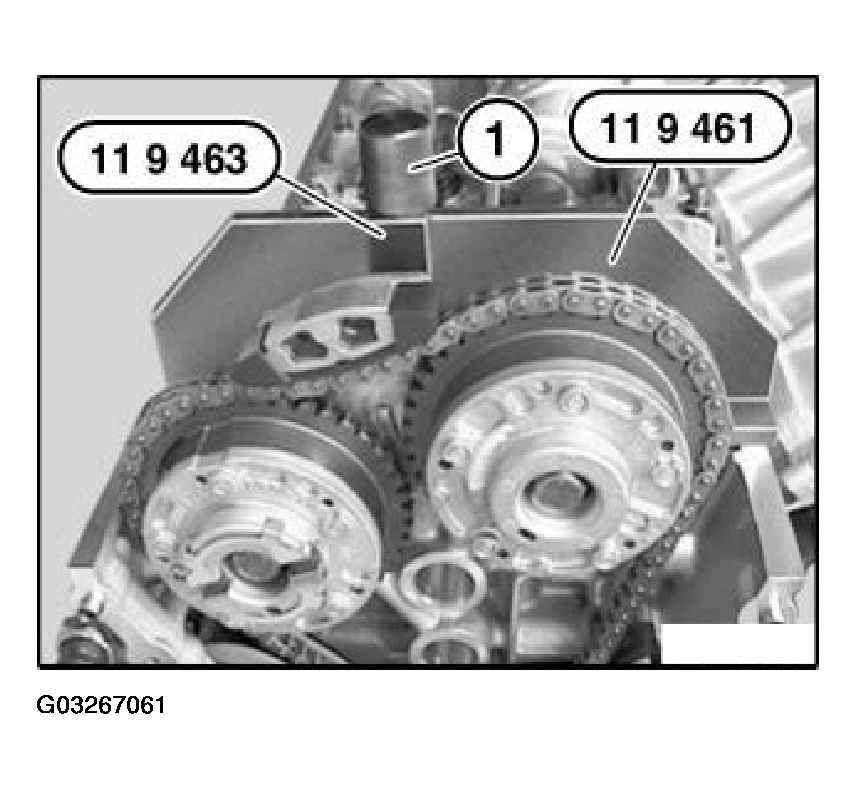

Fig 6: Releasing Screw And Removing Special Tools 11 9 463 And 11 9 461 From Inlet Camshaft

G03267061

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 462 on exhaust camshaft and align exhaust camshaft so that special tool 11 9 462 rests without a gap on cylinder head.

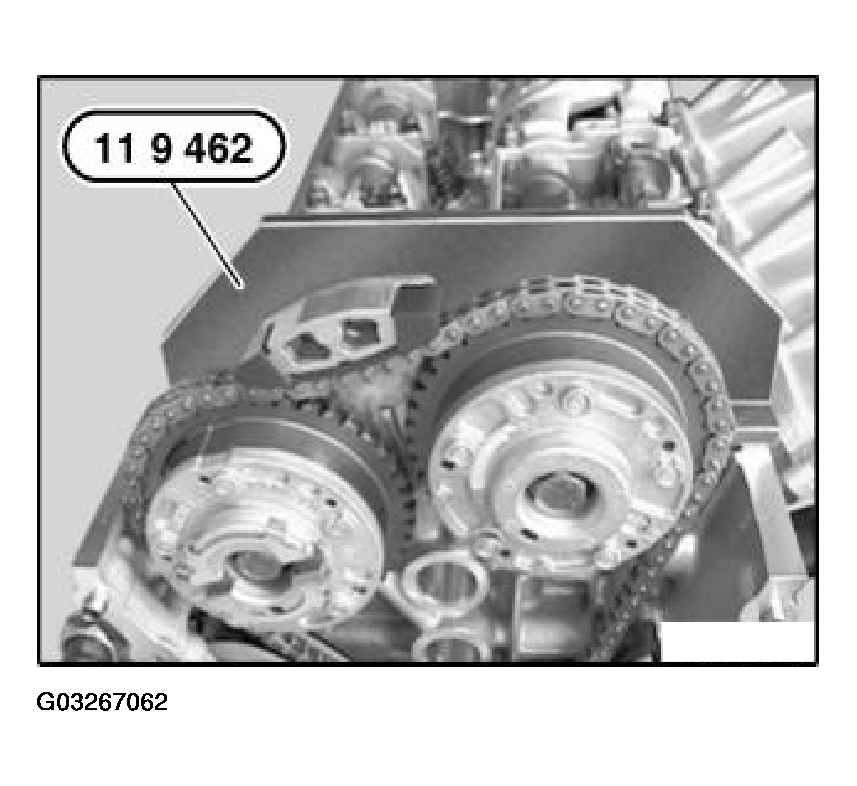

Fig 7: Placing Special Tool 11 9 462 On Exhaust Camshaft And Aligning Exhaust Camshaft

G03267062

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 463, secure screw (1) in thread for oil line and tighten down by hand.

Fig 8: Tightening Screw In Thread For Oil Line

G03267063

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When tightening down screw (2), grip camshaft at hexagon head.

Tighten down screw (2) of exhaust adjustment unit.

Tightening torque, see ENGINE - TIGHTENING TORQUES .

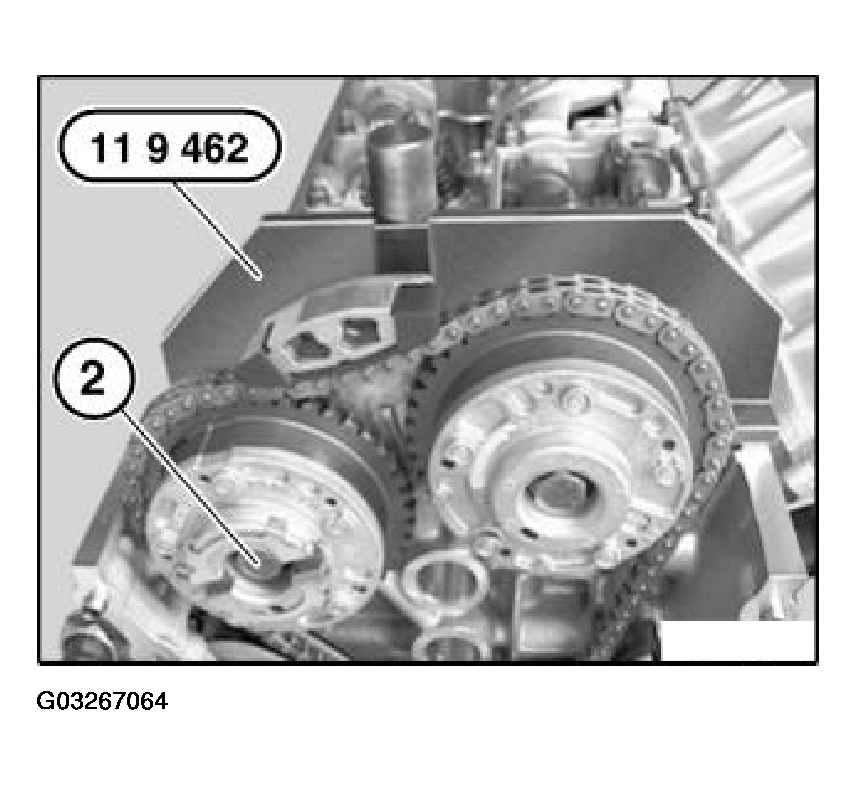

Fig 9: Tightening Screw Of Exhaust Adjustment Unit

G03267064

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), remove special tools 11 9 463 and 11 9 462 from exhaust camshaft.

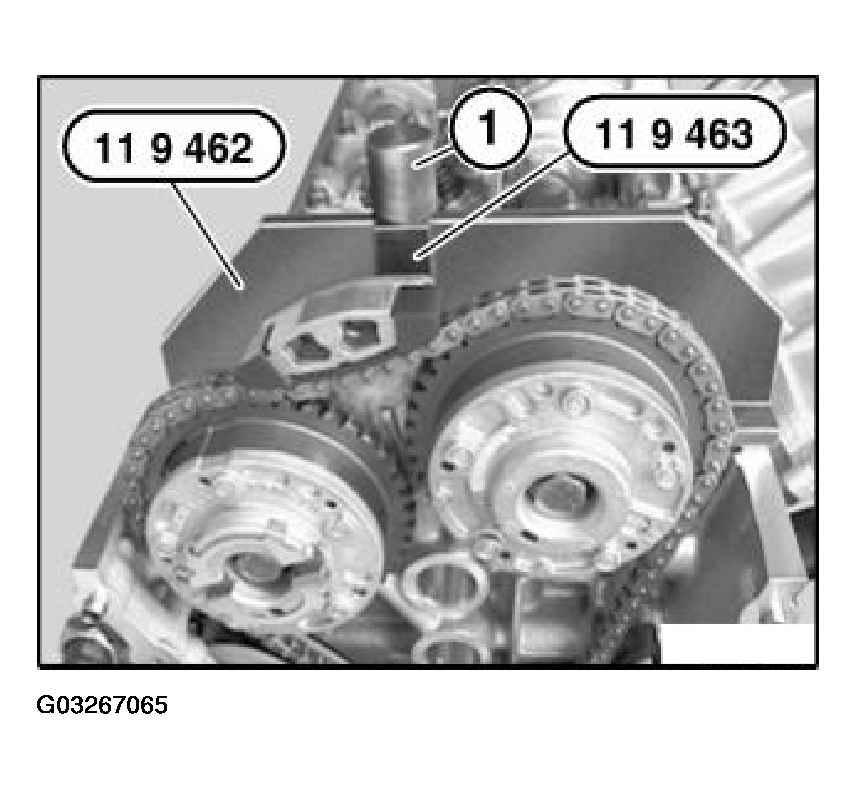

Fig 10: Removing Special Tools 11 9 463 And 11 9 462 From Exhaust Camshaft

G03267065

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190.

Crank engine at central bolt twice in direction of rotation until engine returns to firing TDC position of 1st cylinder.

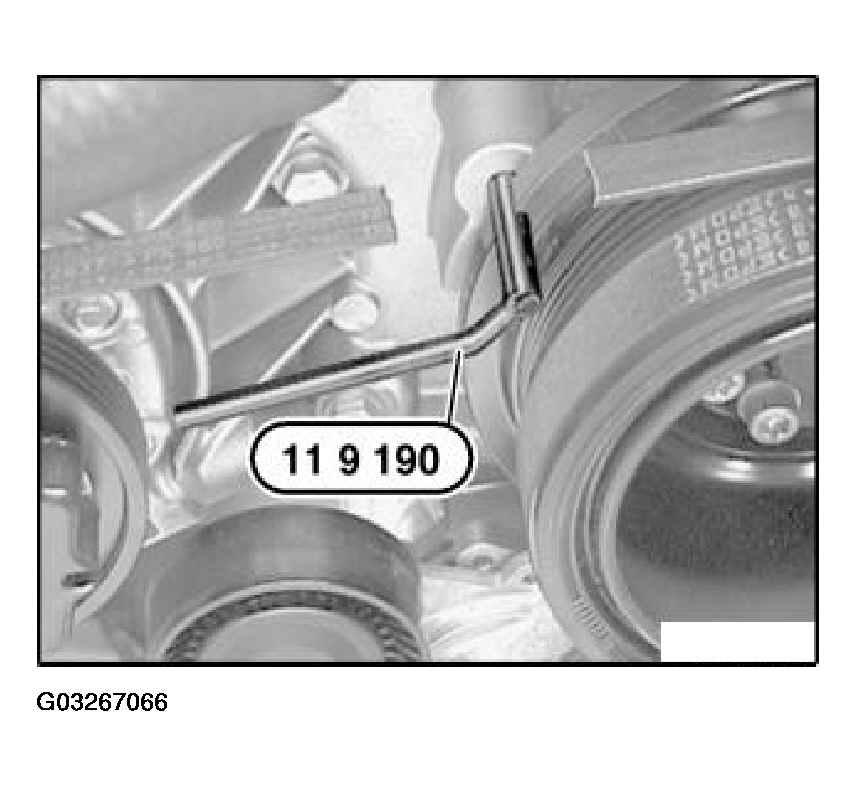

Secure vibration damper with special tool 11 9 190 in firing TDC position of 1st cylinder.

Fig 11: Securing Vibration Damper With Special Tool 11 9 190

G03267066

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 461 on inlet camshaft and check timing.

NOTE: The timing is correctly adjusted when special tool 11 9 461 rests flat on the cylinder head or protrudes by up to 0.5 mm to the exhaust side.

Remove special tool 11 9 461 from inlet camshaft.

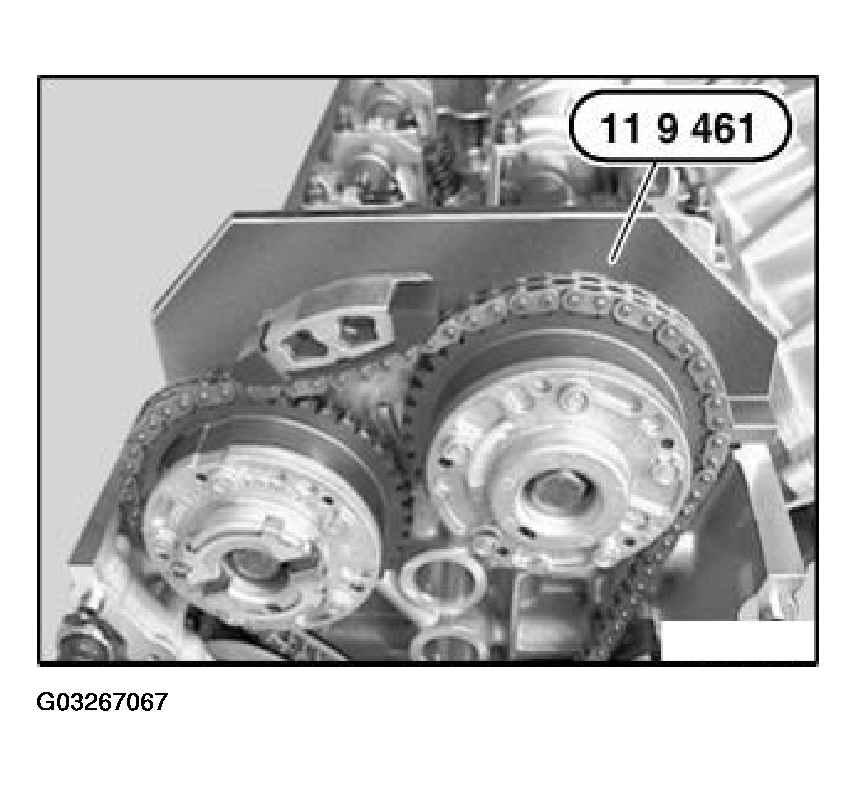

Fig 12: Placing Special Tool 11 9 461 On Inlet Camshaft And Checking Timing

G03267067

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 462 on exhaust camshaft and check timing.

NOTE: The timing is correctly adjusted when special tool 11 9 462 rests flat on the cylinder head or protrudes by up to 0.5 mm to the exhaust side.

Fig 13: Placing Special Tool 11 9 462 On Exhaust Camshaft And Checking Timing

G03267068

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
