11 31 038 Removing and installing/replacing right exhaust camshaft (N62): Removal

Removal of exhaust camshaft is described separately from installation.

Remove servomotor for right eccentric shaft.

Remove ignition coils on cylinder bank 1 to 4. See IGNITION COIL .

Remove spark plugs on cylinder bank 1 to 4.

Remove inlet and exhaust adjustment unit on right side.

Remove slide rail (1).

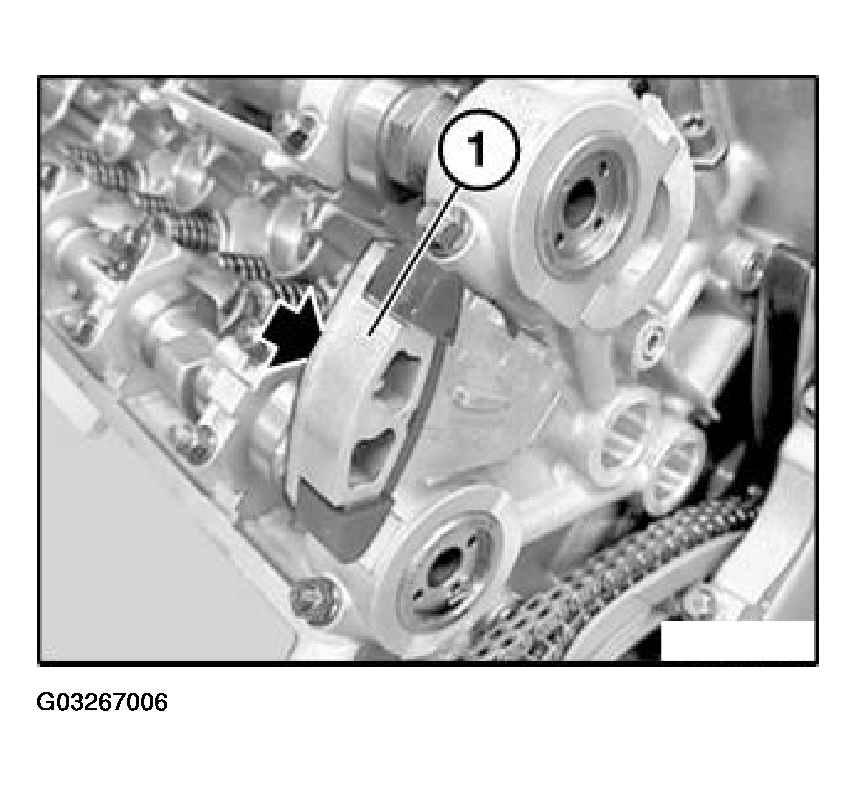

Fig 1: Removing Slide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate exhaust camshaft at hexagon head against direction of rotation until exhaust cam on cylinder (2) faces upwards.

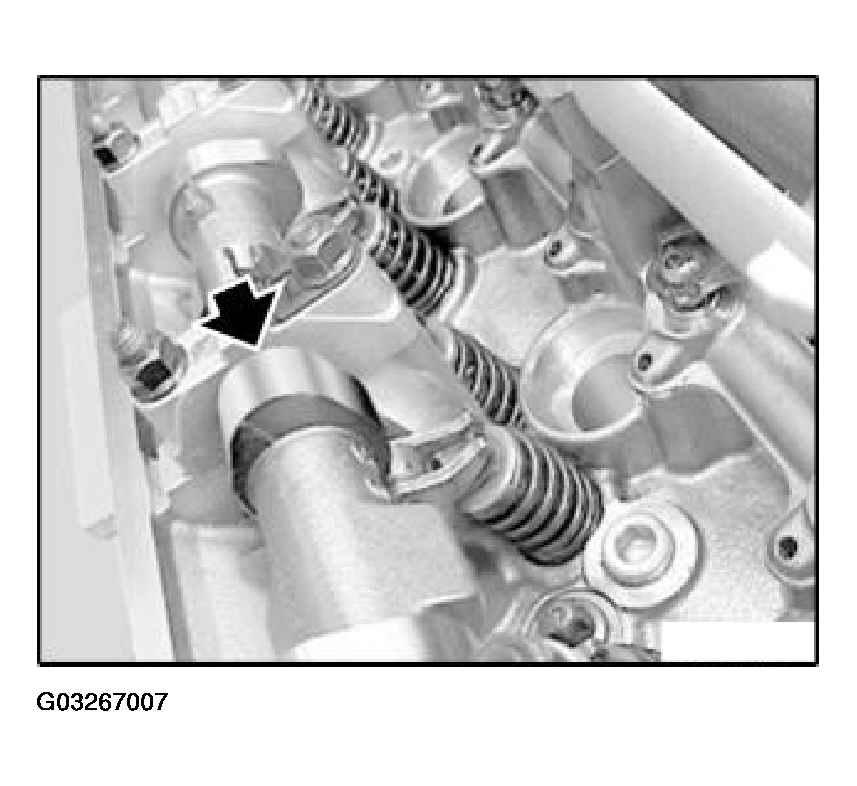

Fig 2: Rotating Exhaust Camshaft At Hexagon Head

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

NOTE: Bearing caps of exhaust camshaft are marked on cylinder bank 1 to 4 with L A1 to L A5 from inlet side.

Release nuts and remove bearing cap L A1.

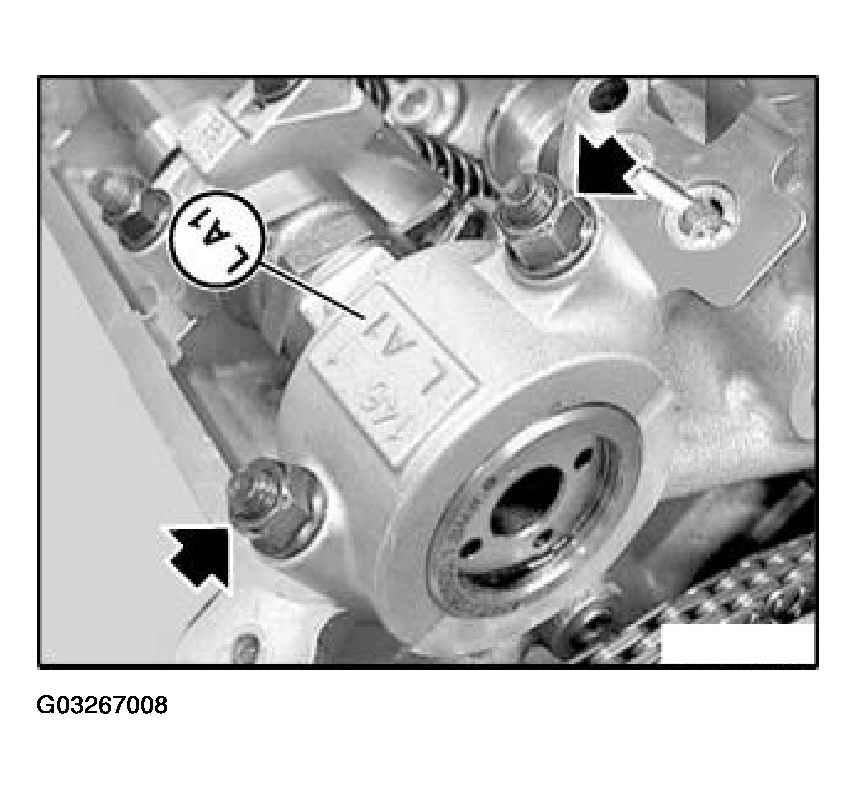

Fig 3: Removing Bearing Cap L A1

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Retaining clips (1) for oil line are fitted on bearing caps 3 and 5.

Release nuts on bearing caps L A2 to L A5.

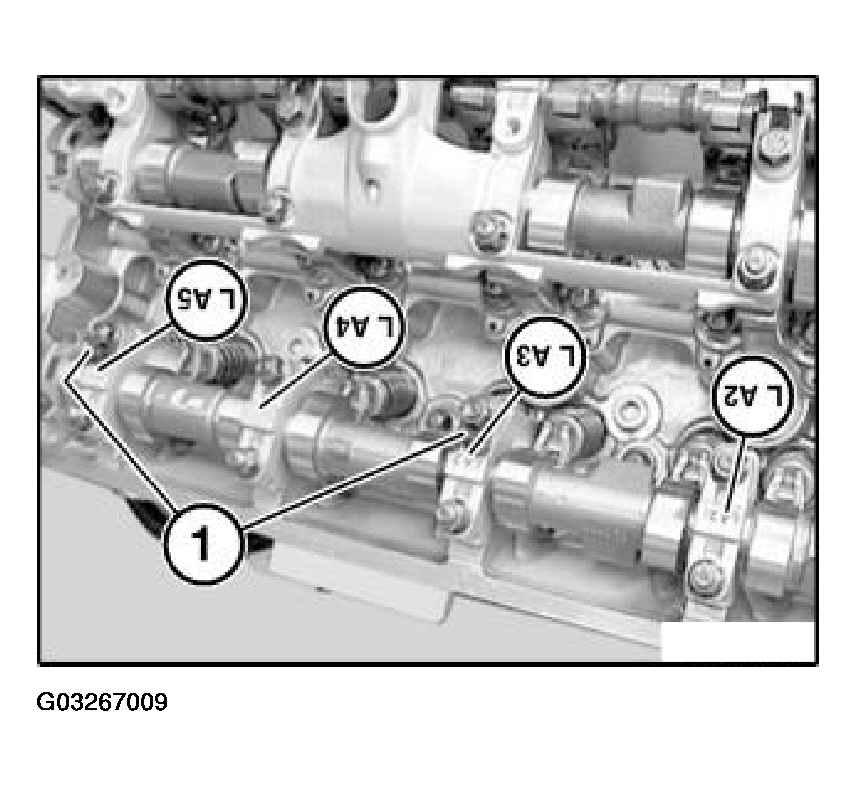

Fig 4: Fitting Retaining Clips For Oil Line On Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing caps L A2 to L A5.

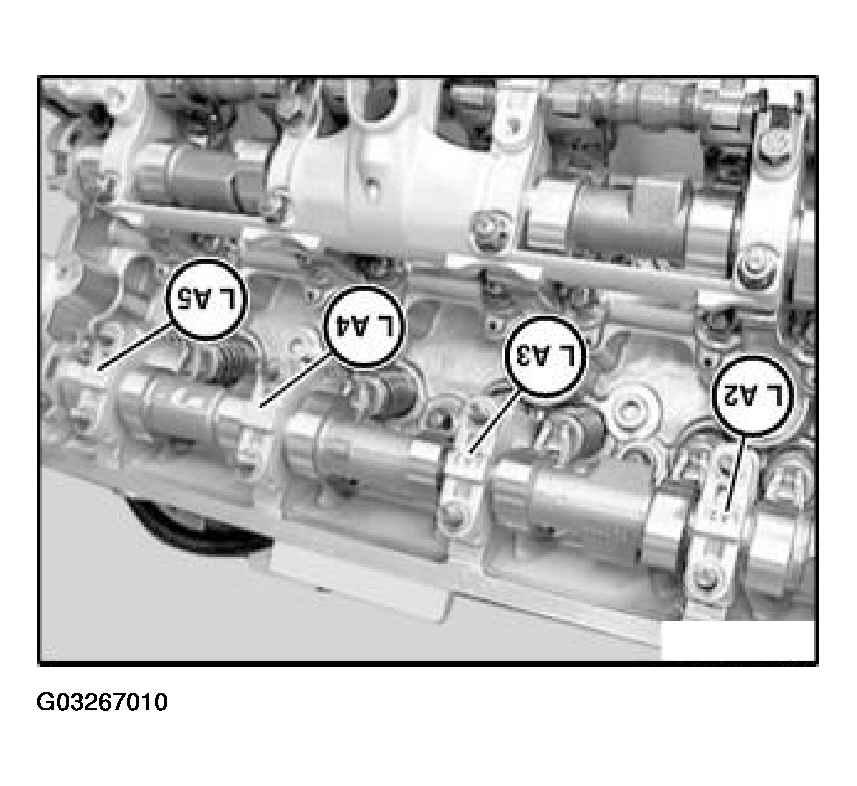

Fig 5: Removing Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Remove exhaust camshaft (1).

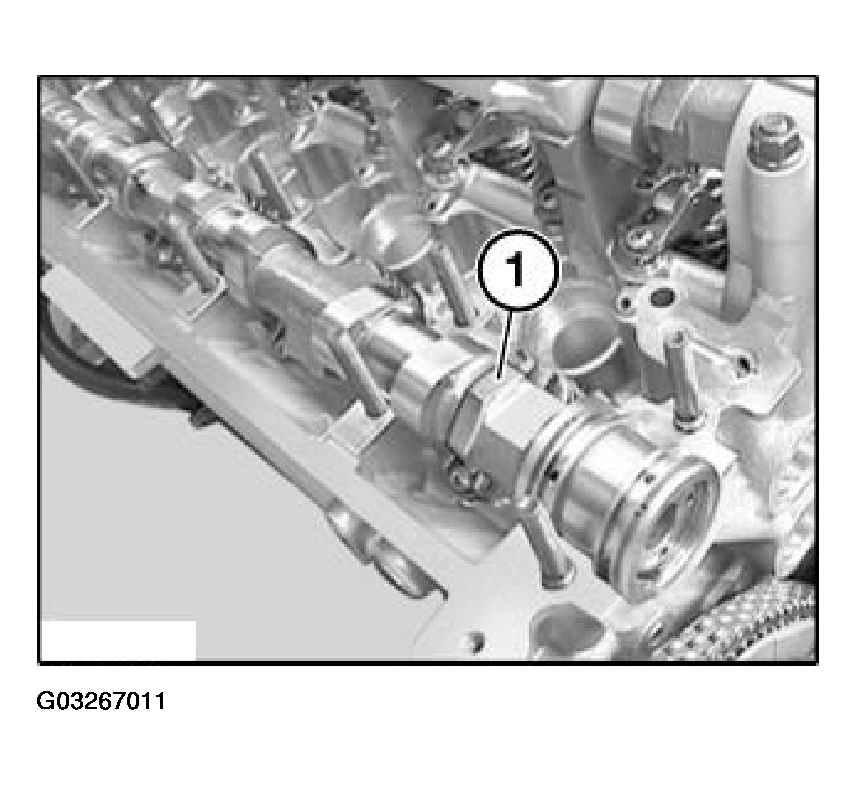

Fig 6: Removing Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace plain compression rings (1).

CAUTION: Plain compression rings (1) can easily break.

Plain compression rings (1) are engaged at joint.

Press compression ring (1) on one side into groove, pull up on other side and remove catch.

Carefully pull compression ring (1) apart and remove towards front.

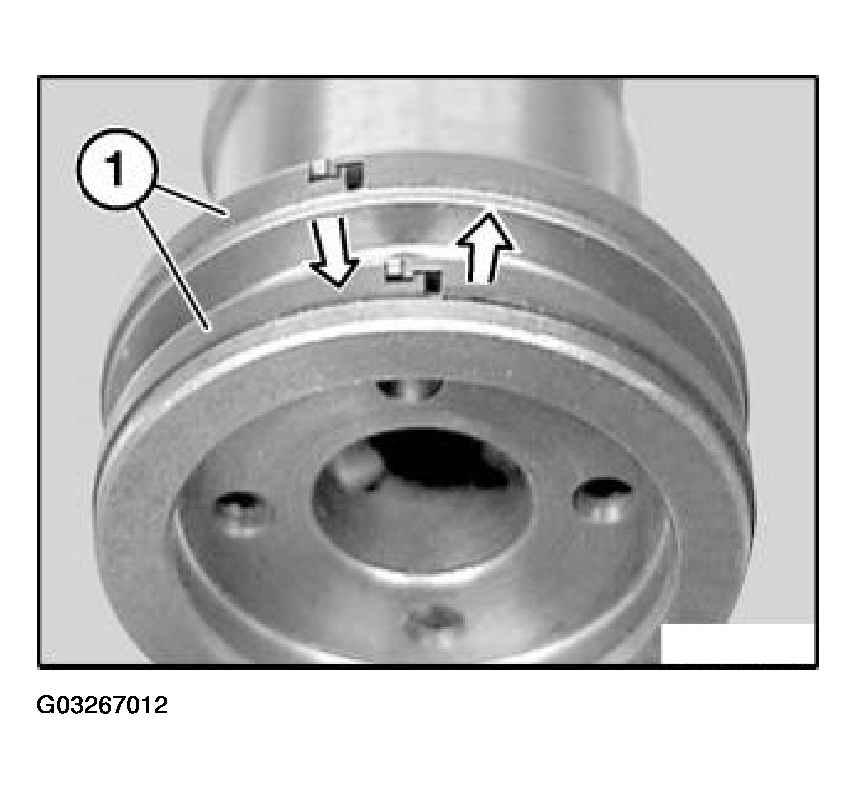

Fig 7: Removing Compression Ring

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace sensor gear (1).

Release screw (2) and remove sensor gear (1).

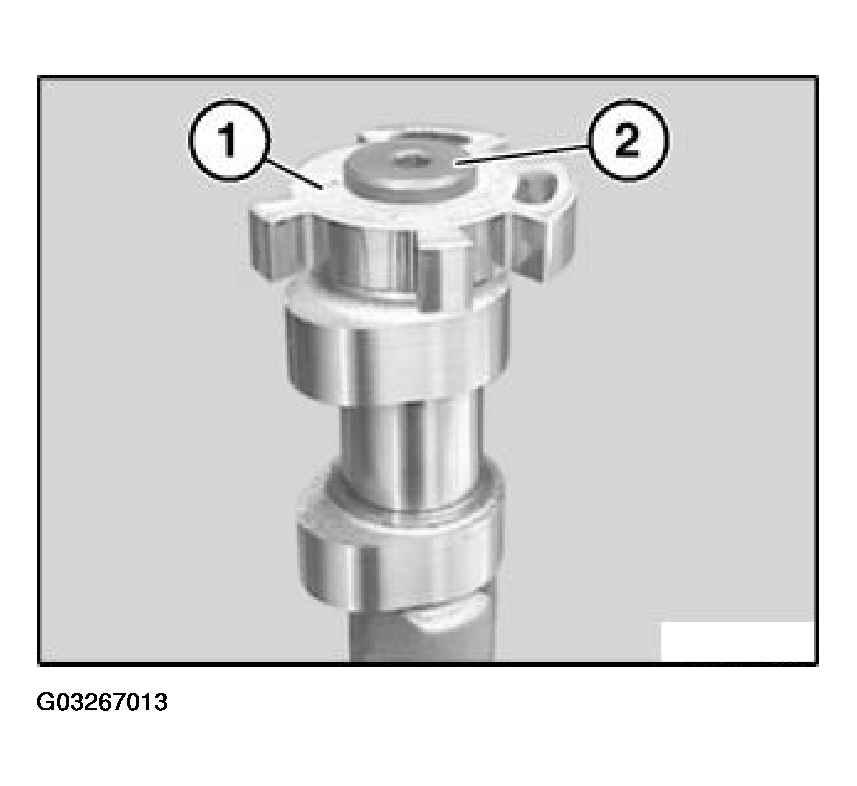

Fig 8: Removing Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.
