51 16 060 Removing And Installing/Replacing Interior Rearview Mirror (With Rain Sensor)

Version with remote control for central locking:

If necessary, disconnect negative lead from battery. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Version with compass:

Check compass function if replacing or after disconnecting interior mirror plug connection or battery. If necessary, calibrate compass in interior rearview mirror. Refer to 51 16 ... CALIBRATING COMPASS IN INTERIOR REARVIEW MIRROR .

Security version:

Rain sensor is not installed, cable connection is tied back in roofliner.

IMPORTANT: Do not snap out the interior rearview mirror towards the rear (windscreen breakage).
Do not under any circumstances twist the mirror foot when removing. Twisting the mirror off the mirror mount will damage the rear catch. If the rear catch is damaged, the mirror will be loose when installed and must be replaced.

Press on end caps (1) and at same time press them apart; this releases clip connection of both caps (1).

Fig 1: Pressing On End Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Twist mirror (1) at an angle towards front and right/top. Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

Fig 2: Twisting Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Twist mirror (1) at an angle towards front and left/top. Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

Fig 3: Detaching Engagement Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

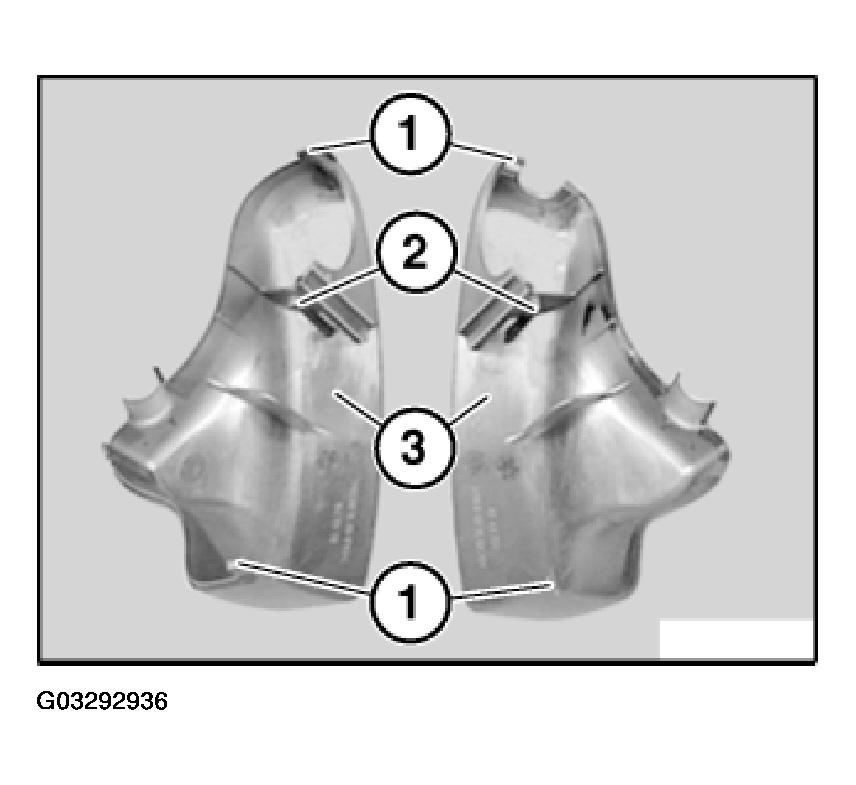

Fig 4: Identifying Clips And Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 5: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pay attention to cable guide (2) for rain sensor.

Security version:

Rain sensor is not installed, cable connection is tied back in roofliner.

IMPORTANT: Do not remove interior mirror (1) towards rear or by twisting (risk of damage).
When snapping out, do not damage control unit (3) for rain sensor.

Security version:

Rain sensor is not installed.

Snap out interior mirror (1) from mirror mount (2) towards front by striking with ball of thumb and remove.

Fig 6: Removing Interior Mirror From Mirror Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Twist mirror foot by approx. 45° and fit to mirror mount.
Turn mirror foot until it engages on mirror base.

Fig 7: Installing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace with version with remote control for central locking:

Initialize all transmitters (ignition keys), refer to Owner's Handbook.
