51 47 491 Removing And Installing/Replacing Rear Underbody Protection

NOTE: Illustration shows one example only. Differences in detail may be possible in the different engine variants.

Release screws (1).

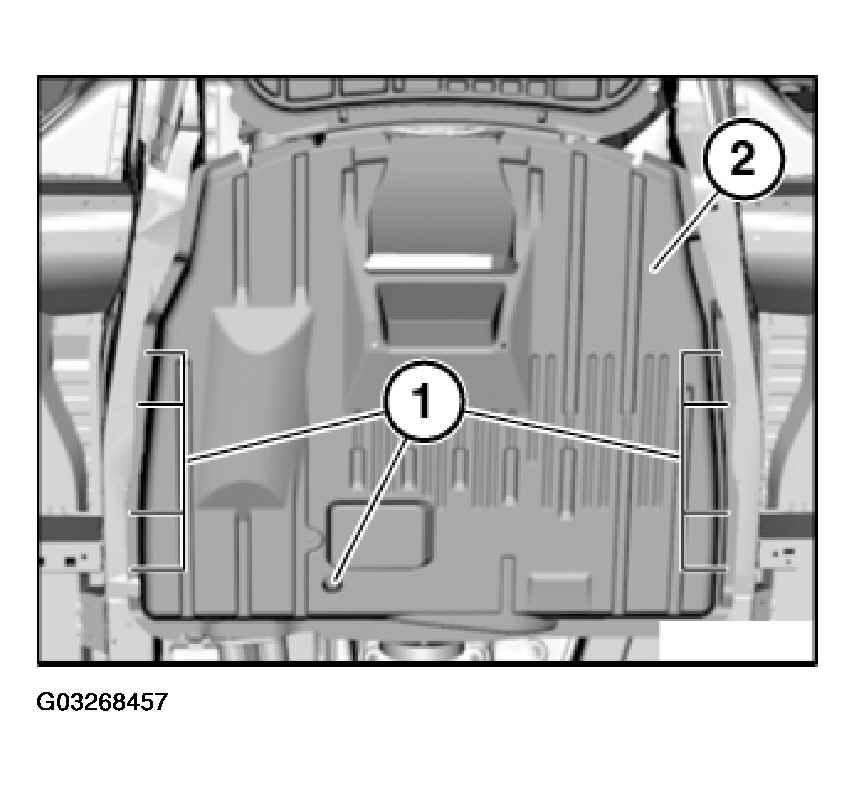

Fig 1: Removing Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove underbody protection (2).

Installation:

Ensure correct seating.

Center underbody protection (2) and tighten down all screws.
