Minimum Set: Measuring & Testing Equipment

In conjunction with: 61 1 459

Note: For diagnosis and troubleshooting at engine management system (VVT)

Engine: N42, N62

Storage location: Q206

SI number: 2 02 01(695)

Order number: 12 7 310

V-adapter lead, 10-pin

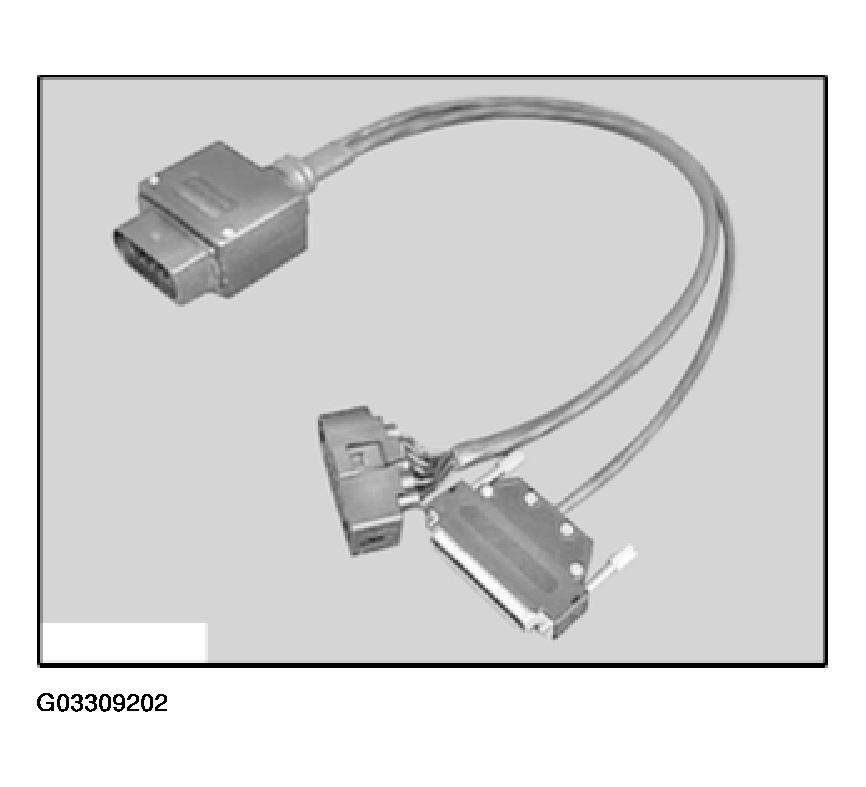

Fig 1: Identifying V-Adapter Lead, 10-Pin

Courtesy of BMW OF NORTH AMERICA, INC.
