12 32 501 Replacing controller switch for alternator (N62)

Necessary preliminary tasks:

Notes on disconnecting and connecting battery. See Instructions for disconnecting and connecting battery .
Disconnect battery negative lead.
Remove alternator. See GENERATOR 4.4L (N62) .

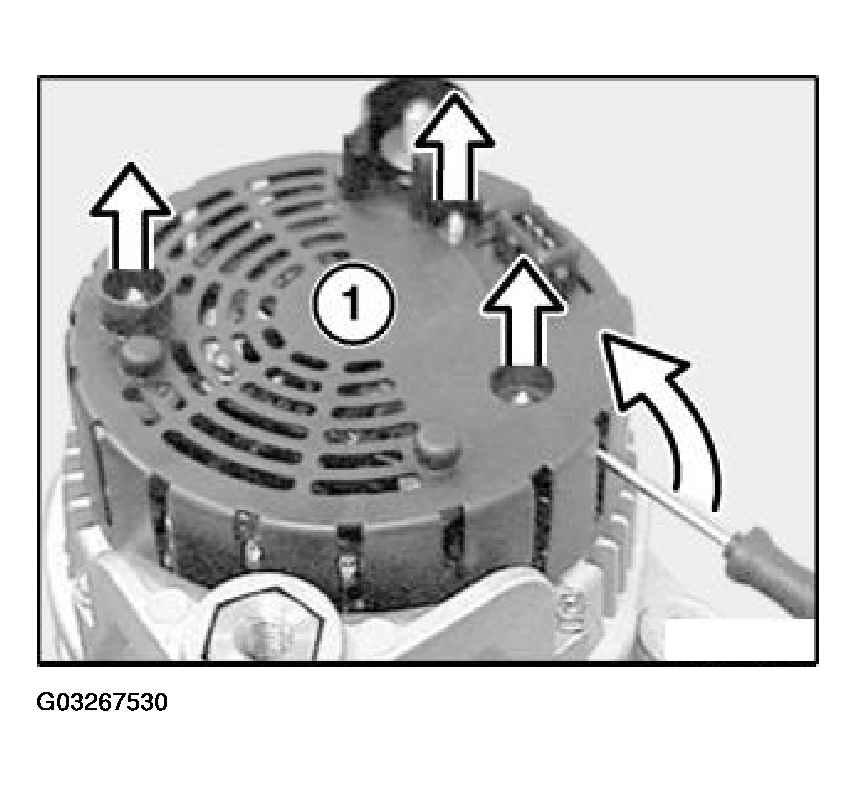

Carefully insert a screwdriver between cover (1) and threaded pin.

Lever out cover (1) towards top.

Fig 1: Inserting Screwdriver Between Cover And Threaded Pin

Courtesy of BMW OF NORTH AMERICA, INC.

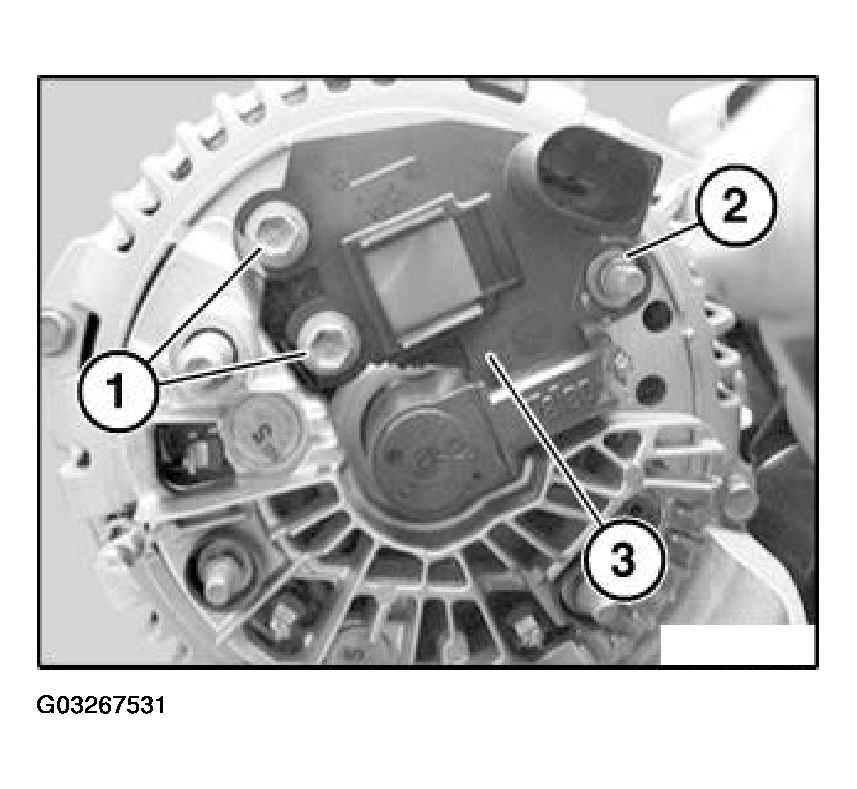

Release contact screws (1).

Unscrew nut (2).

Remove controller switch (3).

Fig 2: Removing Controller Switch

Courtesy of BMW OF NORTH AMERICA, INC.

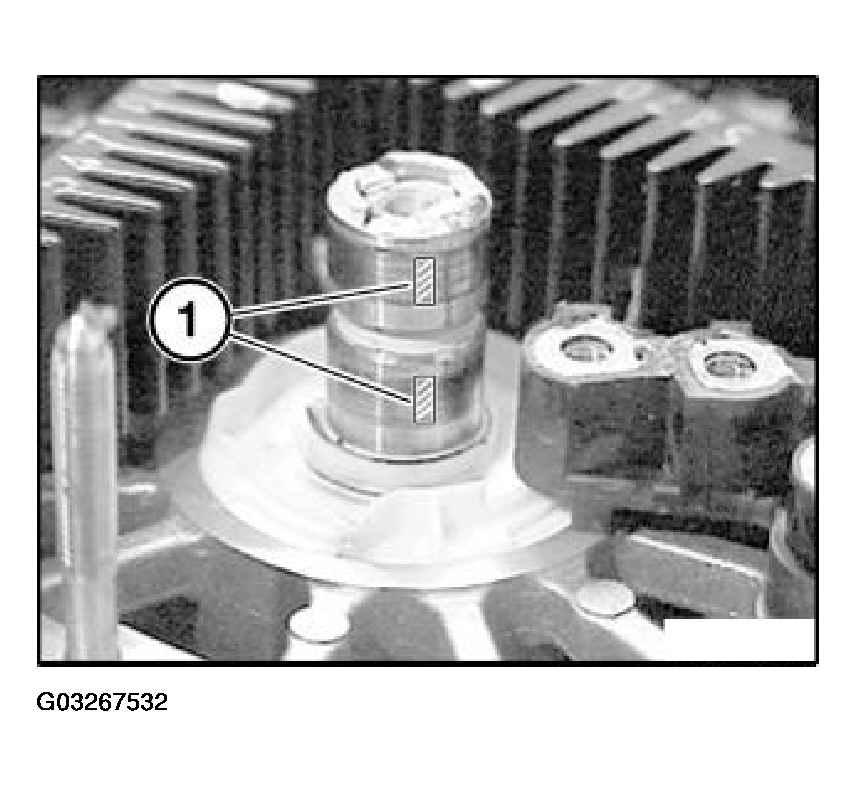

Check contact surfaces (1) of slip rings for wear and recondition if necessary.

Fig 3: Checking Contact Surfaces Of Slip Rings

Courtesy of BMW OF NORTH AMERICA, INC.

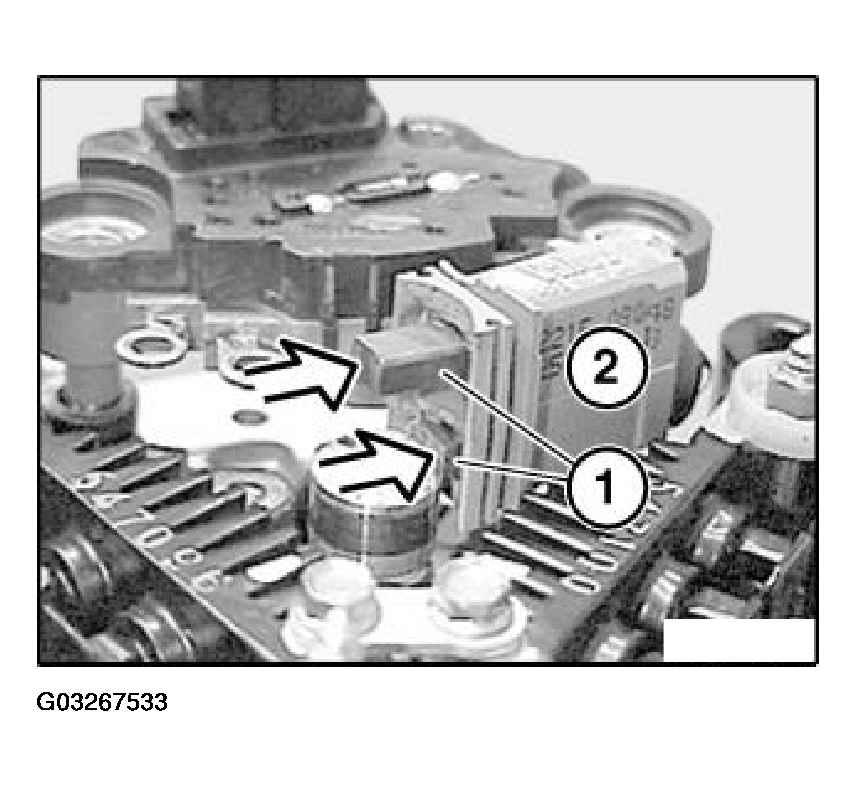

Press in carbon brushes (1) of controller switch (2) in direction of arrow.

Install controller switch (2).

Fig 4: Installing Controller Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and tighten down contact screws (1).

Insert nut (2) and tighten down.

Fig 5: Tightening Down Contact Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble alternator.

Assemble engine.

Carry out alternator test with diagnostic system.
