12 52 005 Removing and installing/replacing integrated supply module (N62)

Necessary preliminary tasks:

• Read out fault memory of DME control unit
• Switch off ignition
• Follow instructions for disconnecting and connecting

  Disconnect battery

• Remove microfilter housing cover. See CABIN AIR FILTER .

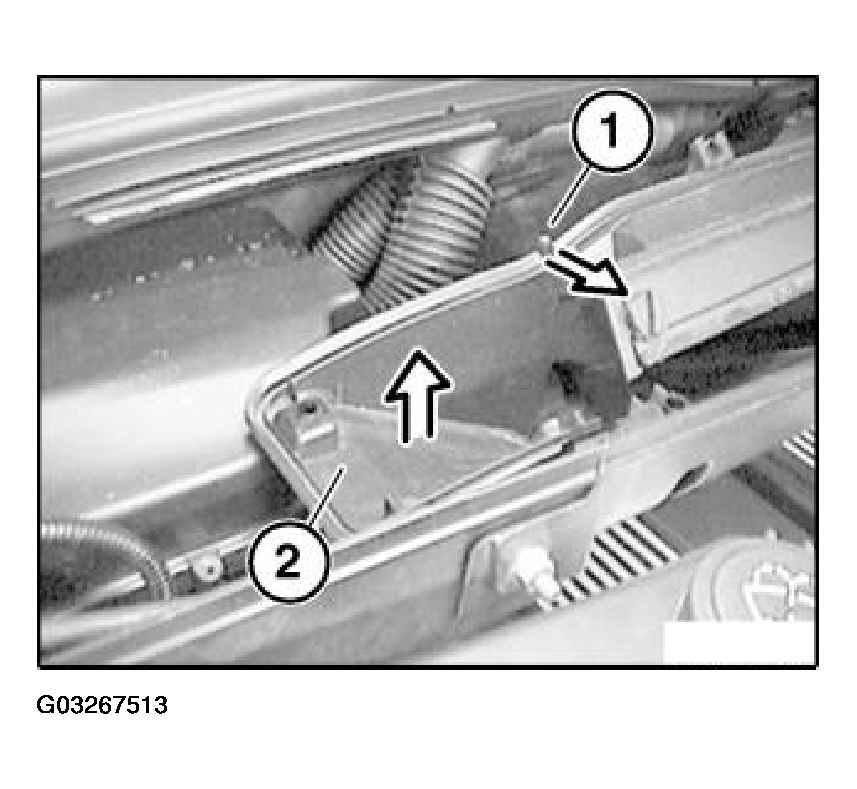

Release lock (1).

Remove air funnel (2) towards top.

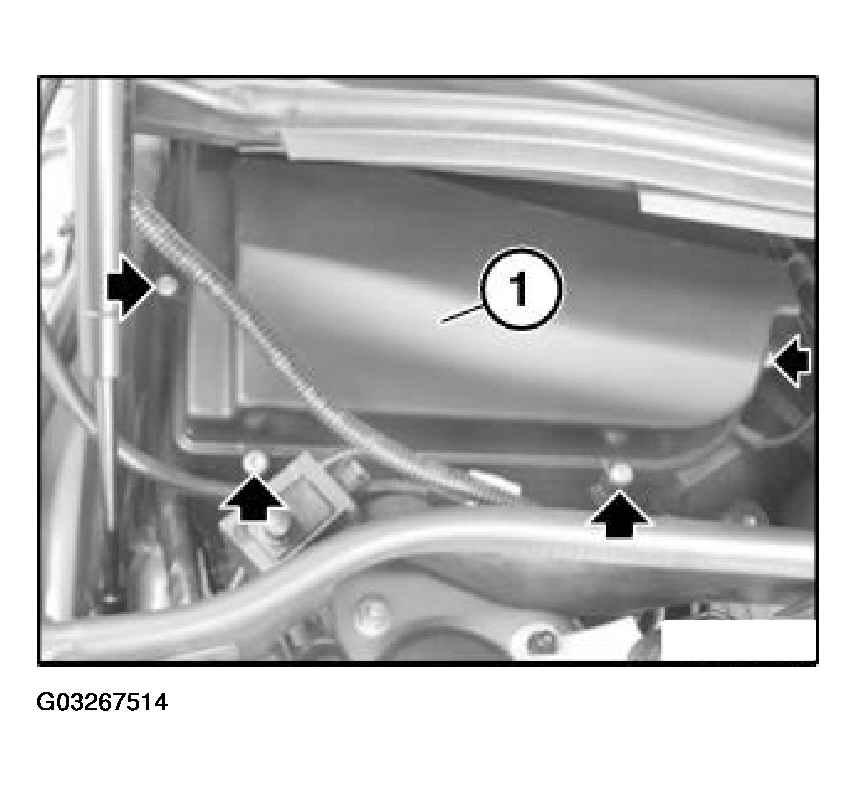

Release screws, remove cover (1).

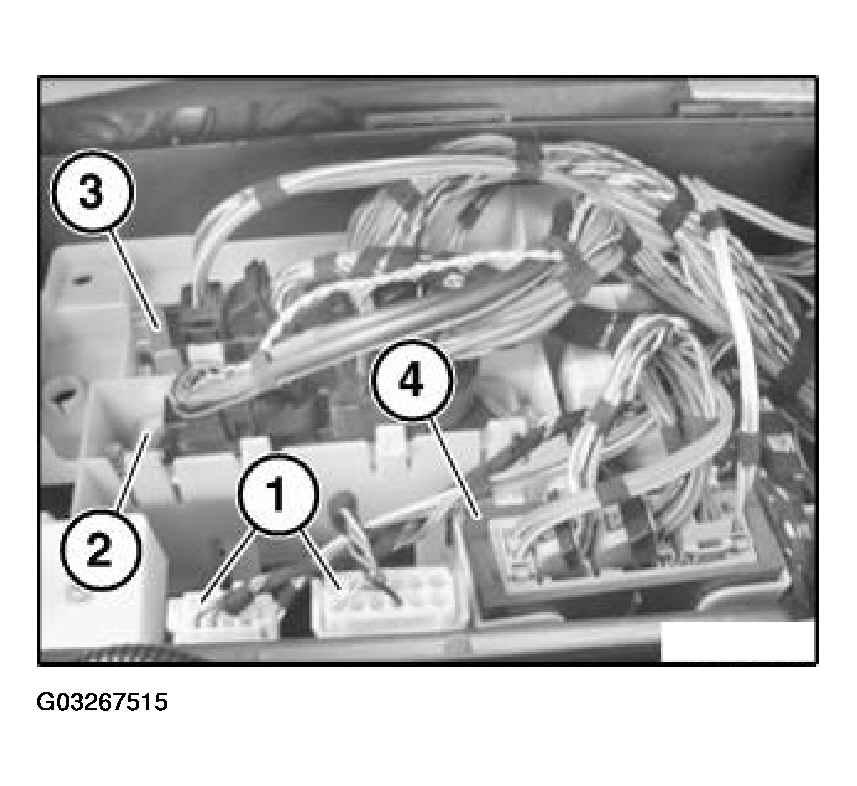

Unlock and detach plug connections on supply module (4).

Raise supply module (4), unlock plug connections on underside and detach.

Remove supply module (4).

Now clear the fault memory.
