12 90 100 Replacing fan for electronics box (N62)

Necessary preliminary tasks:

IMPORTANT: Perform following instructions for removing and installing electronic control units.

Release lock (1).

Remove air funnel (2) towards top.

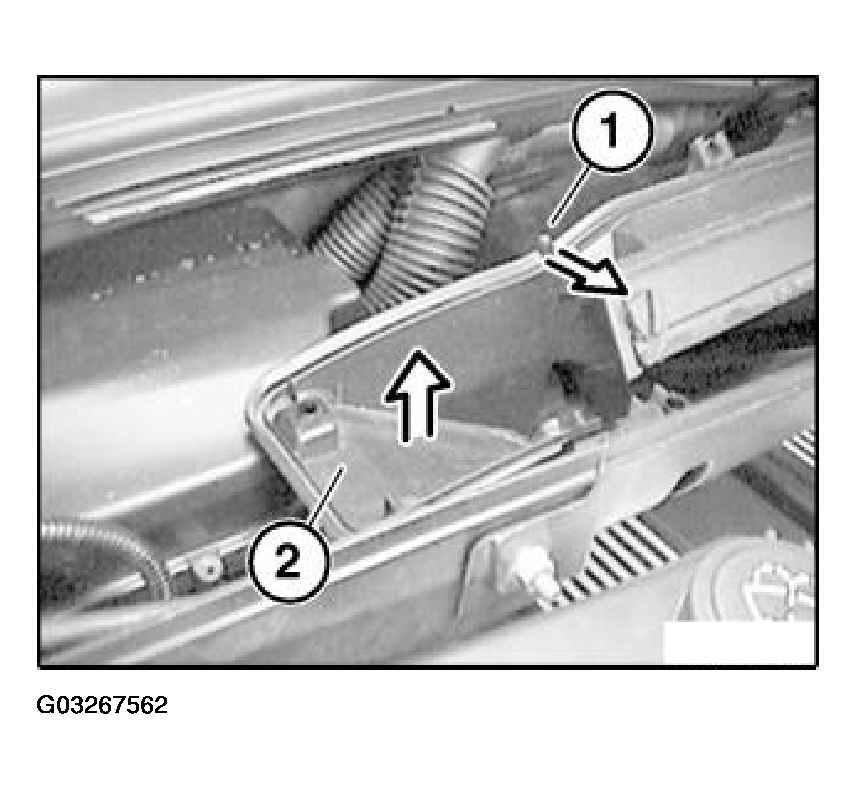

Fig 1: Removing Air Funnel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws, remove cover (1).

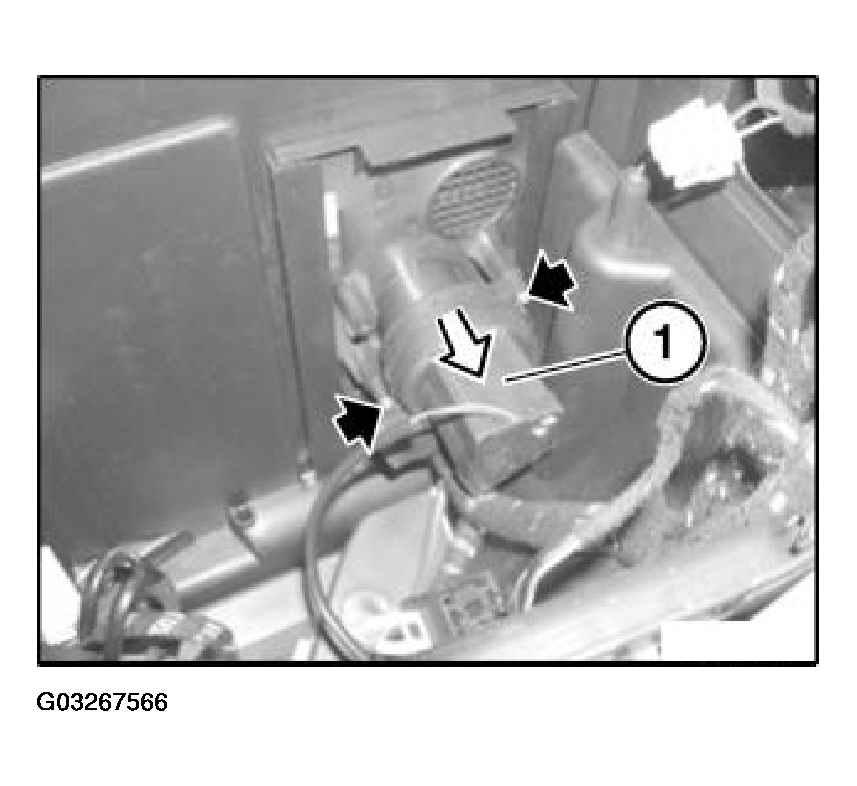

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach plug connections (1).

Unlock and detach plug connections on Valvetronic control unit (2).

Unlock and detach plug connections on DME control unit (3).

Unlock and detach plug connections on supply module (4).

Raise supply module (4), unlock plug connections on underside and detach.

Remove control units.

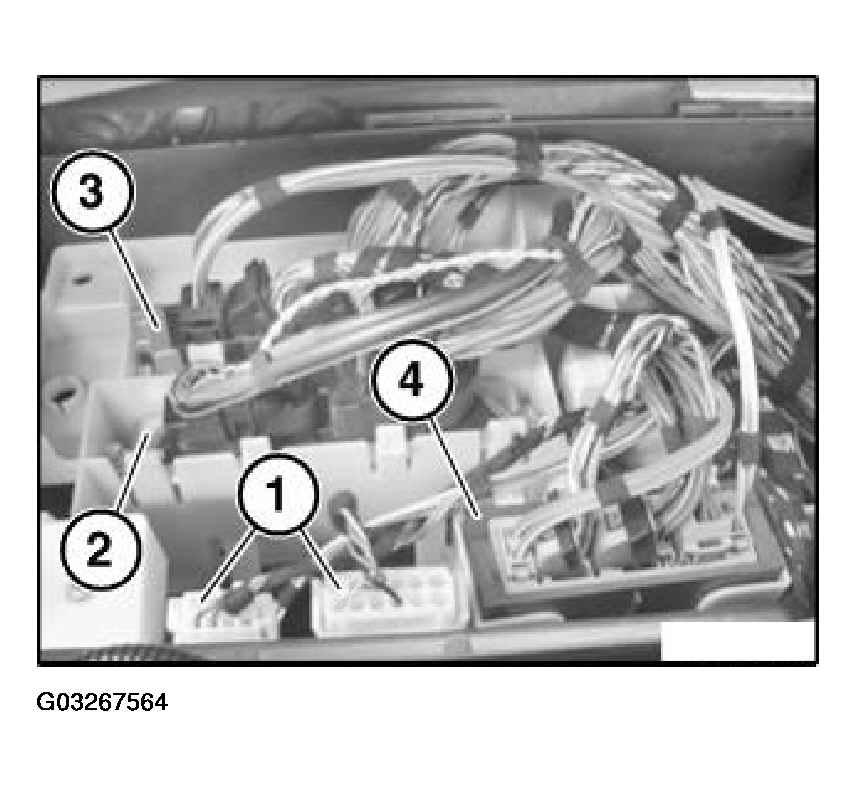

Fig 3: Removing Control Units

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach relay (1).

Unlock and detach plug connection (2).

Release screws and lift out control unit carrier (3).

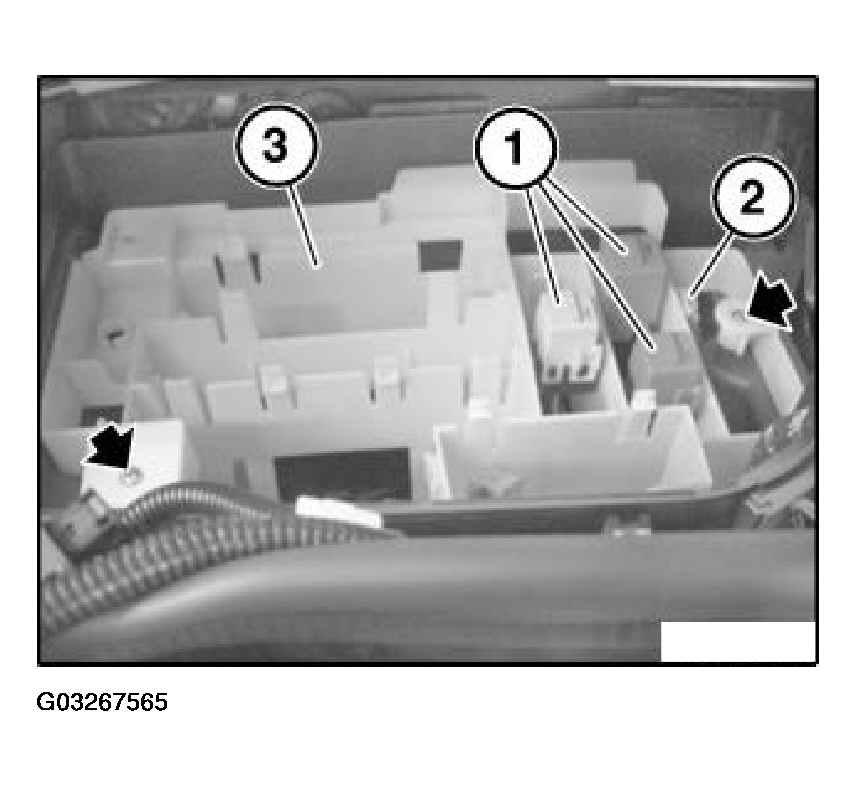

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove fan (1) for electronics box.

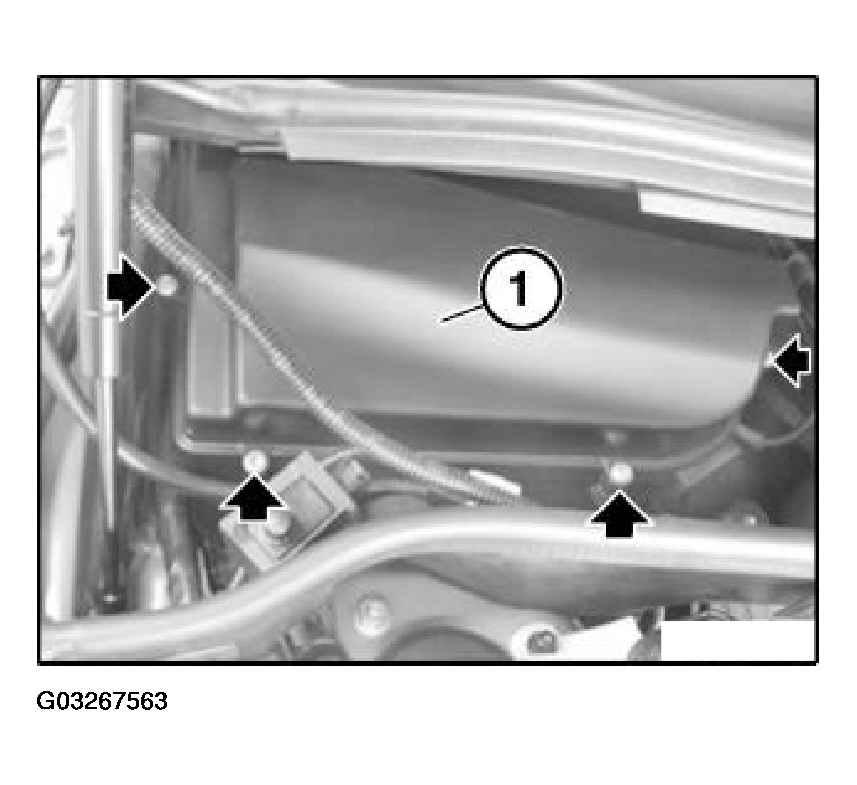

Fig 5: Removing Fan For Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Now clear the fault memory.
