ON BOARD COMPUTER (High Version)

The familiar BC V on board computer functions are carried over to the X5. The BC processing is a function of the IKE and can be displayed in the cluster matrix and the MID or if Nav system equipped, on the BMBT LCD screen.

The following BC functions are available for display:

• Time/Date
• Arrival Time
• Range
• Two Timers for programming parked car ventilation
• Distance
• Stop Watch
• Average fuel consumption
• Limit
• Average Speed

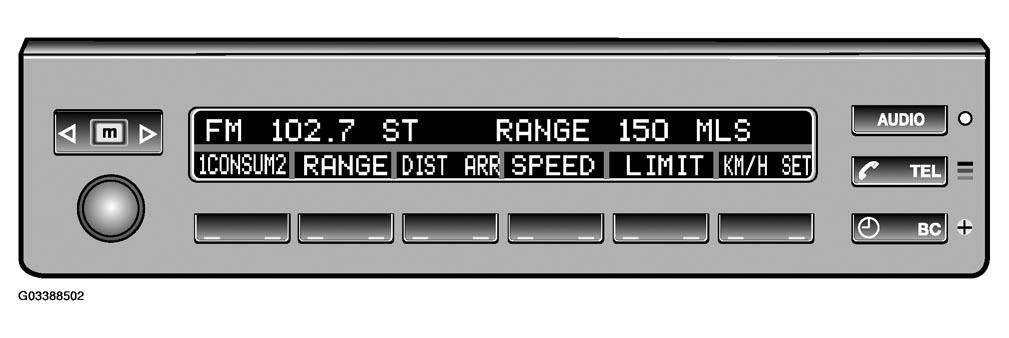

  Fig 1: Identifying BC Functions Available For Display

  Courtesy of BMW OF NORTH AMERICA, INC.

Operation and programming of the BC is carried out with the MID as on the E38.

The menu displays change as each function is called up for programming/resetting purposes. this includes the changeover functions for the clock, mileage and MPG displays.

BC functions can be displayed in the cluster matrix by pressing the turn signal lever as in the past.

The cluster displays can be programmed for number of displays and order of appearance.
