Heated Steering Wheel: Notes

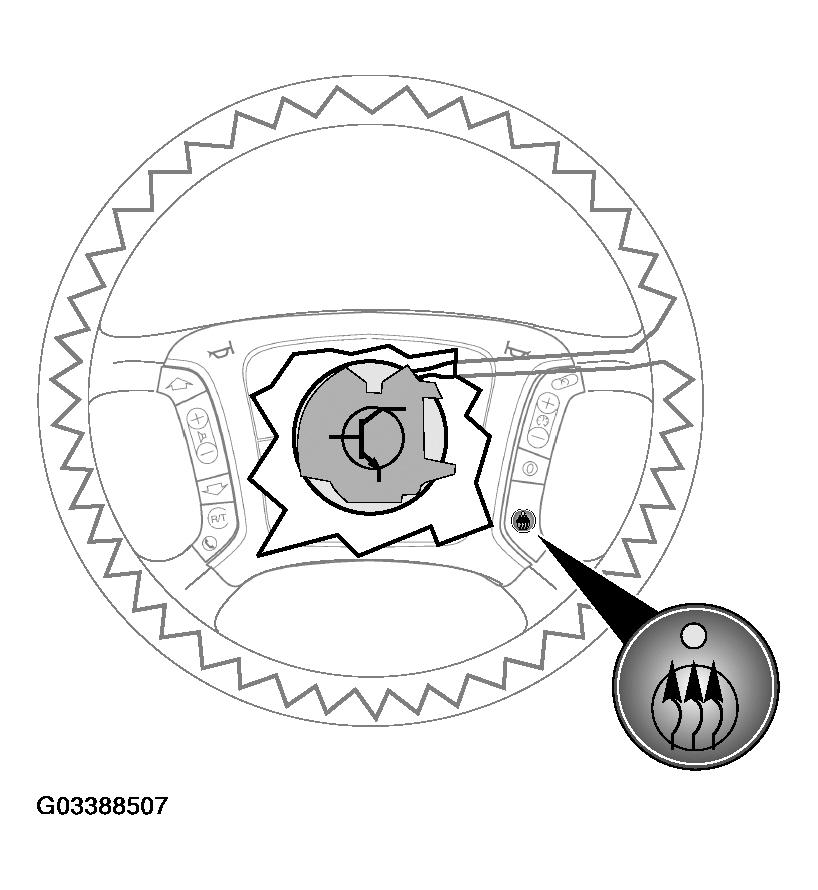

The heated steering wheel system consists of the following components:
- A heating filament integrated into the steering wheel cover.
- An NTC temperature sensor, in the filament circuit, to regulate the heating current.
- A push button mounted in the right side MFL key pad.
- The control module located behind the air bag assembly.
- Slip ring assembly for the power and ground supply.
