Base BC/Instrument Cluster Test Functions: Notes
In addition to the fault memory and diagnostic link, the base instrument cluster contains a series of test functions that can be accessed to check various functions and values. The test functions are displayed in the mileage LCD block. There are a total of 21 test functions. The test functions are similar to those of previous Board computers and contain similar tests.
- Tests 1 & 2 are always unlocked.
- Tests 3 -21 are only accessible after unlocking the test function. Test 19 is the unlock function for accessing the displays.

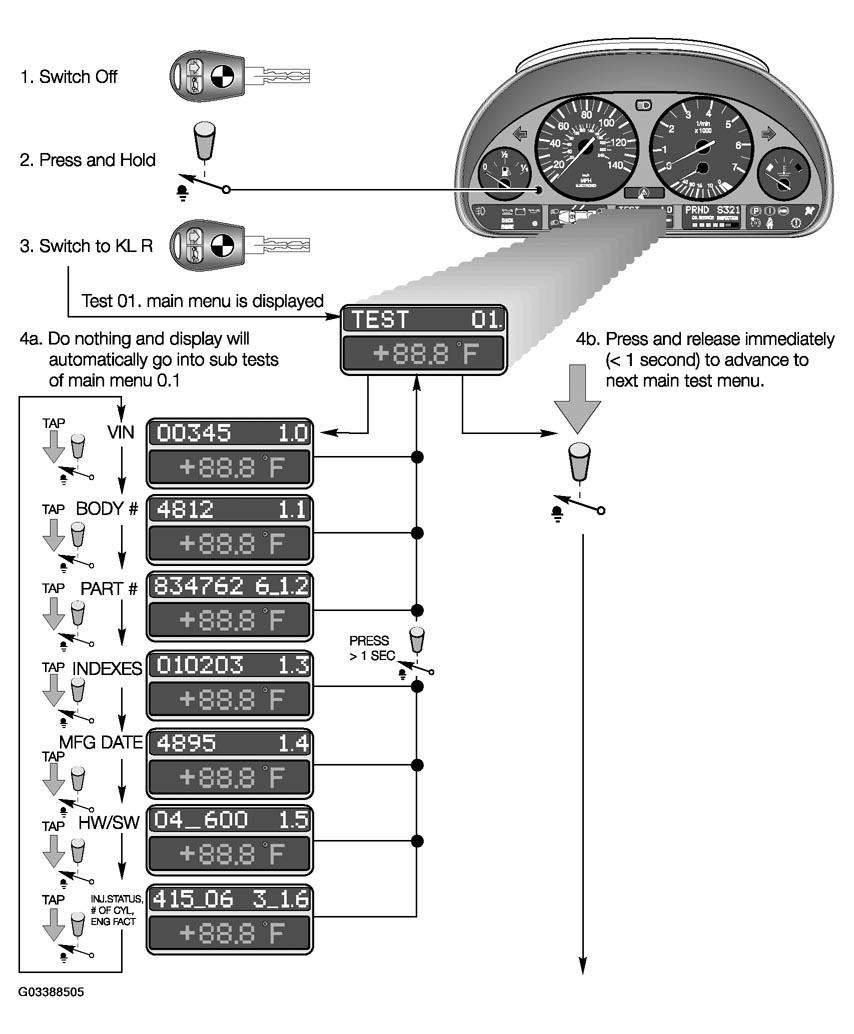

Scrolling through the numbered test functions is achieved by pressing the instrument cluster button when the test number is displayed.
- (press button) = test #2
- 1.0 (press button) = sub-test #1
This signals the BC to display the sub-tests of the displayed main test menu or continue on to the next main 62530009 test menu.
TEST 19. - LOCK/UNLOCK
Sub-Tests
L-ON...
L-OFF 19.0 =

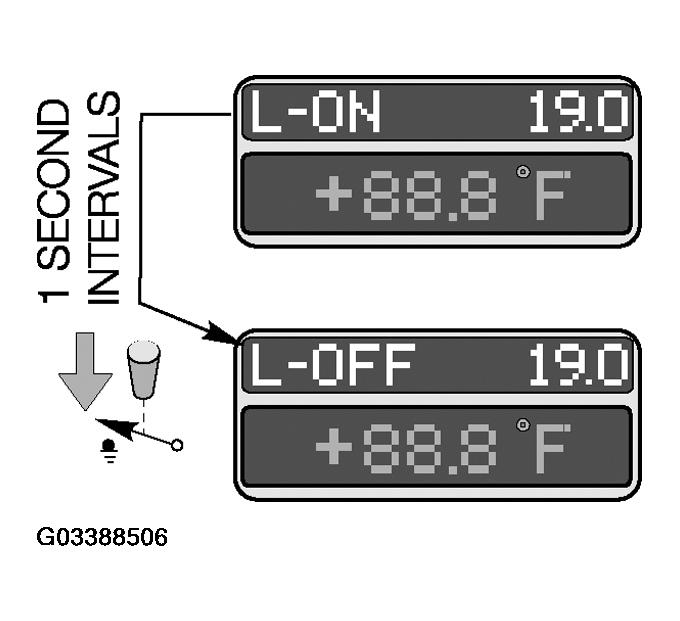

Display changes from "L-ON" to "L-OFF" every second. To unlock test functions, press the cluster button immediately when it changes to "L-OFF". Tests are automatically locked when exiting test functions.
The test functions of both cluster/BC systems are the same except where noted
