51 13 115 Removing And Installing/Replacing Cowl Panel Cover

Remove both windshield wiper arms. Refer to 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS .

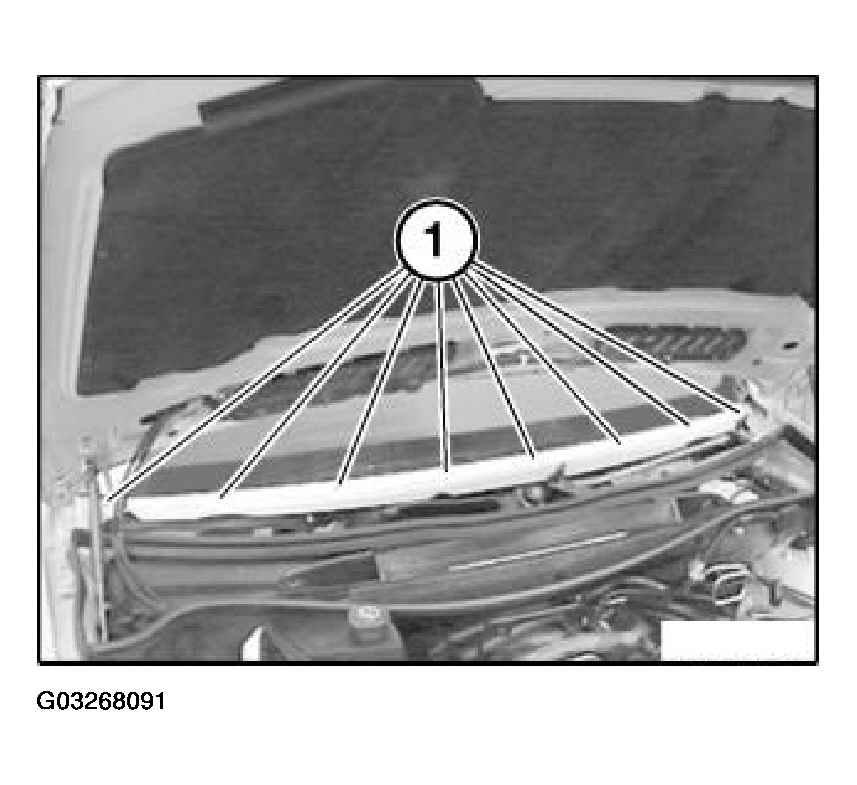

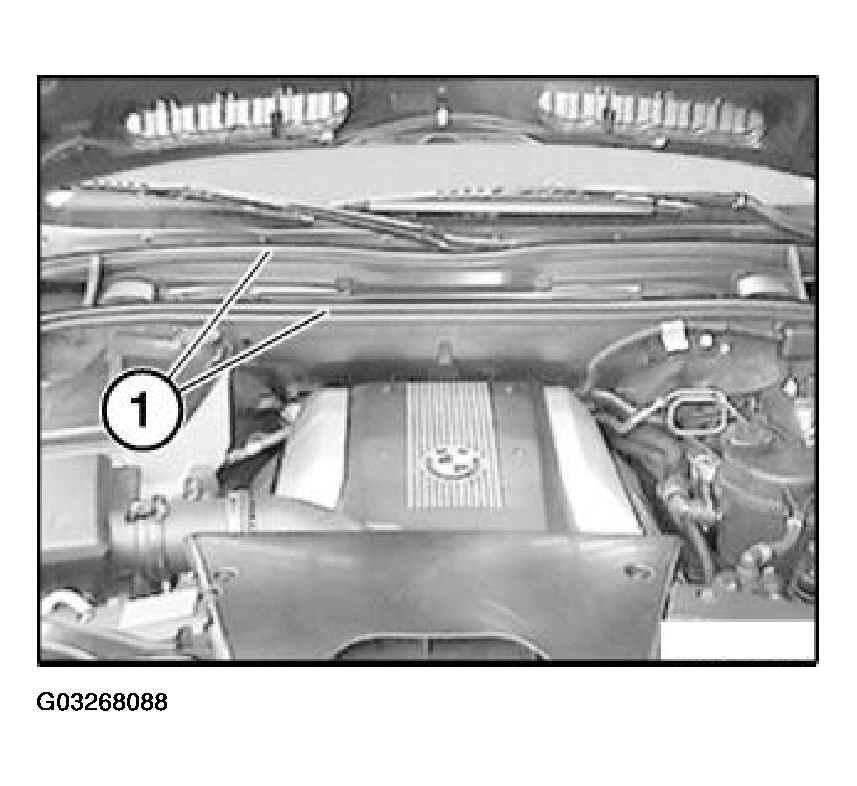

Detach seals (1).

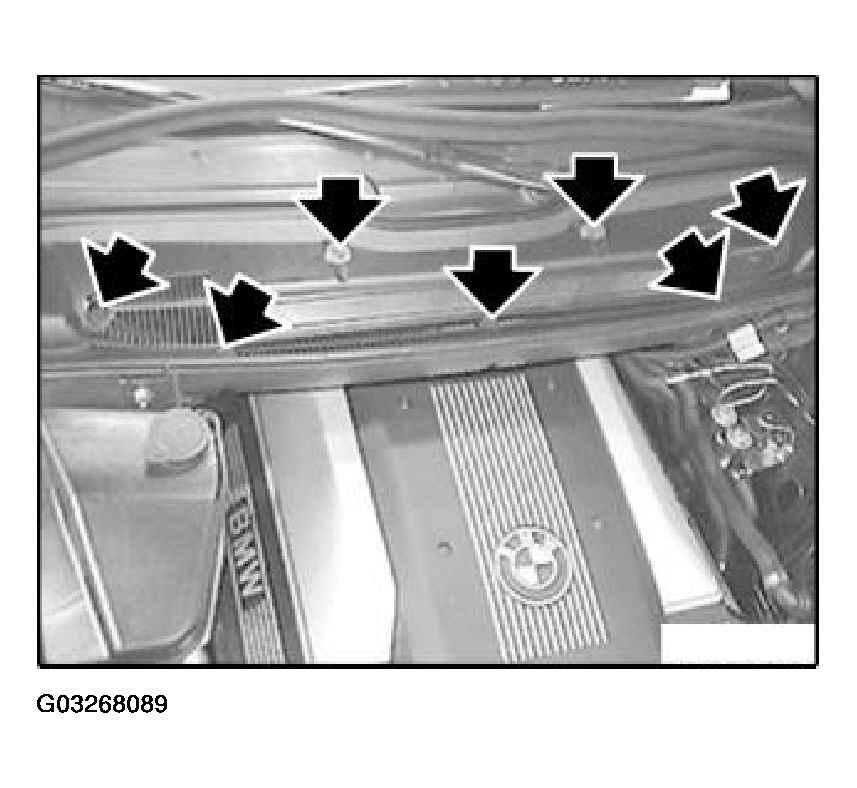

Turn tommy bar through 90° and lift off cover.

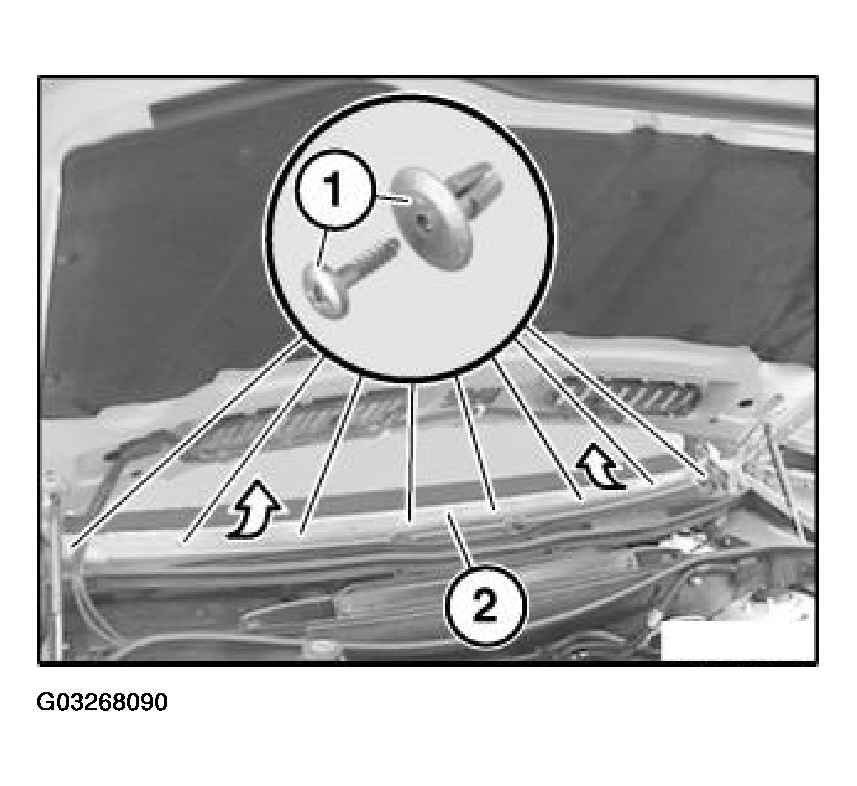

Release expansion rivets (1).

Remove cover (2) for cowl panel.

Installation:

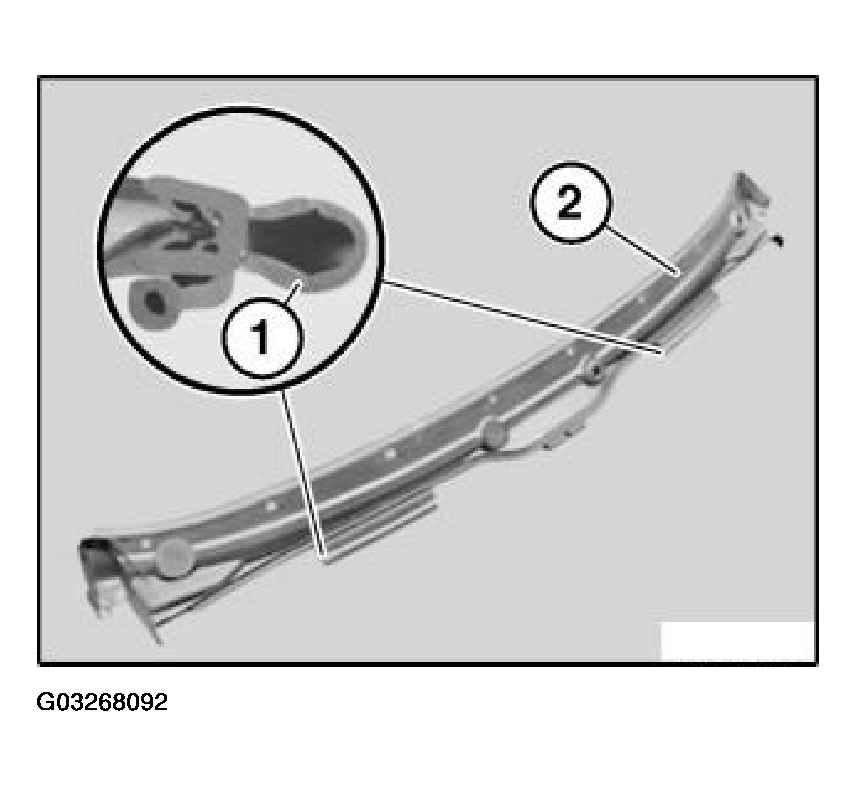

1. If necessary, replace defective grommets (1).
   Fig 4: Identifying Grommets

   Courtesy of BMW OF NORTH AMERICA, INC.

Only replacement:

If necessary, detach seals (1) from cover (2).
