51 34 160 Removing And Installing/Replacing Cover (Anti-Trapping Protection) On Door Window Frame (Rear Door), Inside Left Or Right

Carefully lever out clip (1) and lever out trim (2) in rear area.

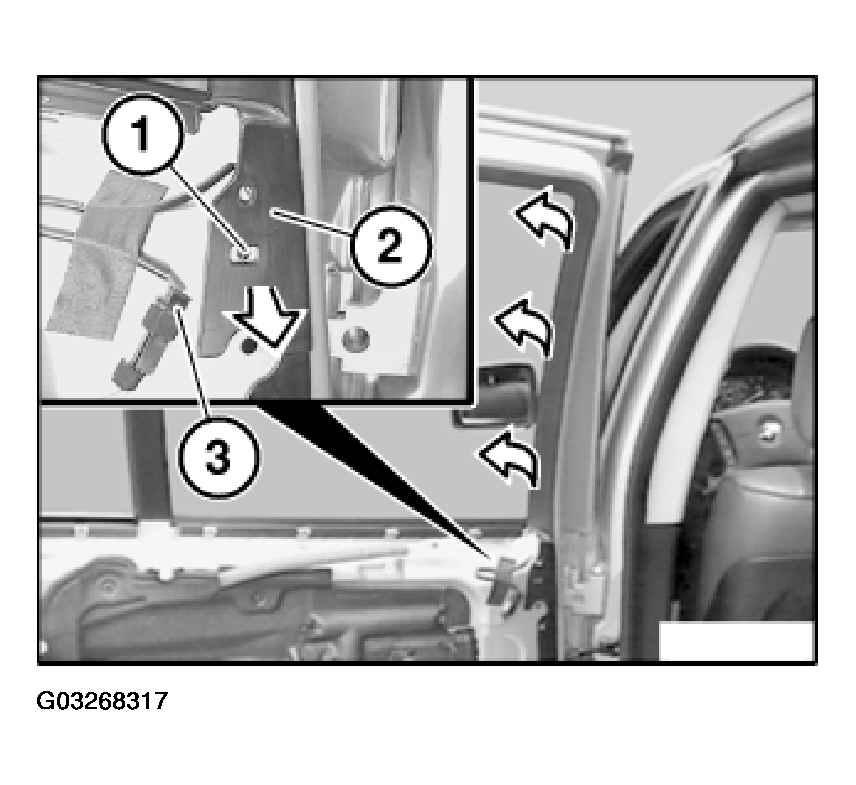

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Carefully lever out clip (1).

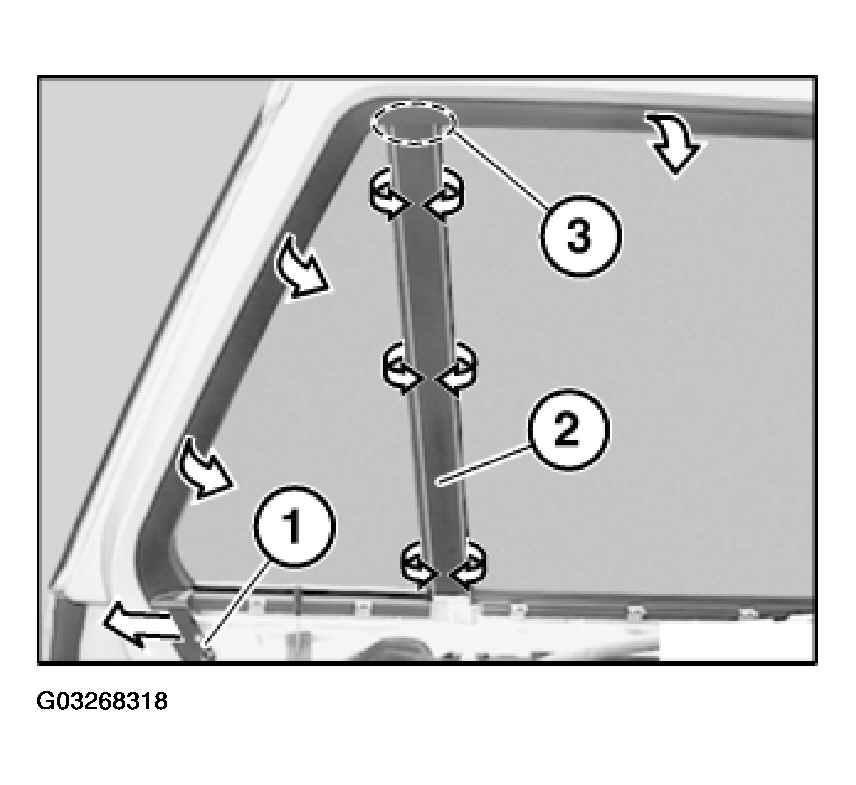

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out cover (1) from fixed door window.

NOTE: Do not tear off cover (1) in area (2).

Lift out and remove cover (2).

Installation:

If applicable, replace defective clips (1).

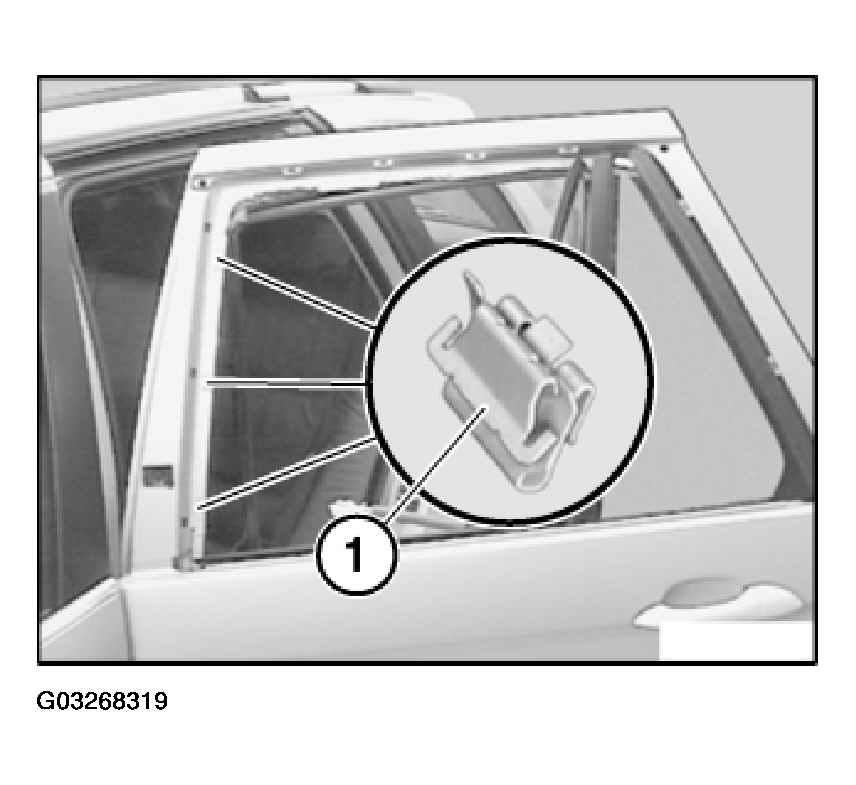

Fig 3: Replacing Defective Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connection (1) of cover (2) must not be damaged.

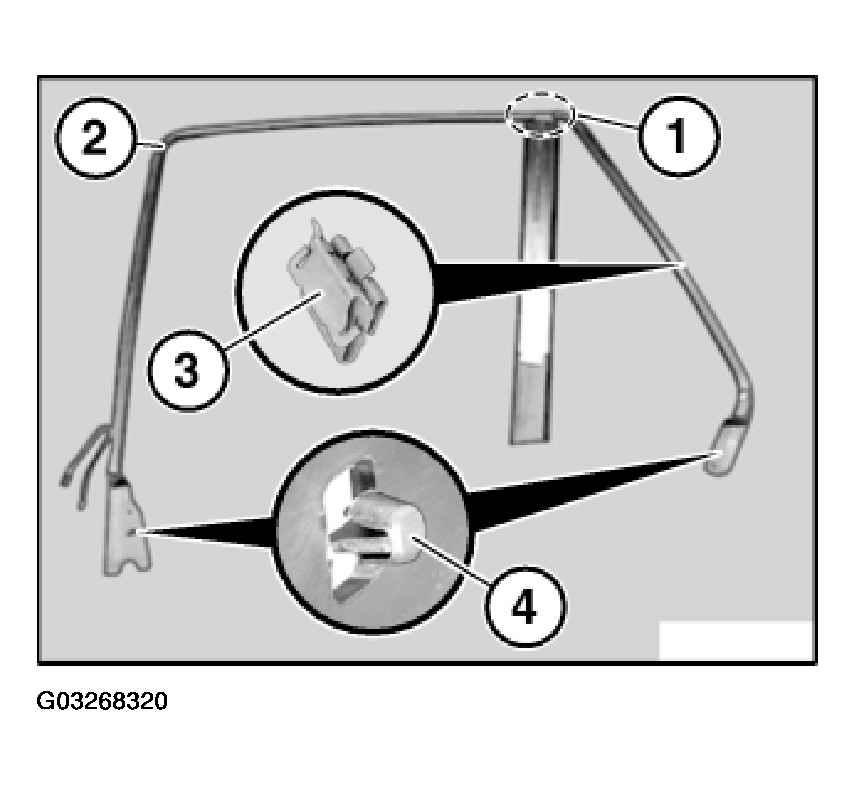

Fig 4: Identifying Connection Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace faulty clip (3).

Clips (4) must not be damaged.

Carry out function check.
