51 49 090 Removing And Installing/Replacing Trim For Rear Lid Lower Section

Remove cover for loading sill. Refer to 51 49 080 REMOVING AND INSTALLING/REPLACING COVER FOR LOADING SILL (ON REAR LID LOWER SECTION) .

Remove insert for trim on rear lid lower section. Refer to 51 49 085 REMOVING AND INSTALLING/REPLACING INSERT FOR TRIM ON REAR LID LOWER SECTION .

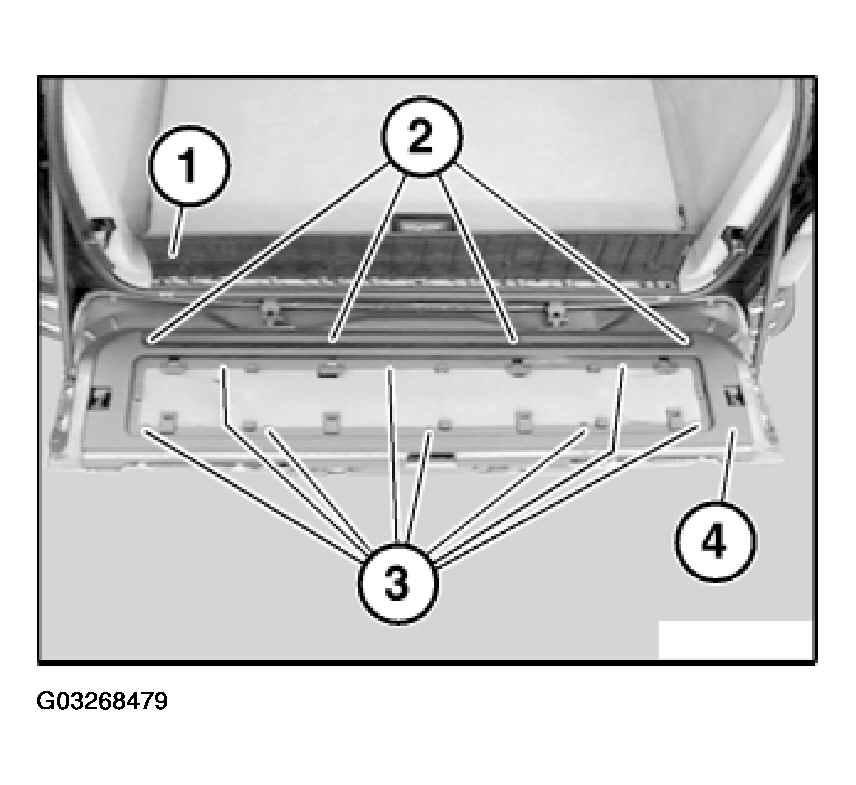

Raise cover (1) and release screws (2).

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3) and remove trim (4).

Installation:

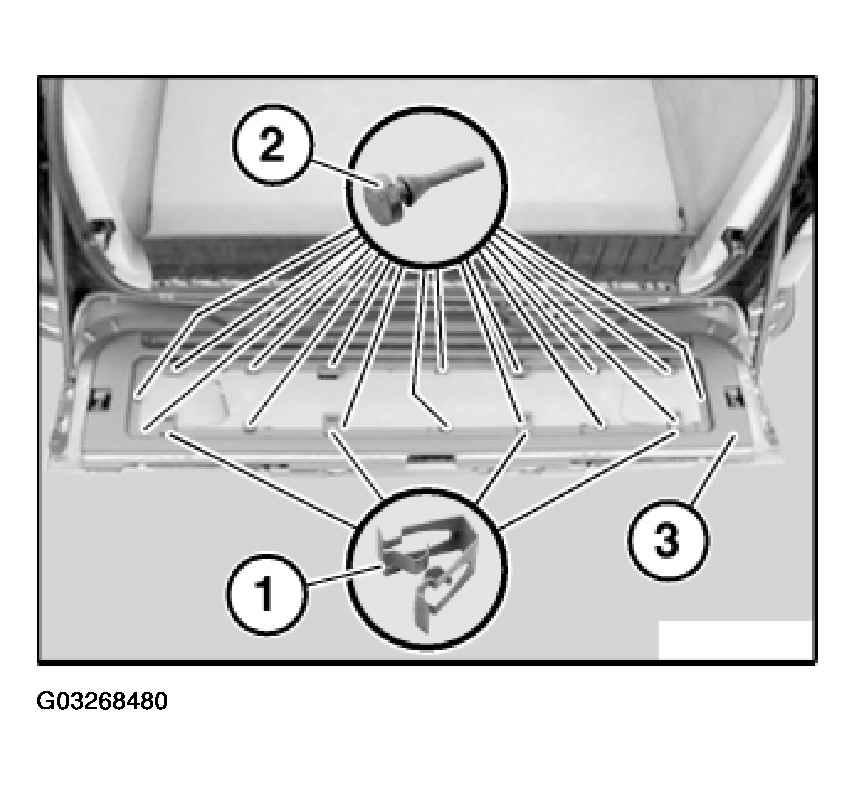

If necessary, replace faulty retainers (1) and rubber parts (2) on rear lid lower section (3).

Fig 2: Replacing Faulty Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

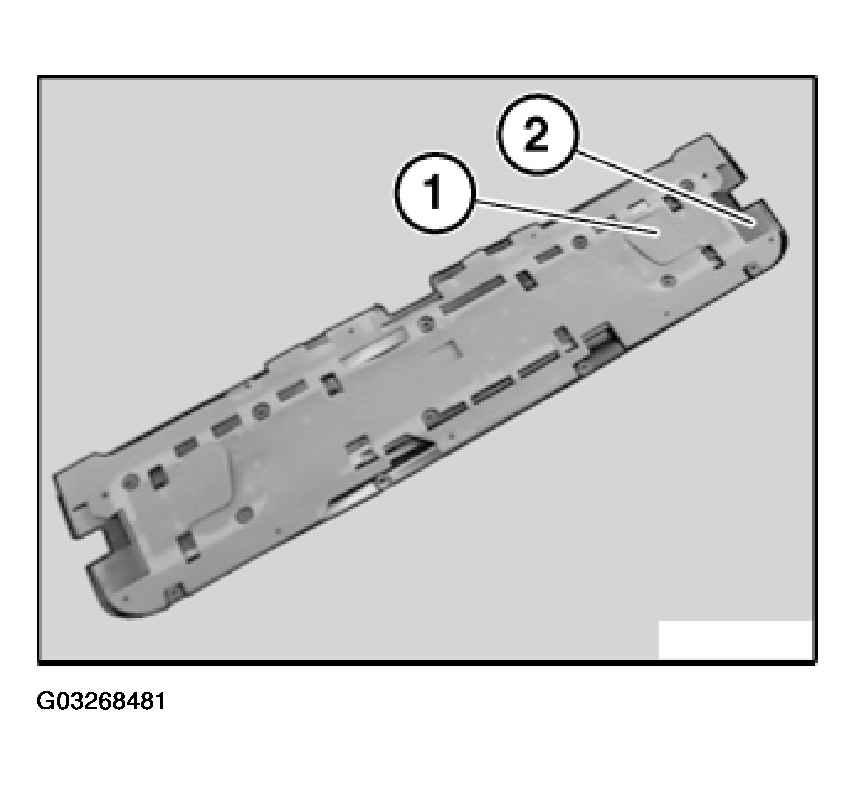

Remove insulating mat (1) from old trim (2) and insert in new trim.

Fig 3: Removing Insulating Mat From Old Trim

Courtesy of BMW OF NORTH AMERICA, INC.
