51 49 085 Removing And Installing/Replacing Insert For Trim On Rear Lid Lower Section

Open rear lid lower section.

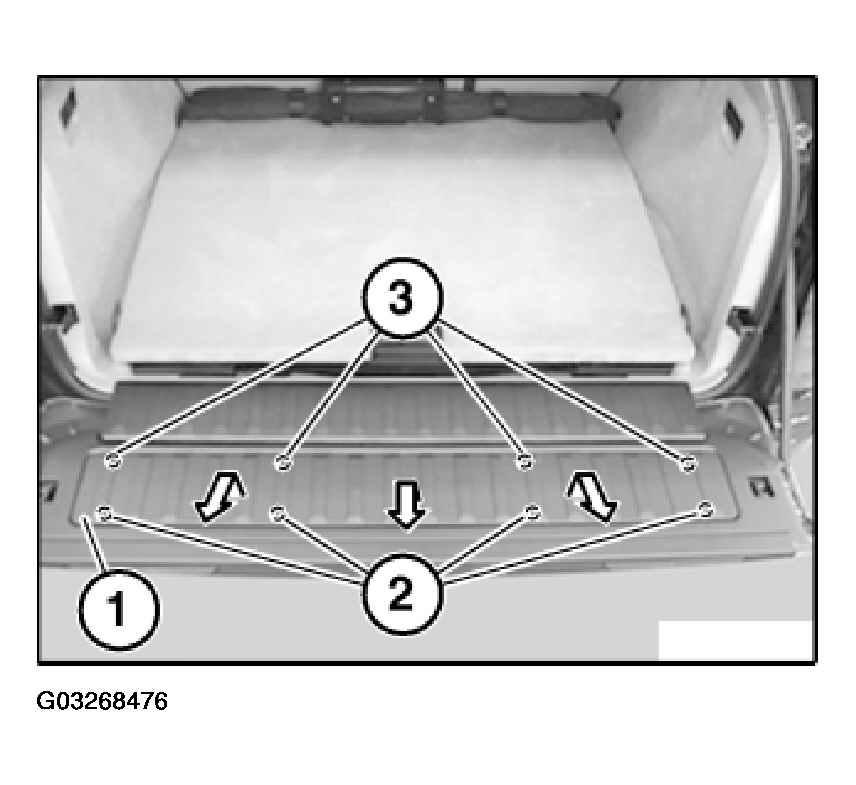

Lever rear insert (1) upwards out of retainers (2) and pull towards rear out of guides (3).

Fig 1: Removing Rear Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

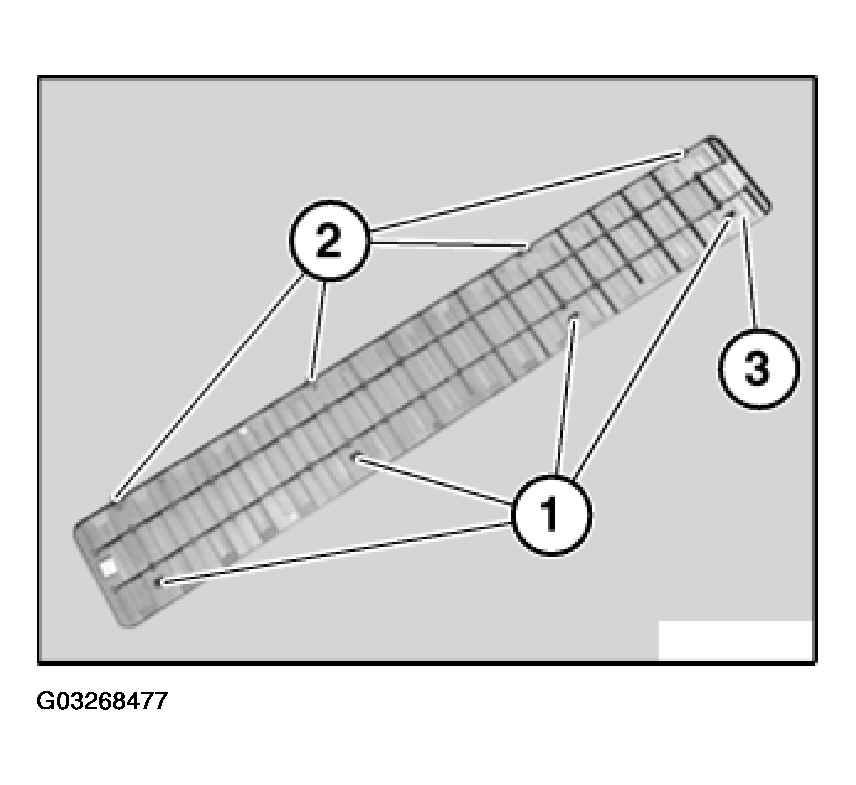

Mounts (1) and guides (2) on insert (3) must not be damaged.

Fig 2: Identifying Mounts And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

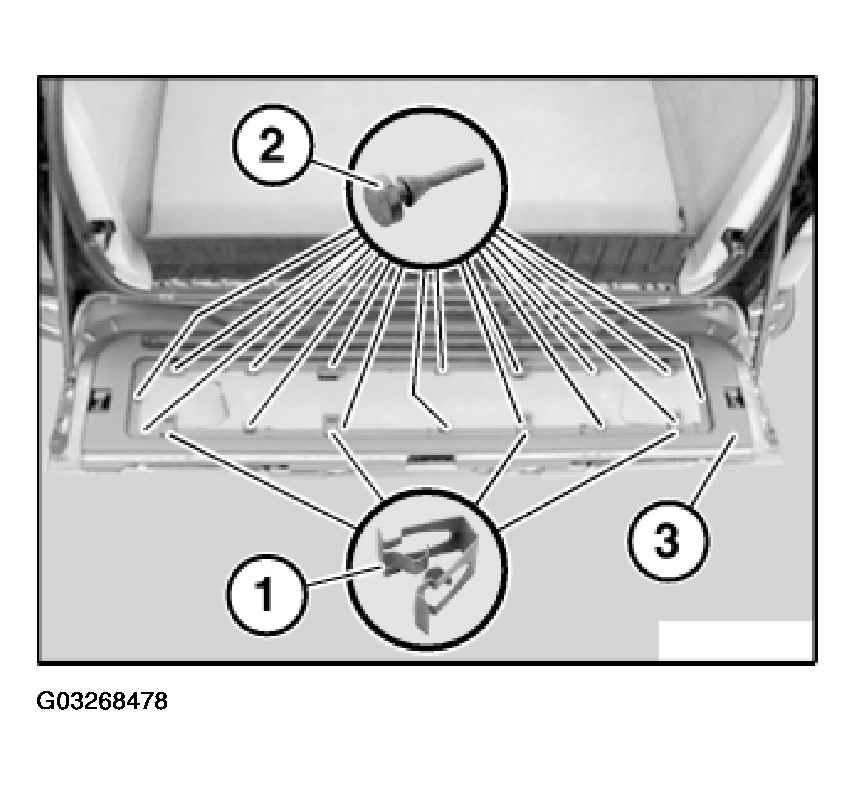

If necessary, replace faulty retainers (1) and rubber parts (2) on rear lid lower section (3).

Fig 3: Replacing Faulty Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
