51 49 080 Removing And Installing/Replacing Cover For Loading Sill (On Rear Lid Lower Section)

Remove rear reflector (in rear lid lower section). Refer to 63 14 120 REMOVING AND INSTALLING/REPLACING REAR REFLECTOR (ON REAR LID LOWER SECTION) .

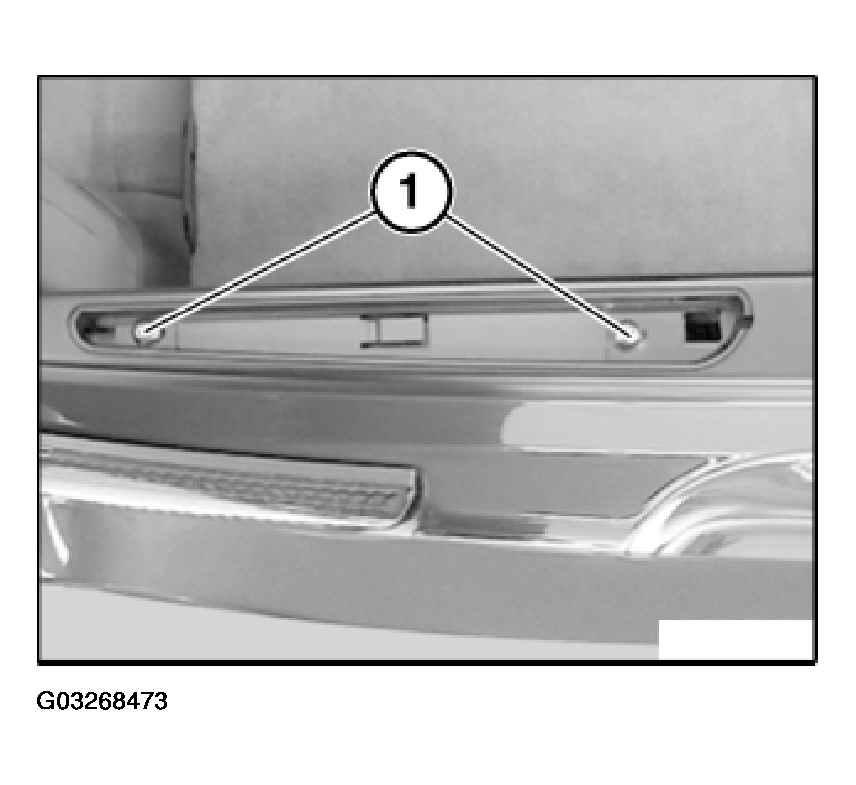

Release left/right screw (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

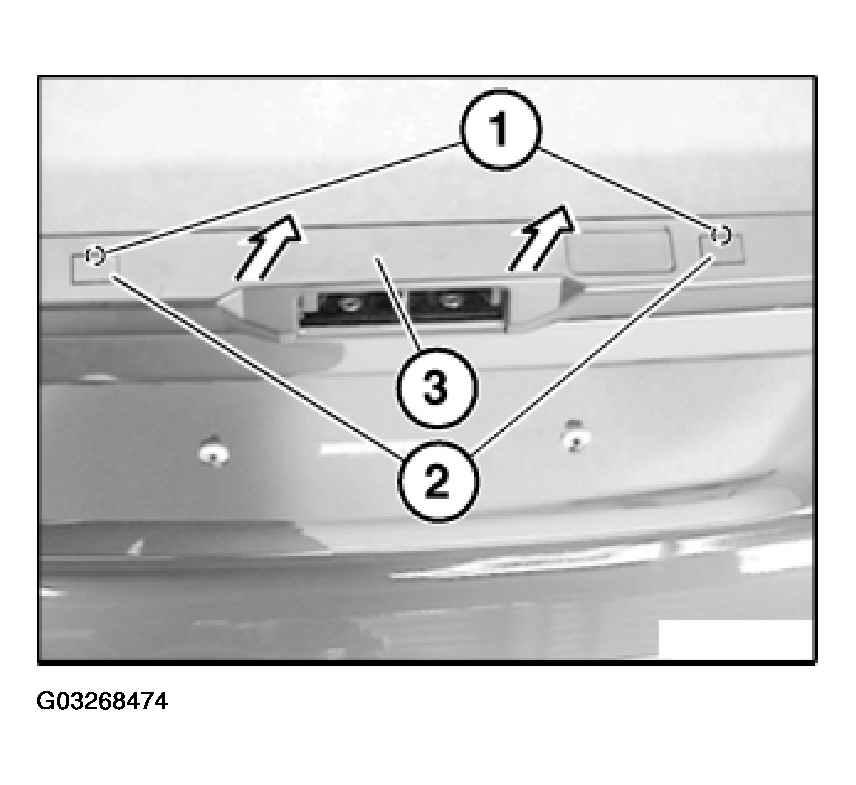

Using a small screwdriver, lever out covers (2) by means of chamfers (1) and release screw underneath.

Fig 2: Removing Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover (3) for loading sill.

Installation:

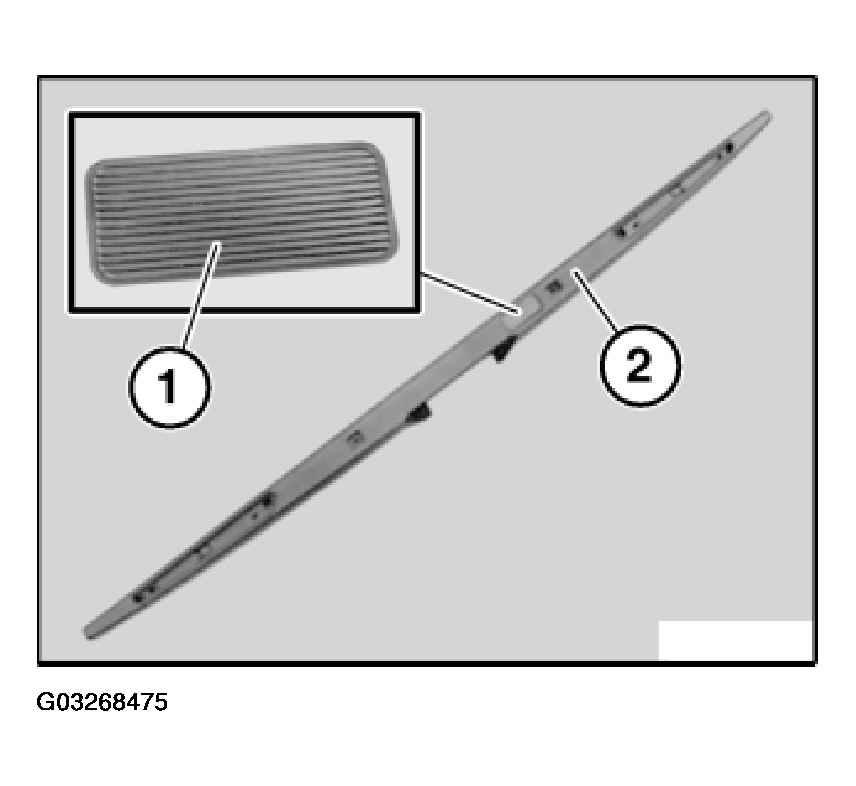

If necessary, replace faulty cover (1) for button on cover (2) for loading sill.

Fig 3: Replacing Faulty Cover

Courtesy of BMW OF NORTH AMERICA, INC.
