51 16... Replacing button for armrest in center console

Insert feeler gauge (1) between pushbutton (2) and housing (3).

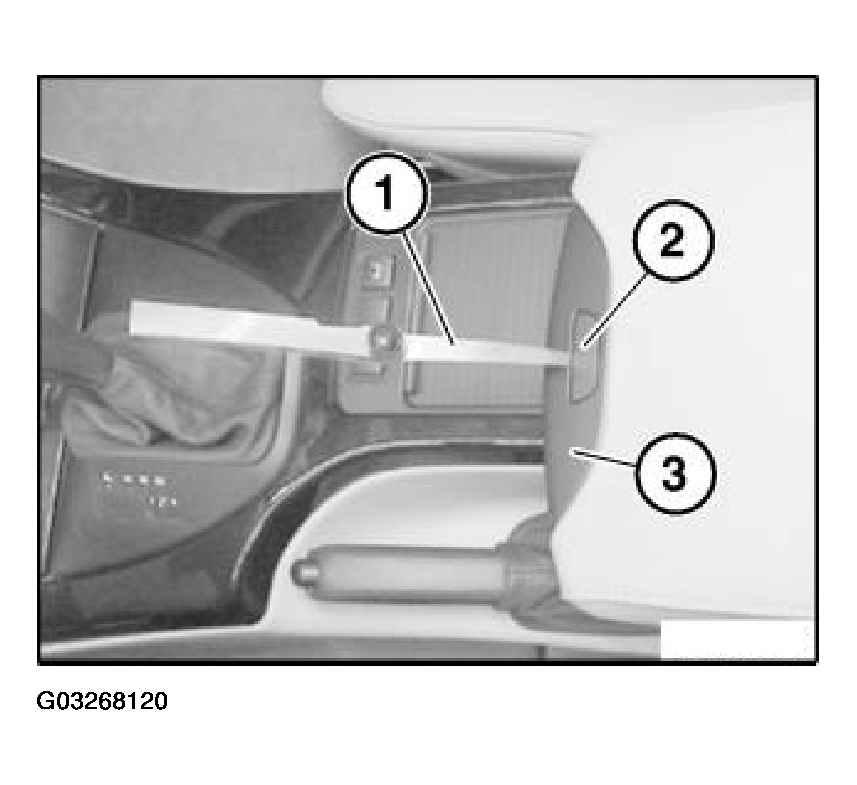

Fig 1: Inserting Feeler Gauge Between Pushbutton And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Press feeler gauge (1) downwards until pushbutton (2) snaps out upwards slightly.

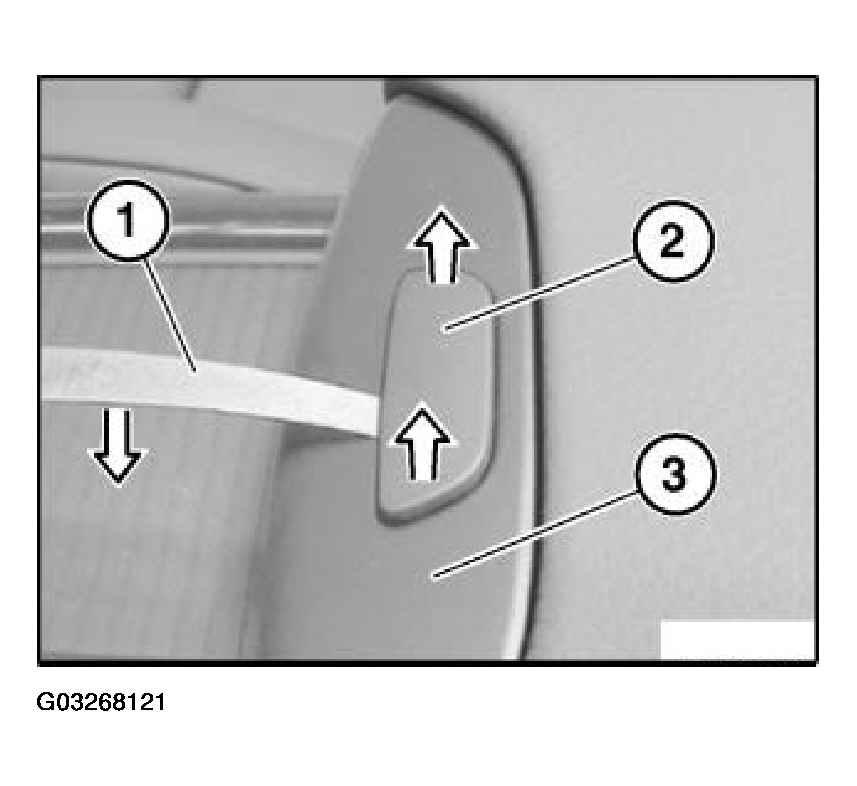

Fig 2: Removing Pushbutton

Courtesy of BMW OF NORTH AMERICA, INC.

Remove feeler gauge (1).

Lever out pushbutton (2) sideways and remove from housing (3).

Installation:

Pushbutton (1) must not be damaged.

If necessary, vacuum out duct (2).

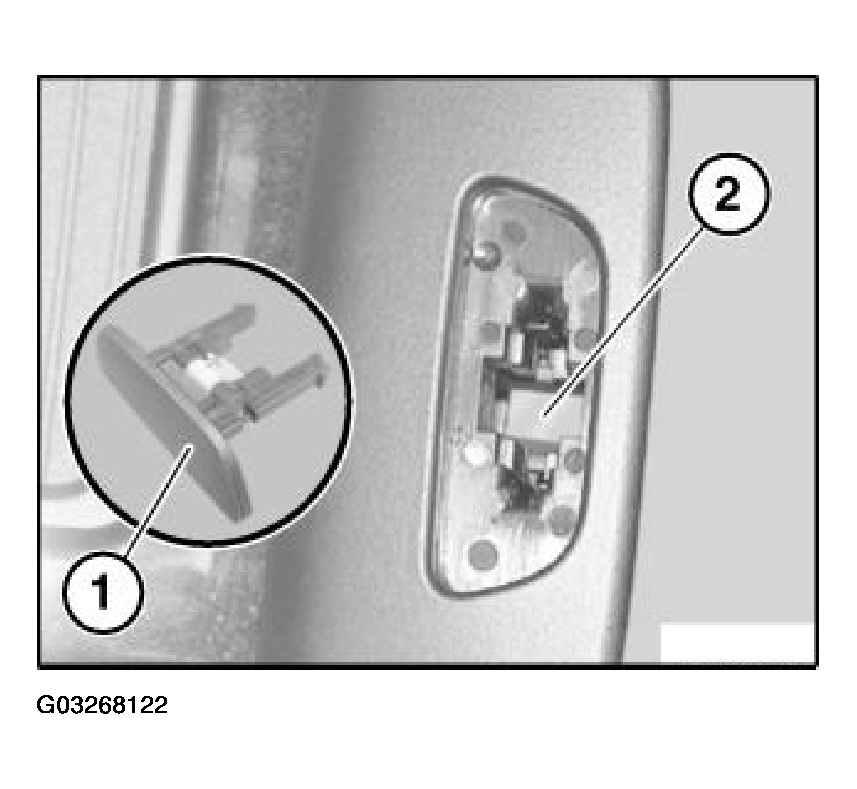

Fig 3: Identifying Duct

Courtesy of BMW OF NORTH AMERICA, INC.
