51 16 220 Replacing Trims For Center Console

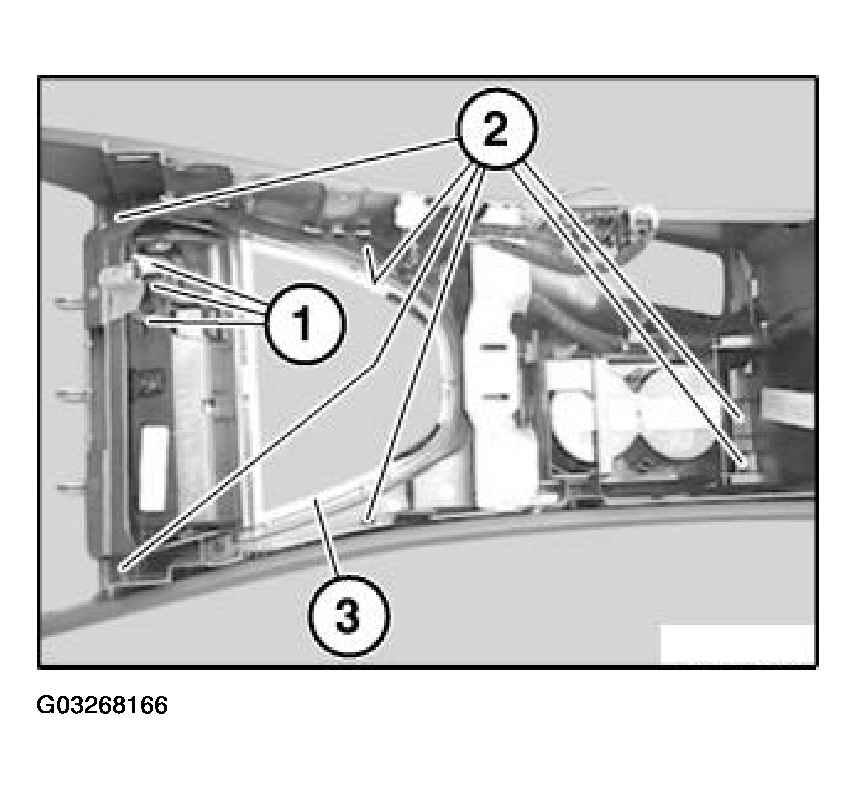

Disconnect plug connection (1).

Fig 1: Removing Base For Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove base (3) for center console and place on a clean surface.

NOTE: The operation "Removing base for center console" ends here.

Removing front cup holder:

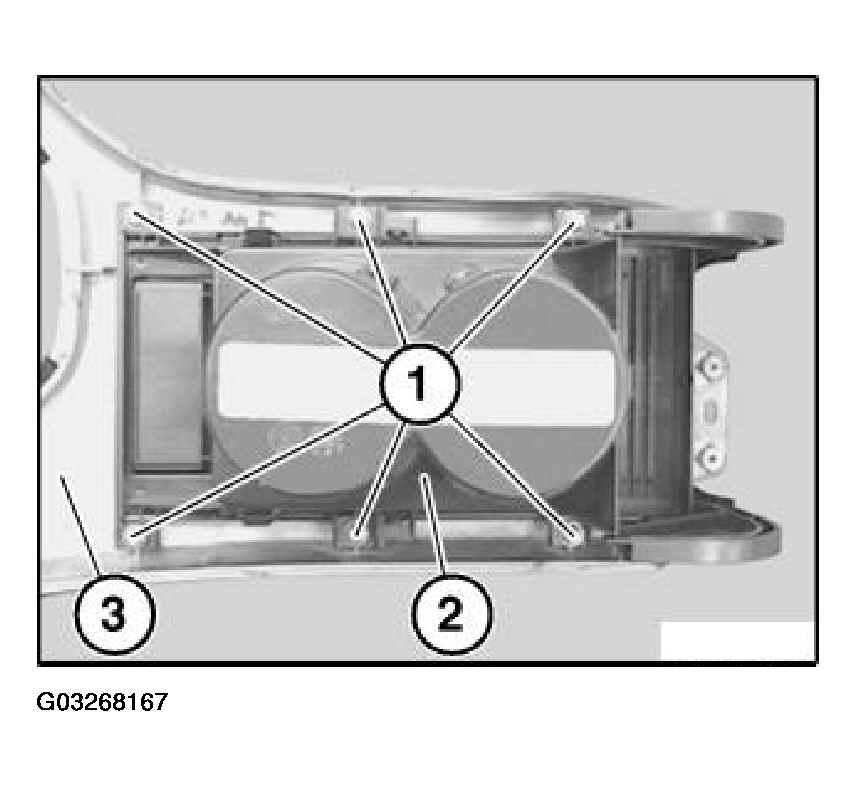

Release screws (1).

Fig 2: Removing Front Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cup holder (2) from base (3) for center console.

Installation:

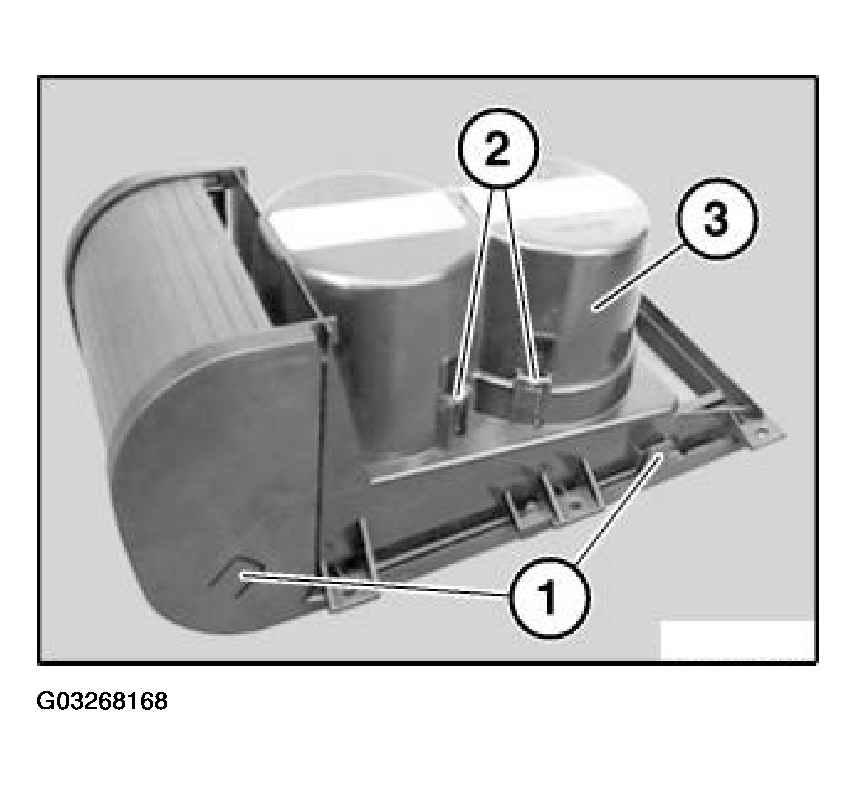

Left/right catches (1) must be correctly secured.

Fig 3: Identifying Springs On Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

All springs (2) on cup holder (3) must not be damaged.

Removing decorative trim on front ashtray cover:

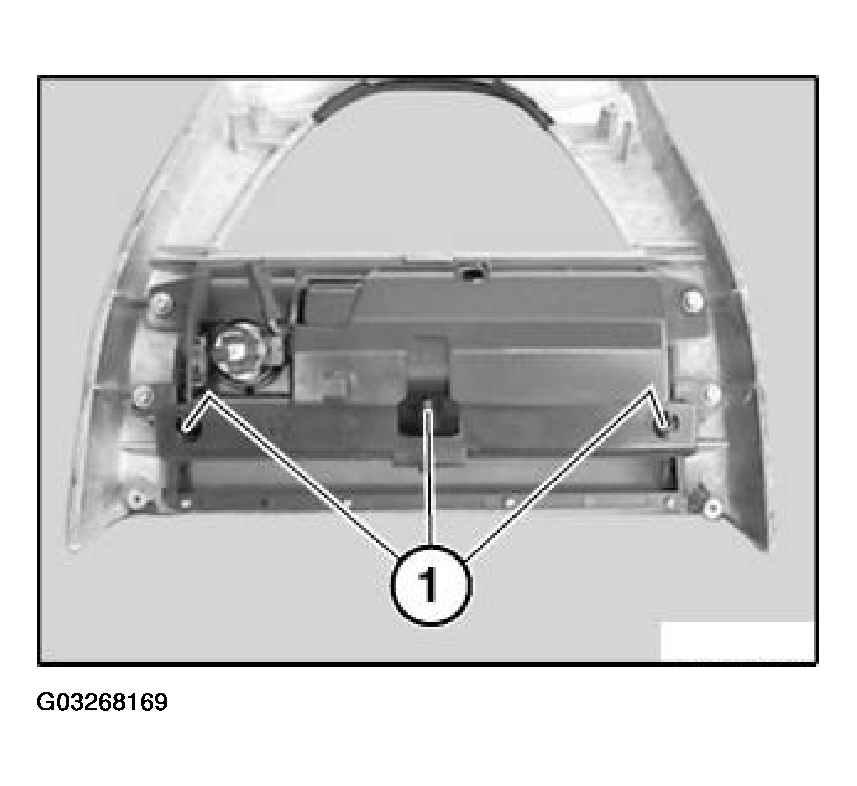

Release screws (1) and remove decorative trim from ashtray cover.

Fig 4: Removing Decorative Trim On Front Ashtray Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Removing front ashtray:

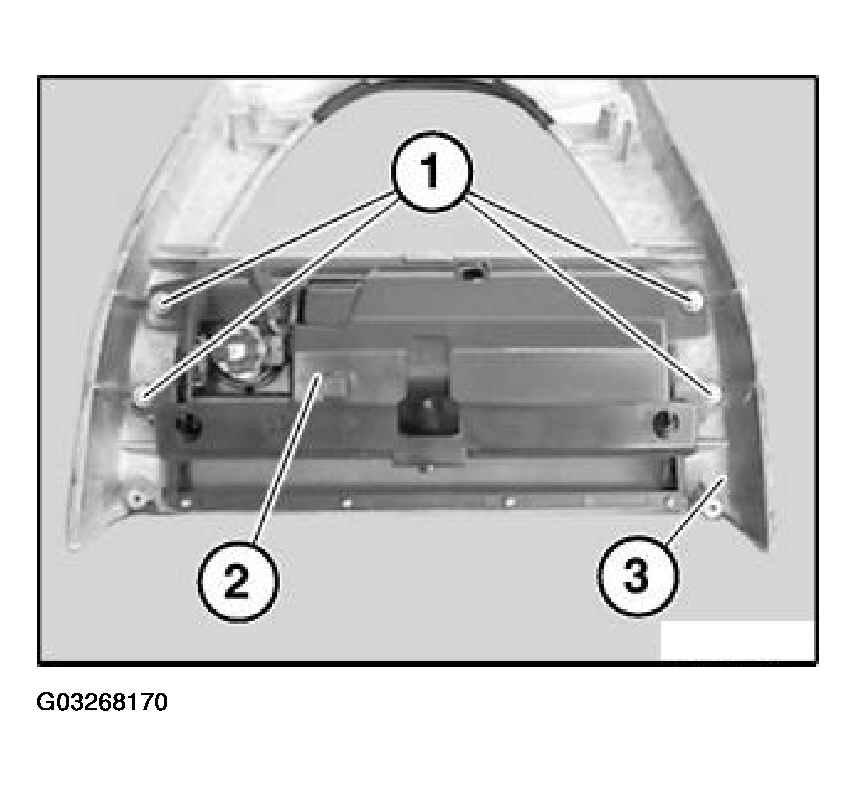

Release screws (1) and remove ashtray (2) from base (3) for center console.

Fig 5: Removing Ashtray

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of base of center console only:

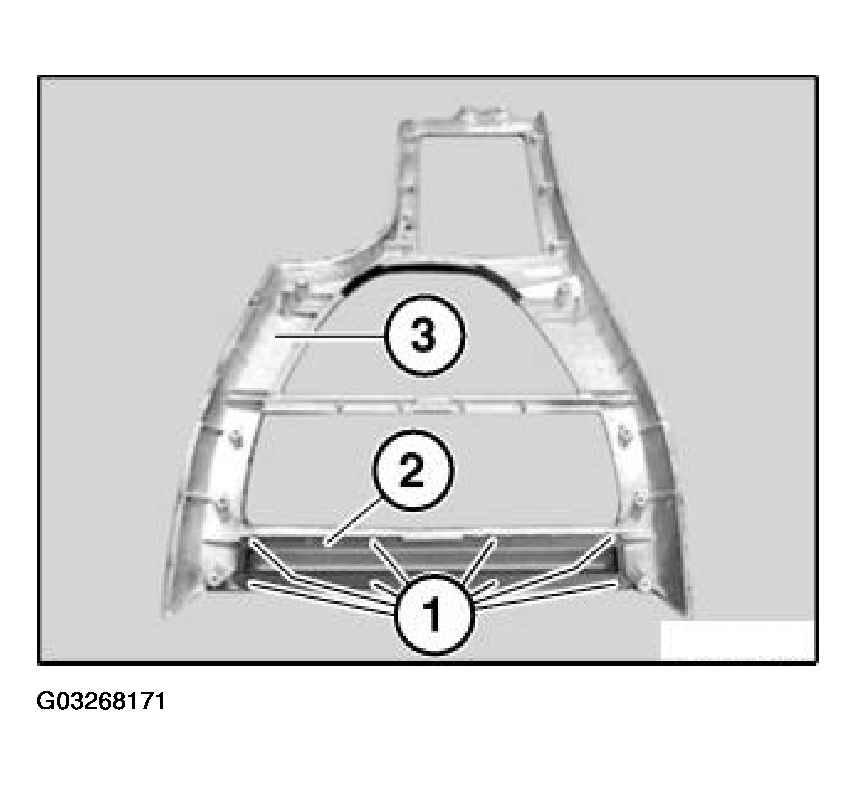

Release screws (1).

Fig 6: Removing Trim For Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (2) for switch from base (3) for center console.
