51 16 080 Removing And Installing Or Replacing Sun Visor And Left Or Right Counter Support

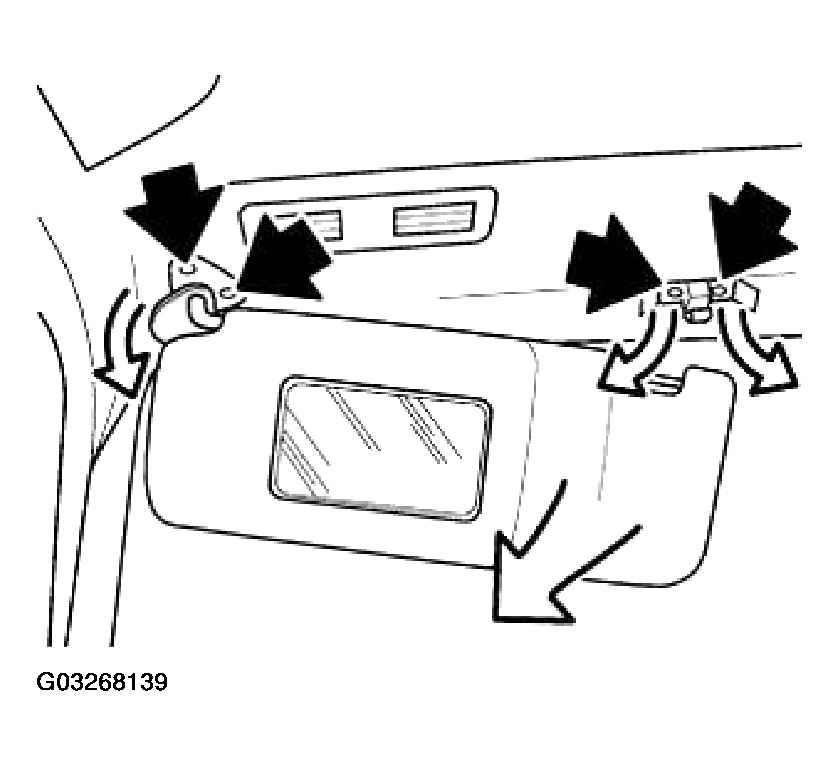

Lift out sun visor.
Courtesy of BMW OF NORTH AMERICA, INC.
Lift out finishers on counter support and joint and unfasten screws.
Pull lighting wire out slightly and disconnect connector.
Installation:
- Perform function check on lighting.
