51 16 ... Replacing clamping element for front cup holder

NOTE: Two variants of the clamping element are possible.

A = Fitting on new part

B = Repair solution

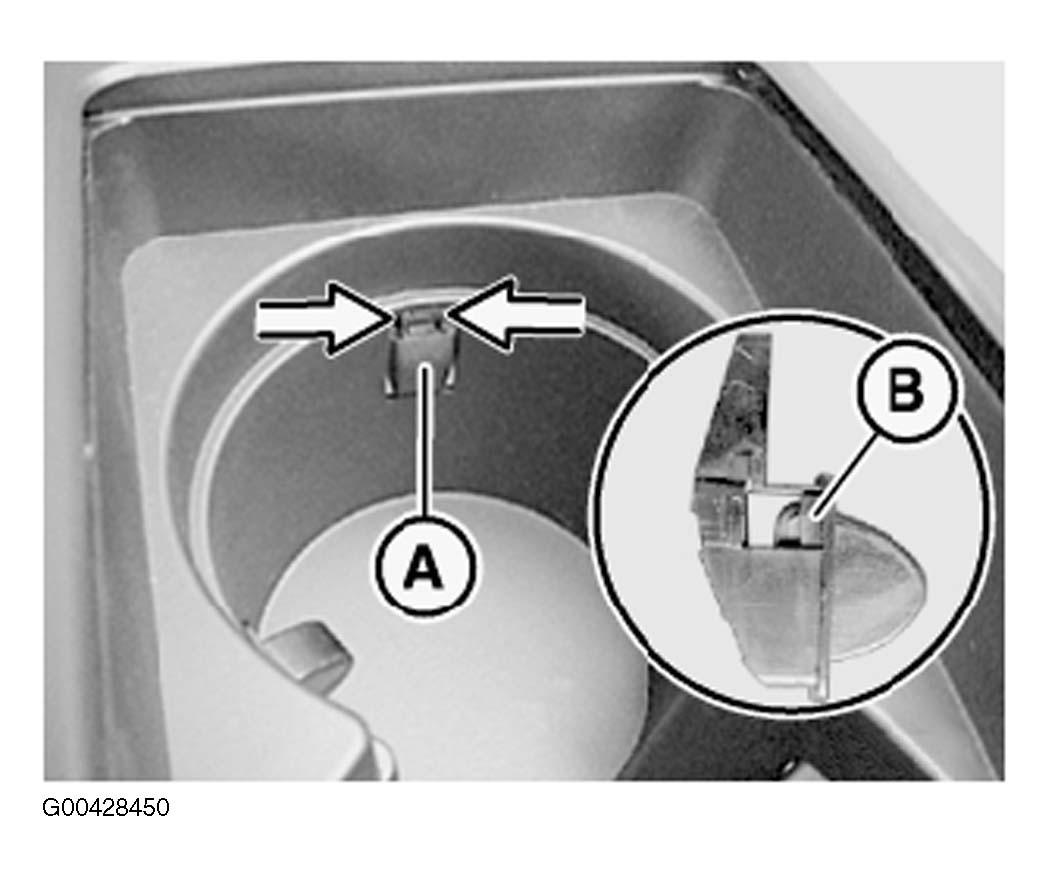

Fig 1: Identifying Variants Of Clamping Element

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of clamping element variant (A):

NOTE: Because there are optical differences between clamping elements (A) and (B), all clamping elements (A) must be replaced.

Compress clamping element (A) with snipe nose pliers in direction of arrow and feed out inwards.

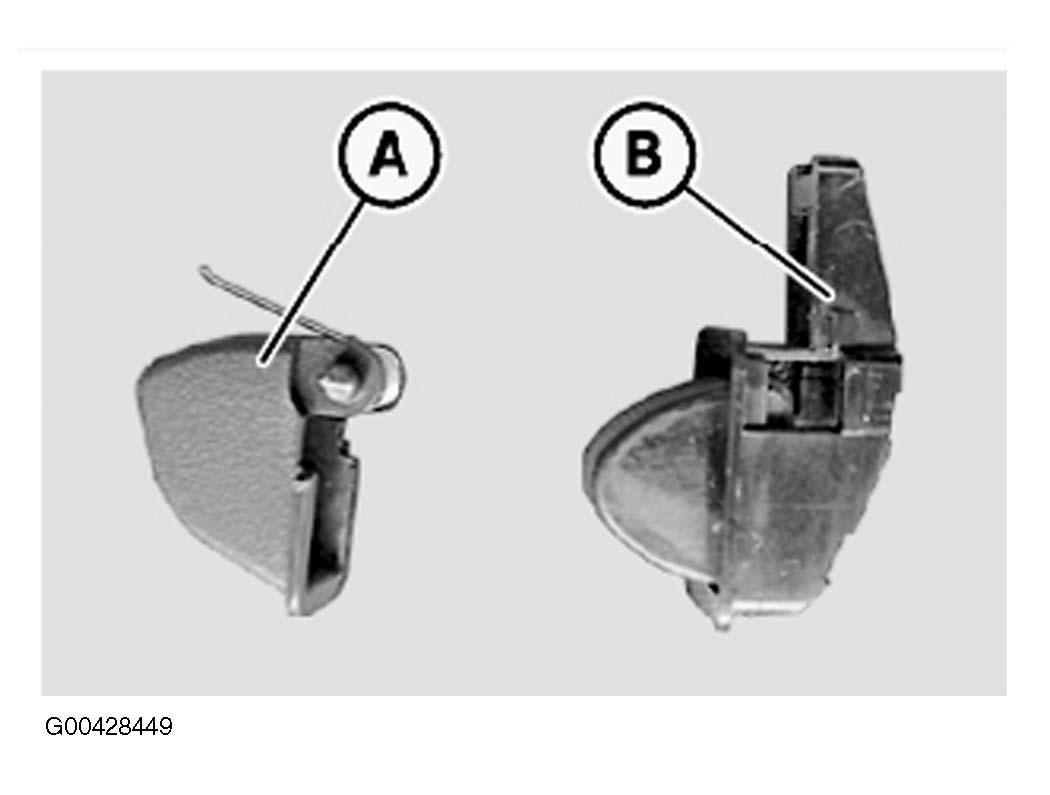

Fig 2: Replacing Clamping Element Variant A

Courtesy of BMW OF NORTH AMERICA, INC.

Insert new clamping element (B).

NOTE: Broken-out clamping elements (A) can remain in the car.

Replacement of clamping element variant (B):

Slide clamping element (B) upwards and lever out in downward direction.

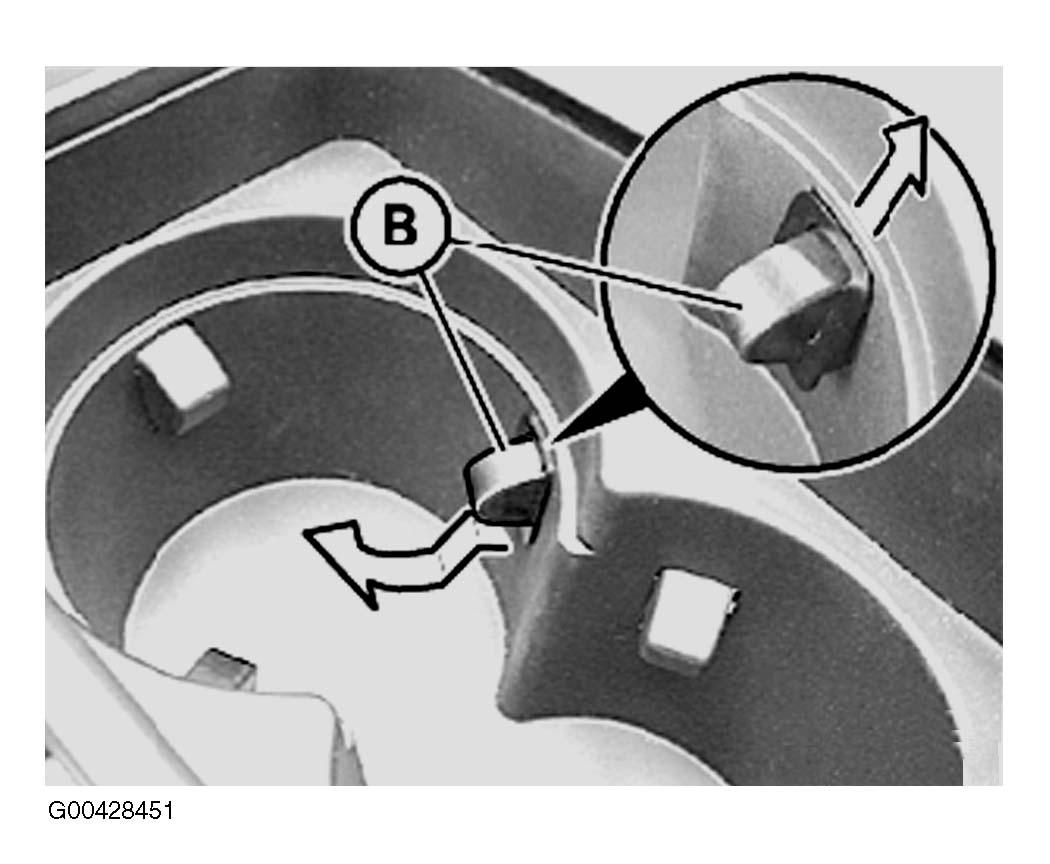

Fig 3: Replacing Clamping Element Variant B

Courtesy of BMW OF NORTH AMERICA, INC.

Press clamping element (B) downwards/inwards and remove.
