51 16 ... Removing And Installing/Replacing Armrest On Cover On Center Armrest

Open cover (3).

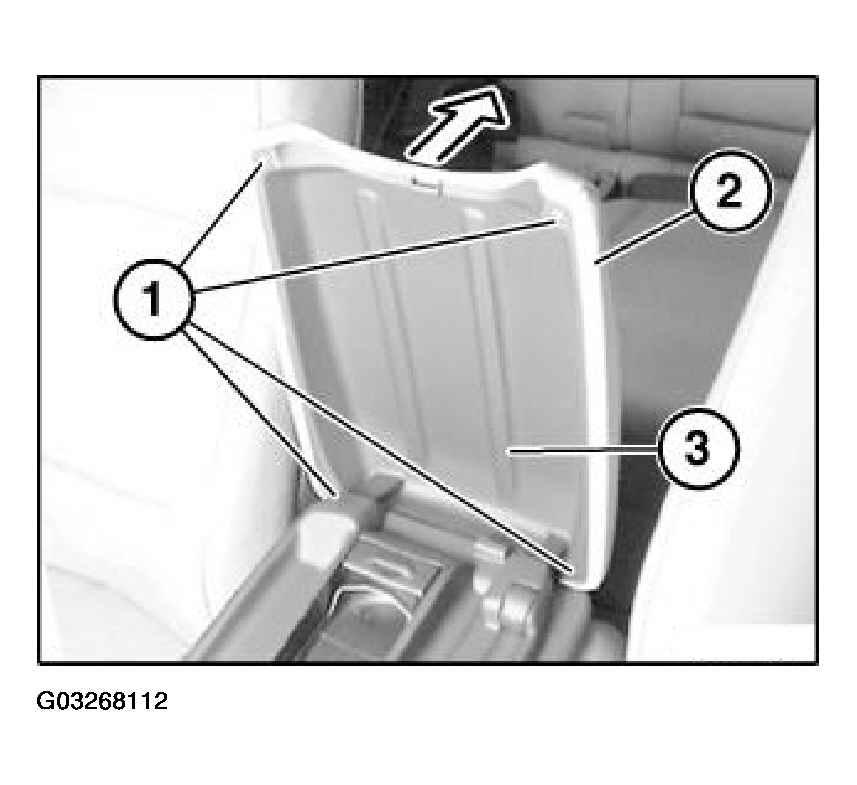

Fig 1: Detaching Armrest From Cover For Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out covers (1) and release screws underneath.

Detach armrest (2) from cover (3) for center armrest.
