51 45 185 Removing And Installing/Replacing Trim For Pedal Assembly

Unlock gong (1) and remove from trim (3).

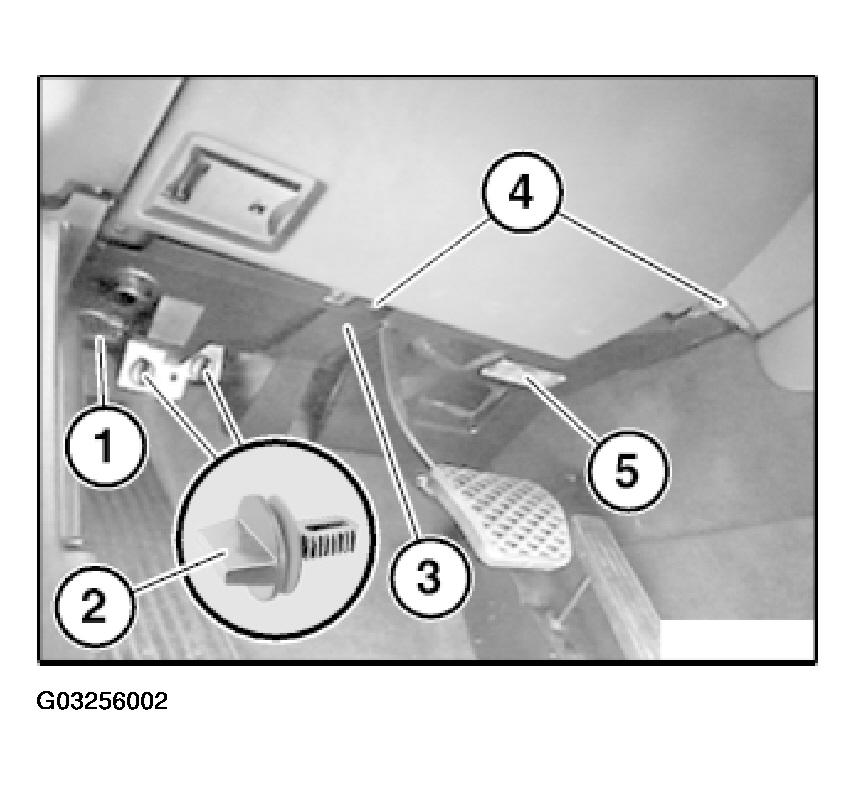

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (4).

Turn toggle (2) and remove.

Lower trim (3) a little and disconnect plug connection for footwell light (5).

Remove trim (3).

Replacement only:

Lever out footwell light (5).
