51 45 181 Removing And Installing/Replacing Trim For Instrument Panel, Bottom Right

Release screw (1).

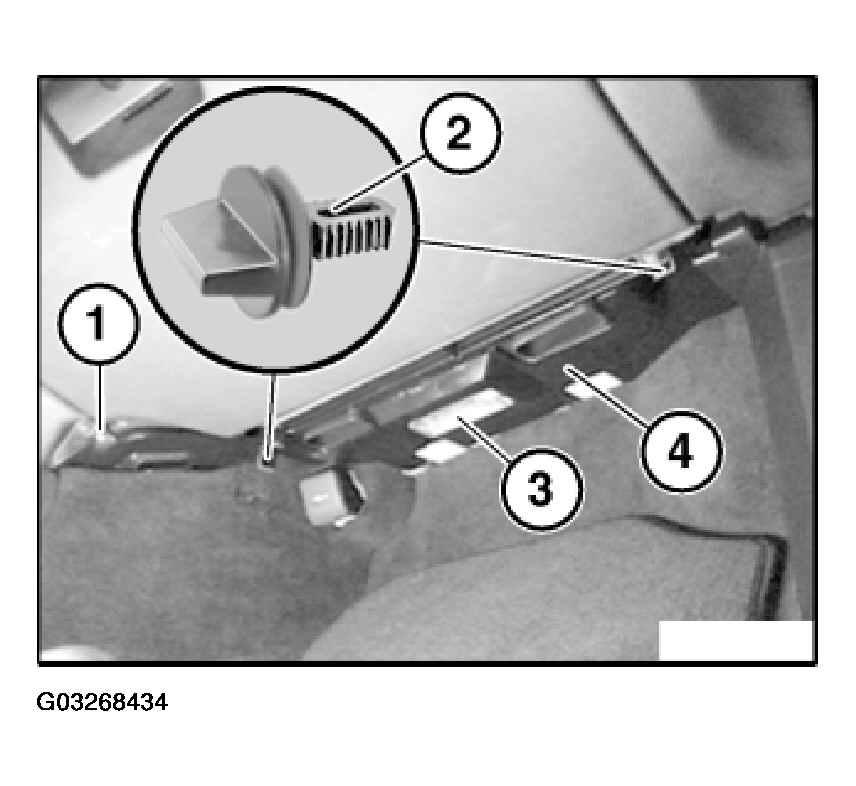

Fig 1: Removing Bottom Right Trim For Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Turn toggle (2) and remove.

Lower trim (4) a little and disconnect plug connection for footwell light (3).

Remove bottom right trim (4) for instrument panel.

Replacement only:

Lever out footwell light (3).
