51 45 180 Removing And Installing Trim For Instrument Panel, Bottom Left

Release screws (1).

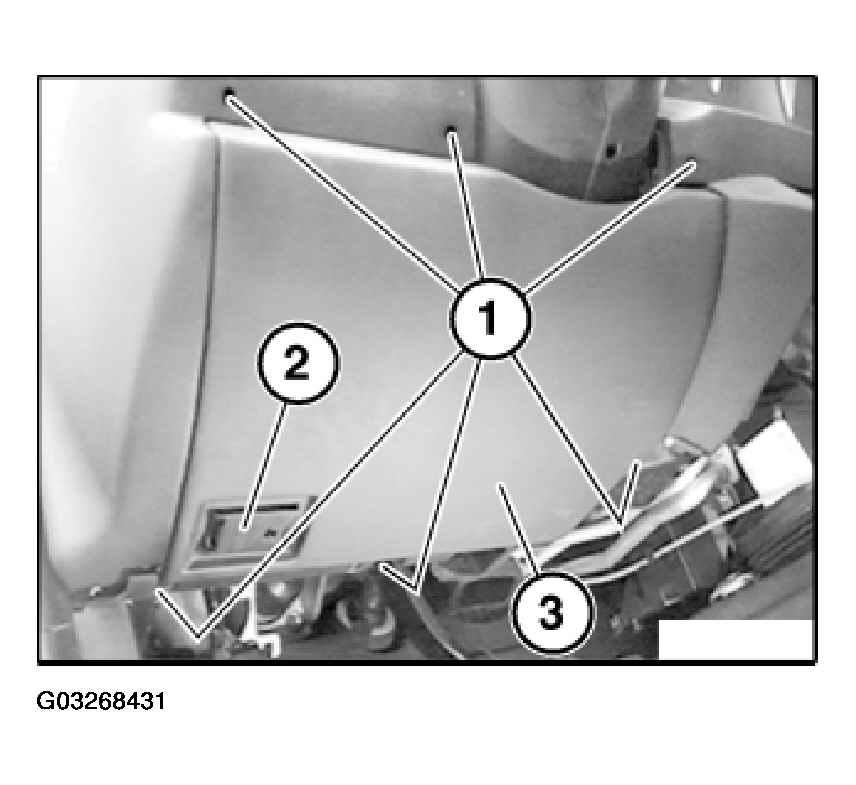

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection for OBD socket (2).

Unclip rubber gaiter from steering wheel trim and remove trim (2).

Installation:

Clip rubber gaiter (1) correctly with clips (1) into fixtures (3) in steering wheel trim.

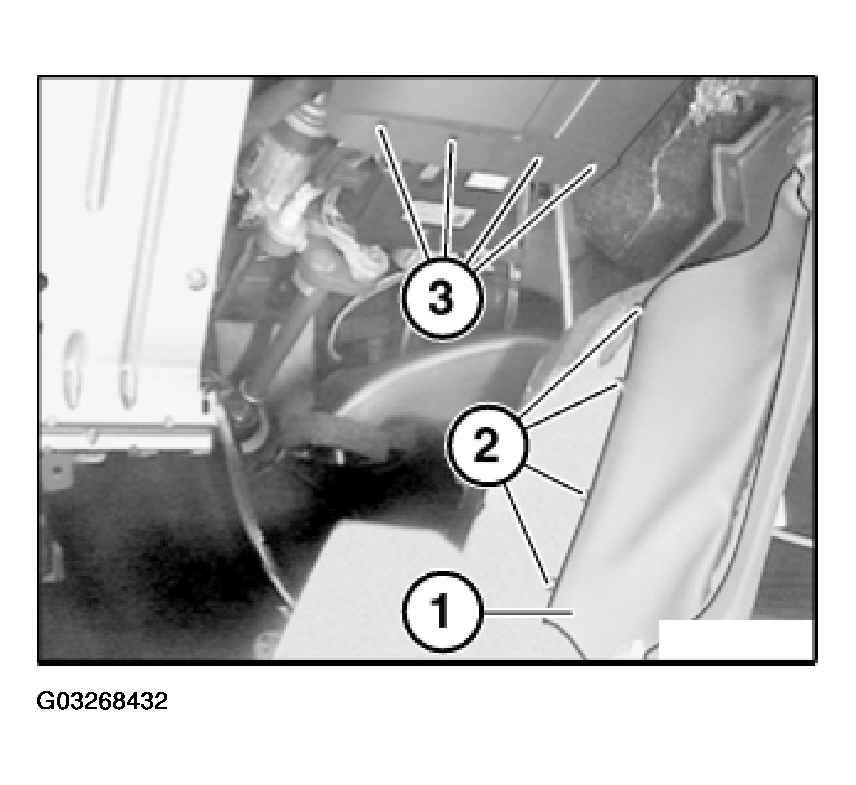

Fig 2: Identifying Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty metal nuts (1).

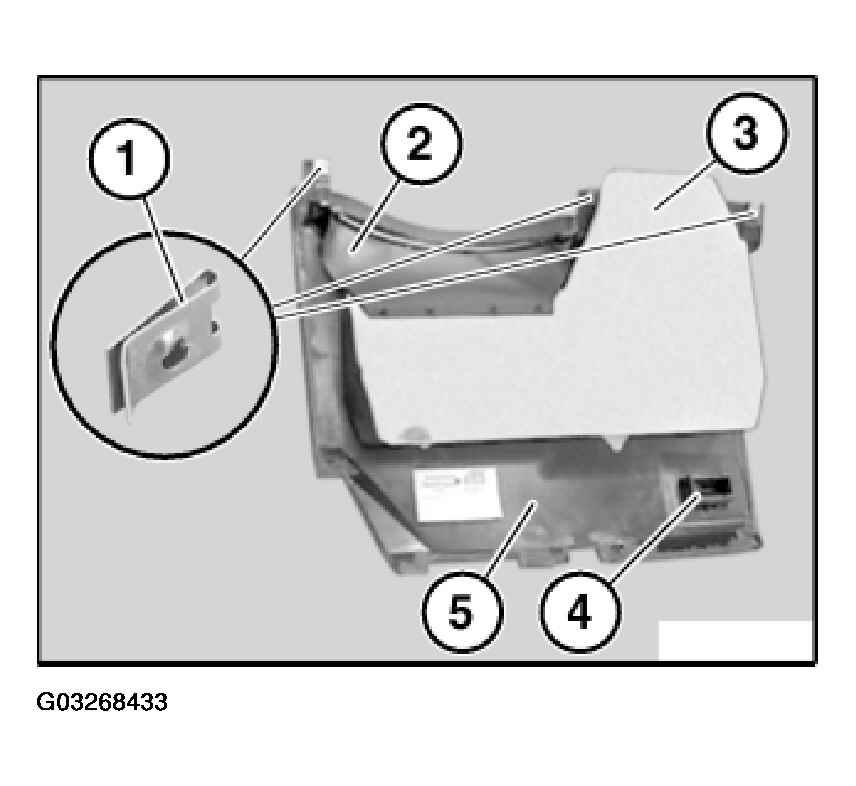

Fig 3: Removing OBD Socket From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Rubber gaiter (2) and styrofoam (3) must not be damaged.

Replacement only:

Remove OBD socket (4) from trim (5).
