51 32 160 Removing And Installing/Replacing Cover (Anti-Trapping Protection) On Door Window Frame, Left Or Right, Inside
- Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .
Rear for outside trim (51 32 420) only:

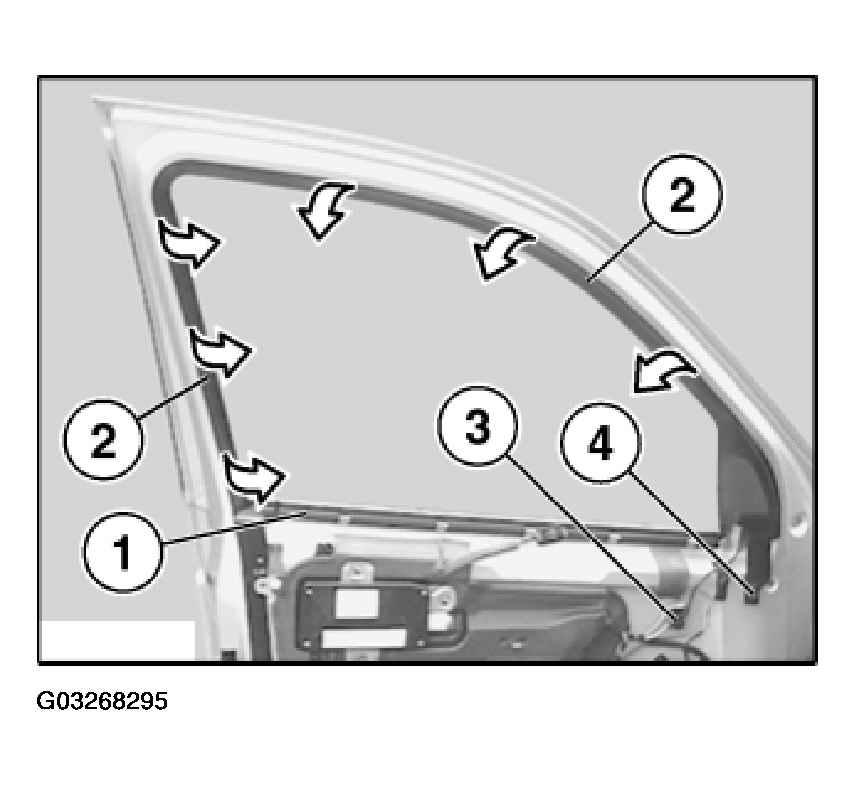

Carefully lever out clip (1) and lever out cover (2) in rear area.
Additionally for complete removal:
Disconnect plug connection (3).
Carefully lever out clip (4) and lever out cover (2) completely.
Installation:

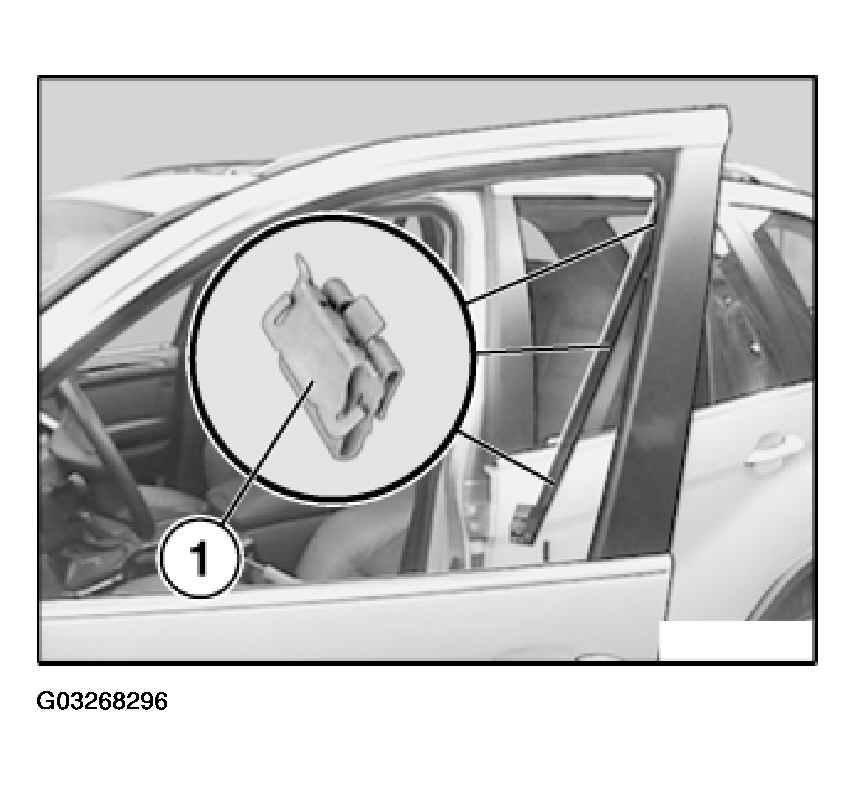

If applicable, replace defective clips (1).
Installation:

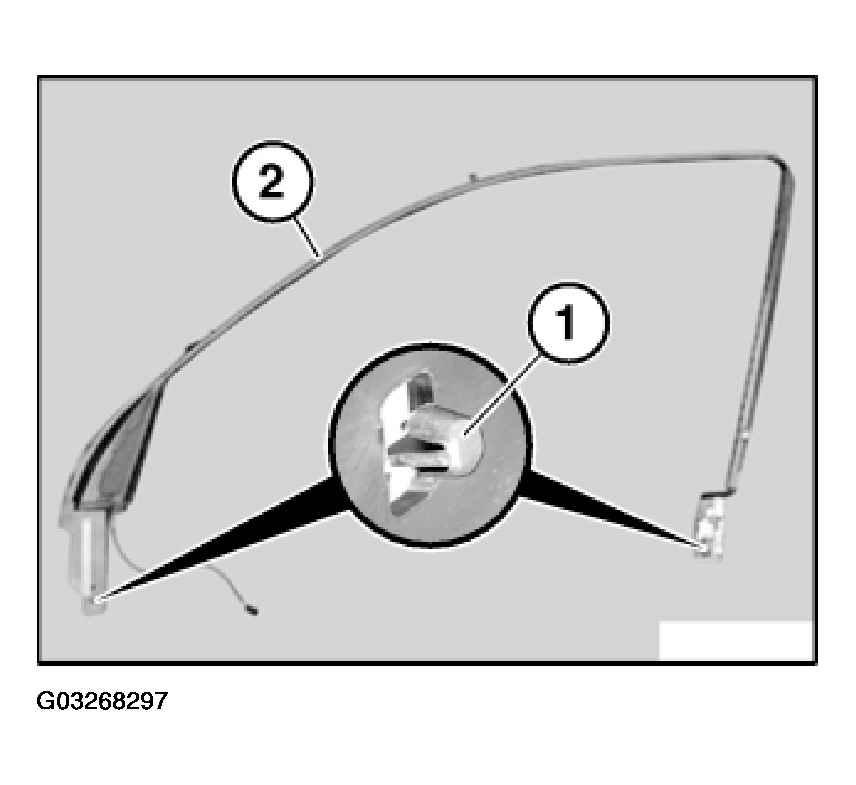

Clips (1) on cover (2) must not be damaged.
