51 32 154 Adjusting Left Or Right Front Door Window

Special tools required:

51 3 080

Ideal adjustment:

Retraction depth along window edge min. 6 mm.

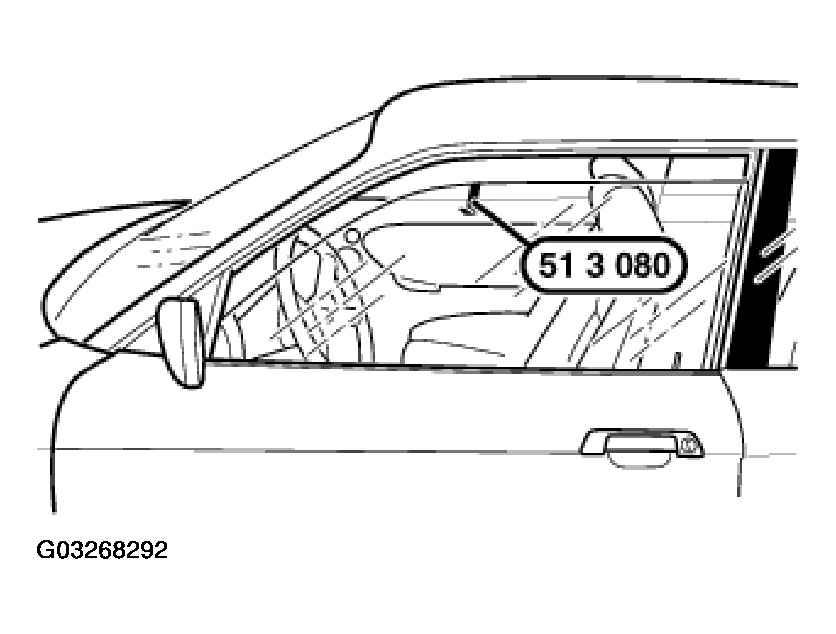

Fig 1: Locating Retraction Depth Along Window Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Measuring retraction depth:

Open door, attach special tool 51 3 080 to door window glass and close door.

Fig 2: Measuring Retraction Depth

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting door window glass:

NOTE: Partially detach soundproofing in areas (1) and (3) only.
Side AIRBAG (2) remains fitted.
For partial detachment of soundproofing, follow procedure detailed in Removing and installing/replacing soundproofing in left or right front door, refer to 51 48 ... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

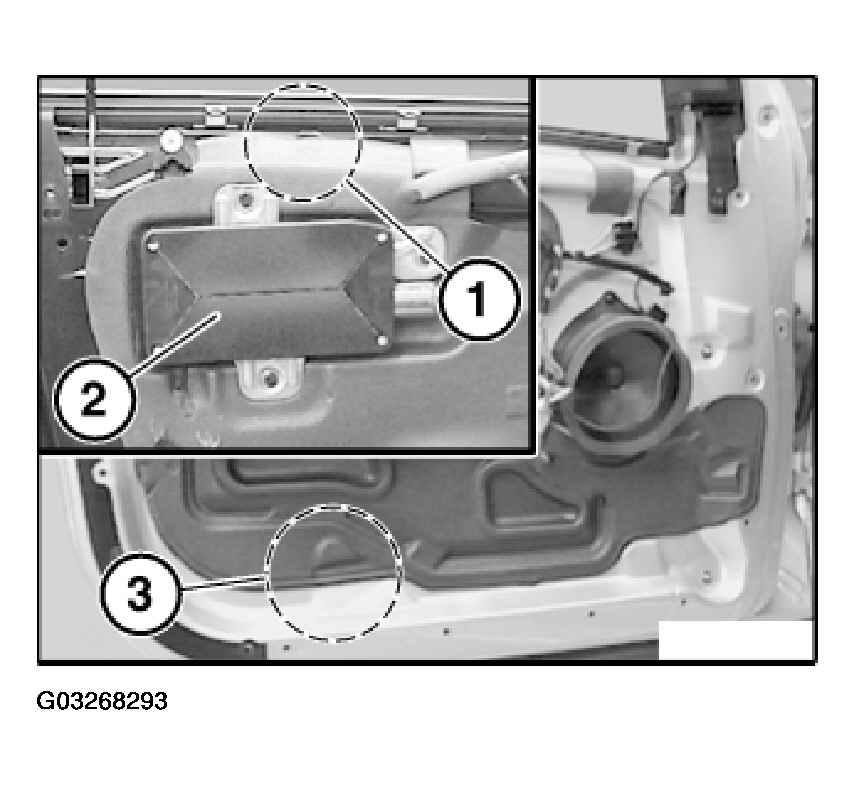

Fig 3: Detaching Sound Proofing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows soundproofing removed.

Slacken off nuts (1) and (3) (do not release fully).

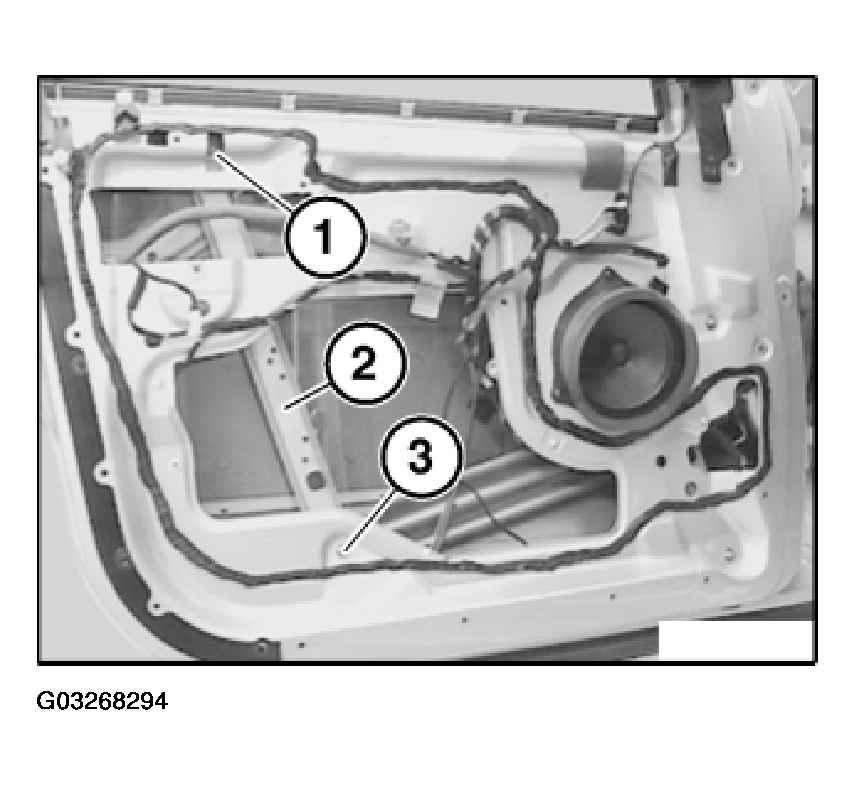

Fig 4: Adjusting Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

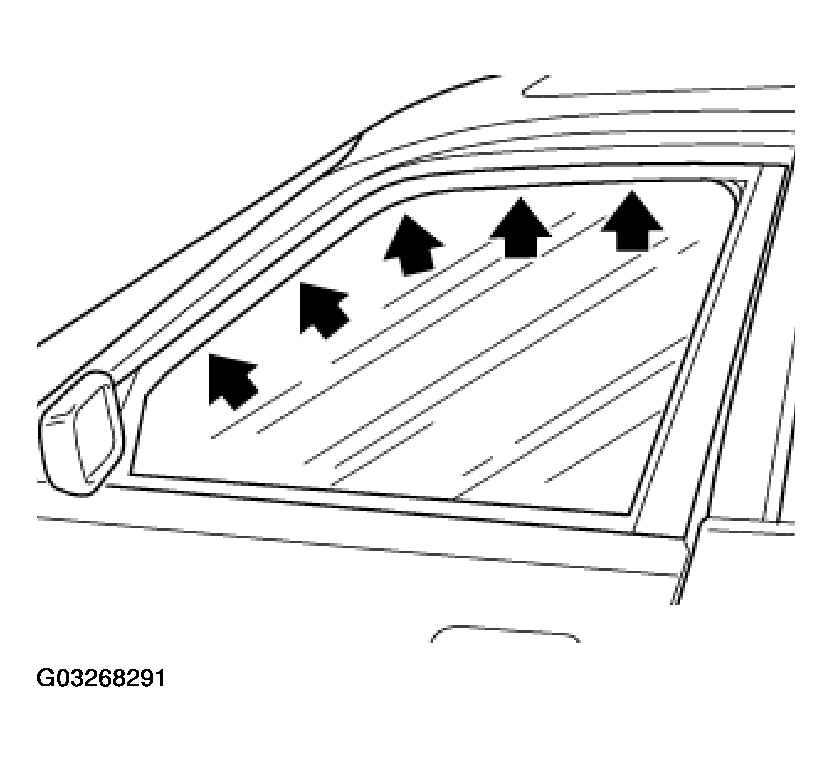

Close door window glass with window lift (2) fully and if necessary press upwards until ideal setting is obtained.

Tighten down nuts (1) and (3).

Installation:

Tightening torque 51 32 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
