51 21 180 Removing And Installing/Replacing Cover On Outside Handle

Lever out trim (1) and frame (2).

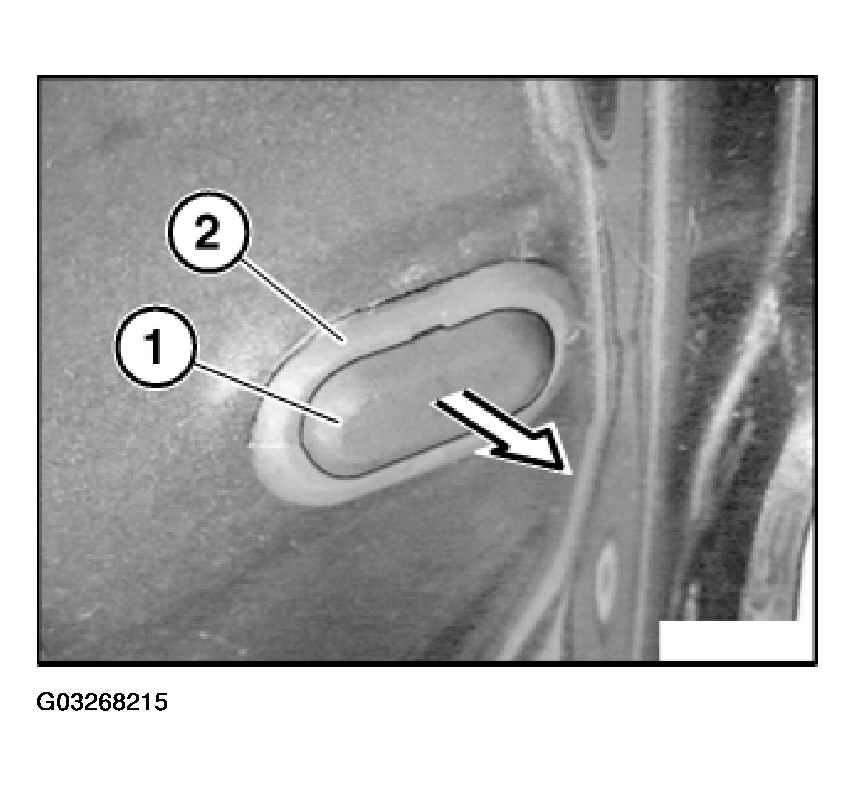

Fig 1: Identifying Trim And Frame
G03268215Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: After releasing screw, you must reinstall frame (2) (damage to paint).

Installation:

  1. Install new trim (1) and frame (2).

Release screw (1).

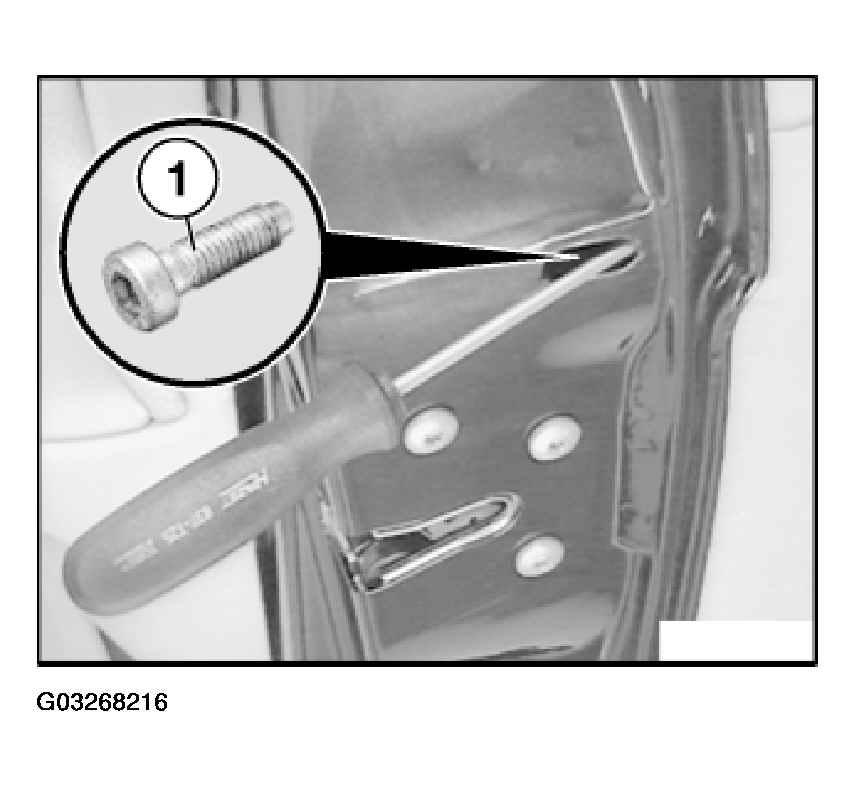

Fig 2: Releasing Screw
G03268216Courtesy of BMW OF NORTH AMERICA, INC.

Removing cover (1) on outside handle:

  1. Pull cover (1) approx. 1... 2 mm towards rear.
  2. Take off cover (1).

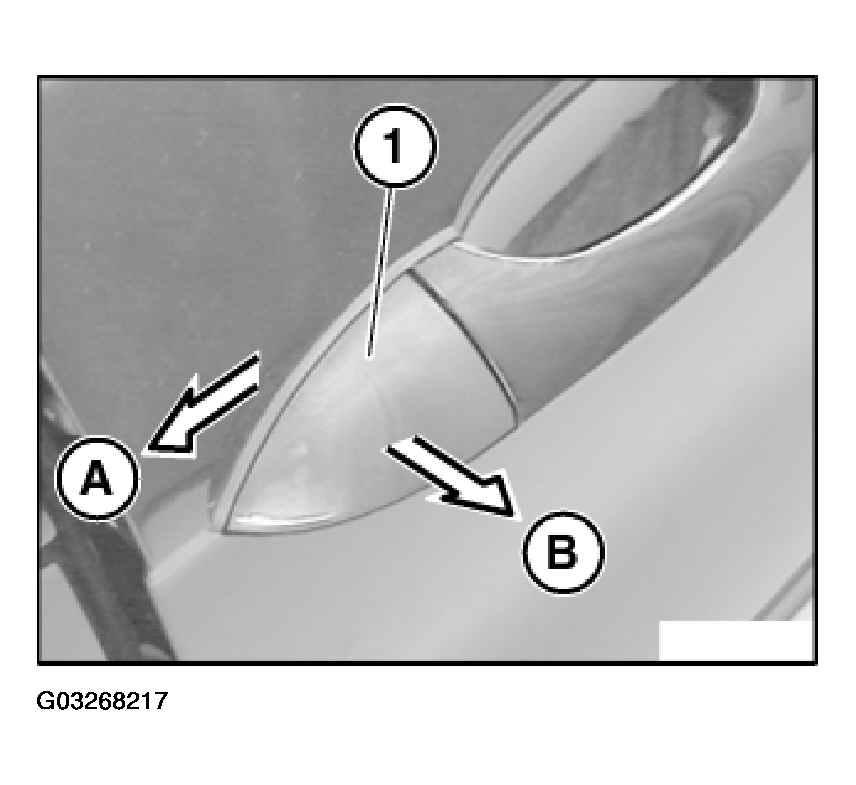

    Fig 3: Removing Cover On Outside Handle
    G03268217Courtesy of BMW OF NORTH AMERICA, INC.

Lever out catches (1) and detach cover (2) from filler element (3).

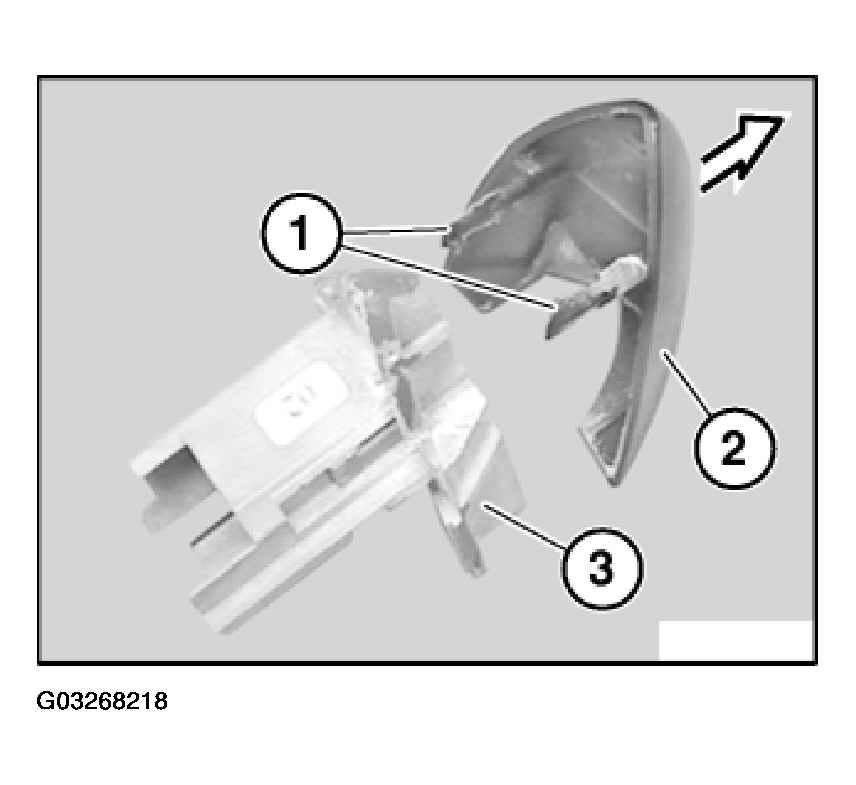

Fig 4: Detaching Cover From Filler Element
G03268218Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Catches (1) on cover (2) must not be damaged.
