51 14 110 Removing and installing/replacing rear model emblem

IMPORTANT: The "Instructions for number/letter combination cementing" serve as the basis for these repair instructions and must be followed without fail. Refer to 51 14 ... INSTRUCTIONS FOR ATTACHING NUMBER/LETTER DESIGNATION COMBINATION .

Stick on top edge of adhesive tape (1) parallel to bottom edge of rear lid (2) at distance "A".

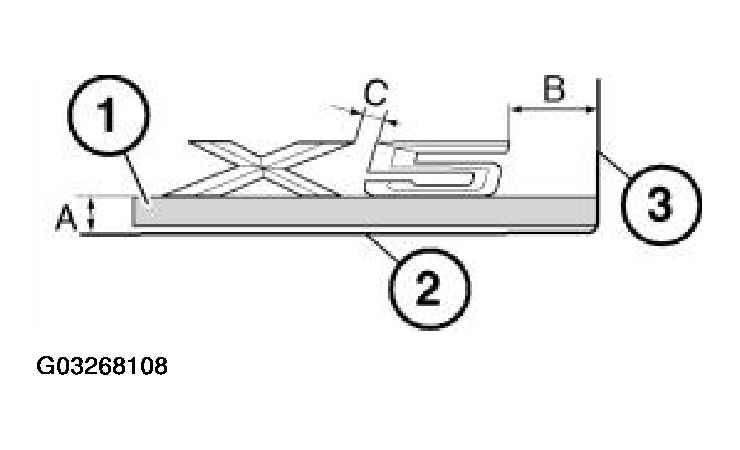

Fig 1: Installing Rear Model Emblem

Courtesy of BMW OF NORTH AMERICA, INC.

Mark measurement "B" from side edge (3) measured on top edge of adhesive tape.

Dimensions:

A= 22 mm

B= 53 mm

NOTE: Measurement "C" is for information purposes only, as it is determined by carrier film.

C= 8.7 mm
