22 11 100 Replacing right engine support arm

Necessary preliminary tasks:

• Secure engine in installation position. Refer to SECURING ENGINE WITH SPECIAL TOOL IN INSTALLATION POSITION (M54) .
• Remove underbody protection.
• Remove reinforcement plate.

Release nut (1) and screws (2).

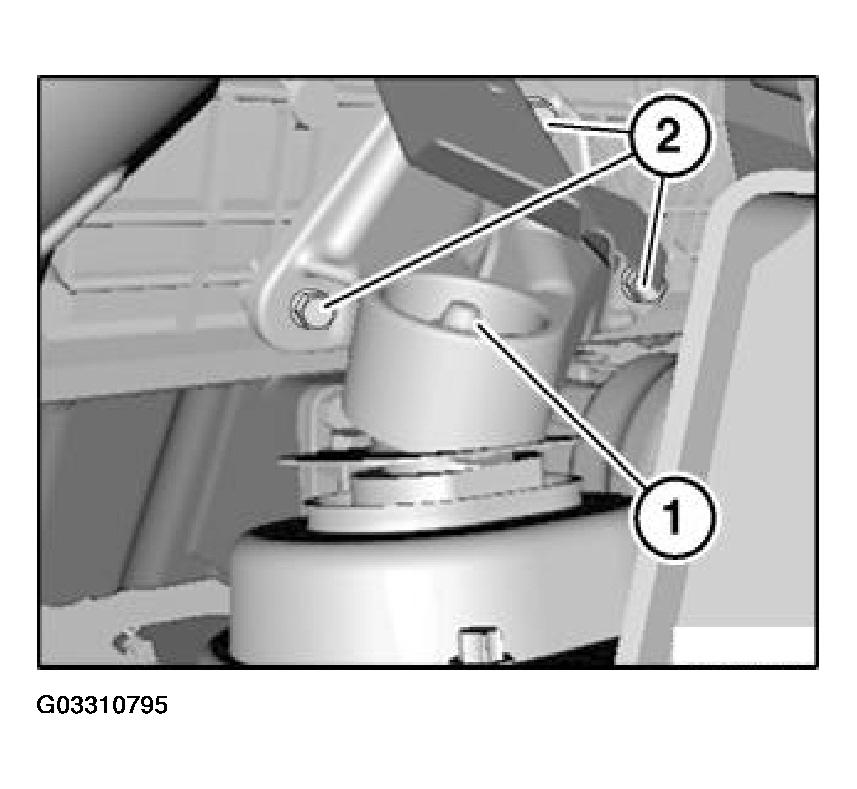

Fig 1: Removing Right Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove engine support arm.

Tightening torque 22 11 2AZ/3AZ. Refer to ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
