61 31 405 Removing and installing/replacing remote control for garage door opening

Remove front ceiling light.

Press out remote control for garage door opening (2) from inside.

Disconnect plug.

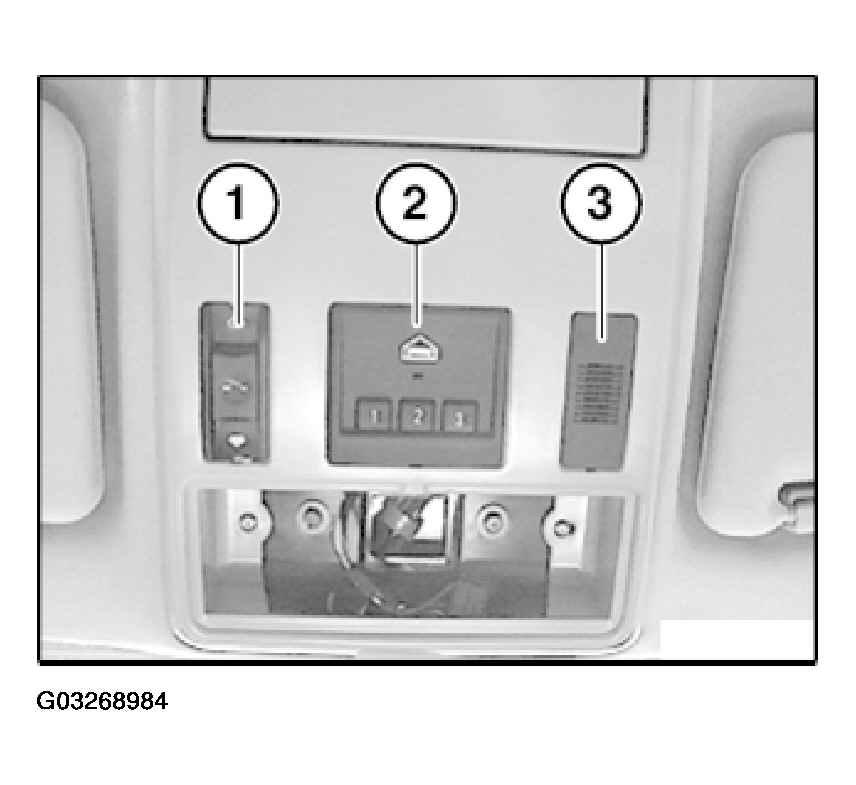

Fig 1: Pressing Out Remote Control For Garage Door Opening
G03268984Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Initialize garage door opener.

(1) = Switch for sunroof.

(3) = Hands-free microphone.
