61 31 175 Removing and installing/replacing switch for slide/tilt sunroof

Remove front ceiling light.

Press out switch for sunroof (1) from inside.

Disconnect plug connection.

NOTE: Initialize sunroof.
(2)=Remote control for garage door opening.
(3)=Hands-free microphone.

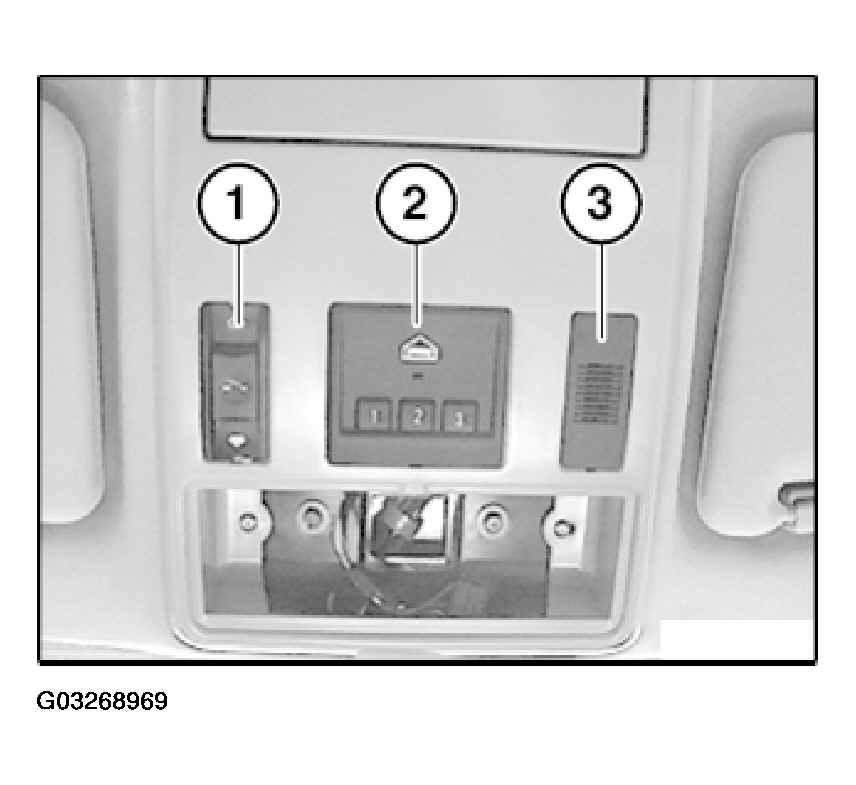

Fig 1: Removing Front Ceiling Light
G03268969Courtesy of BMW OF NORTH AMERICA, INC.
