65 81 010 Removing and installing/replacing multi-information display

Remove volume control knob.

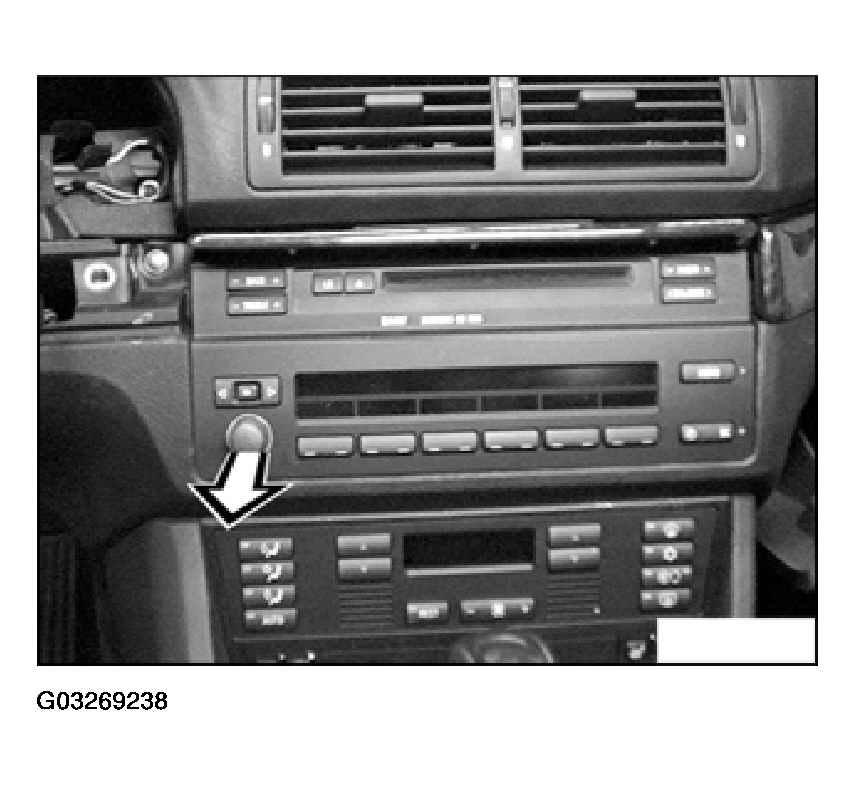

Fig 1: Removing Volume Control Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Turn lock with Torx screwdriver through approx. 90° and pull out multi-information display.

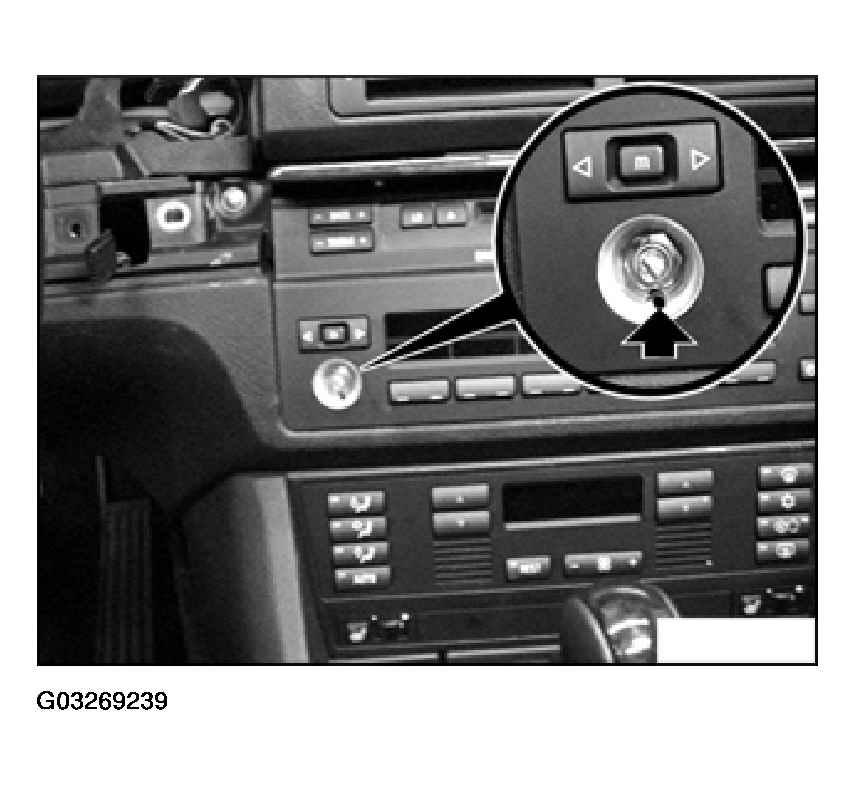

Fig 2: Locating Lock In Multi-Information Display

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

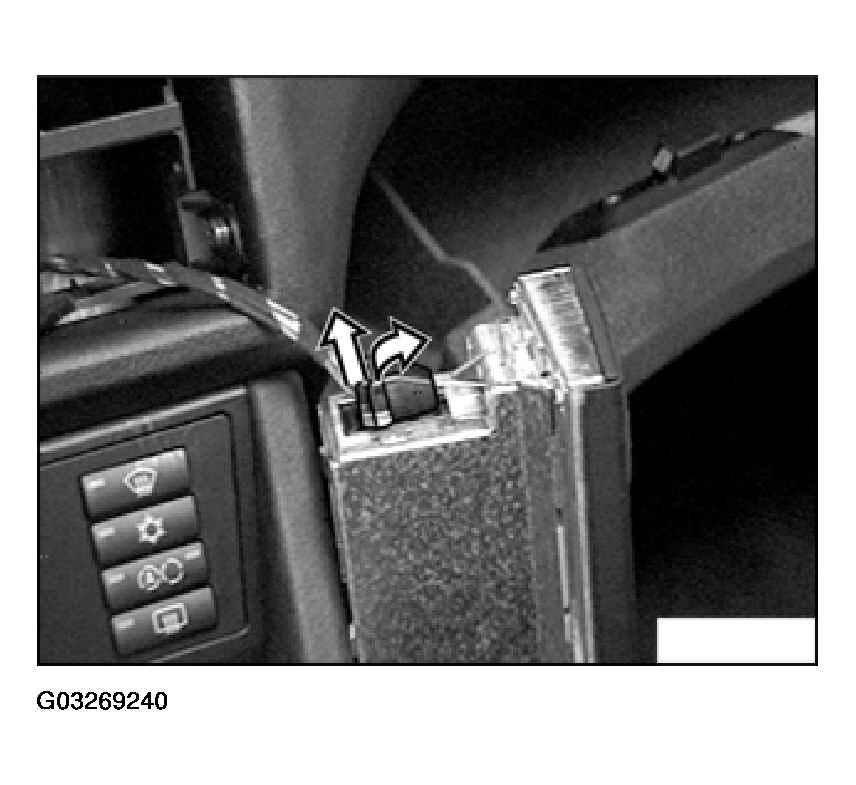

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
