64 22 135 Removing and installing/replacing left fresh-air grille
NOTE:
For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - X5 .
Special Tools Required:
- 64 1 020
For Purposes Of Clarity:

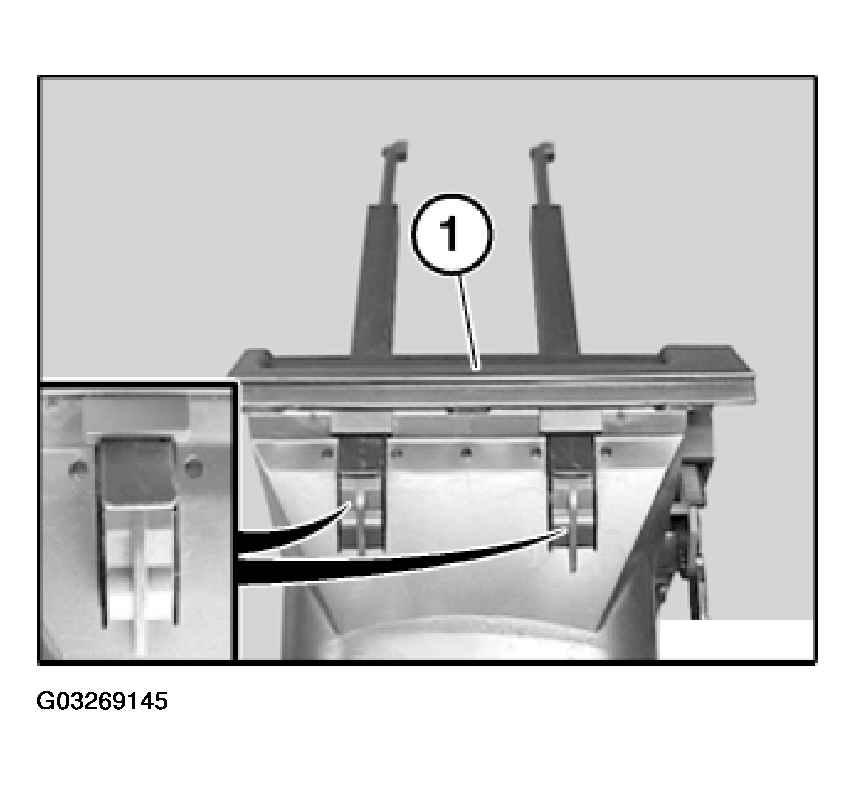

Fresh air grill (1) in unlocked state.
Move air outlet adjuster (1) into illustrated position.

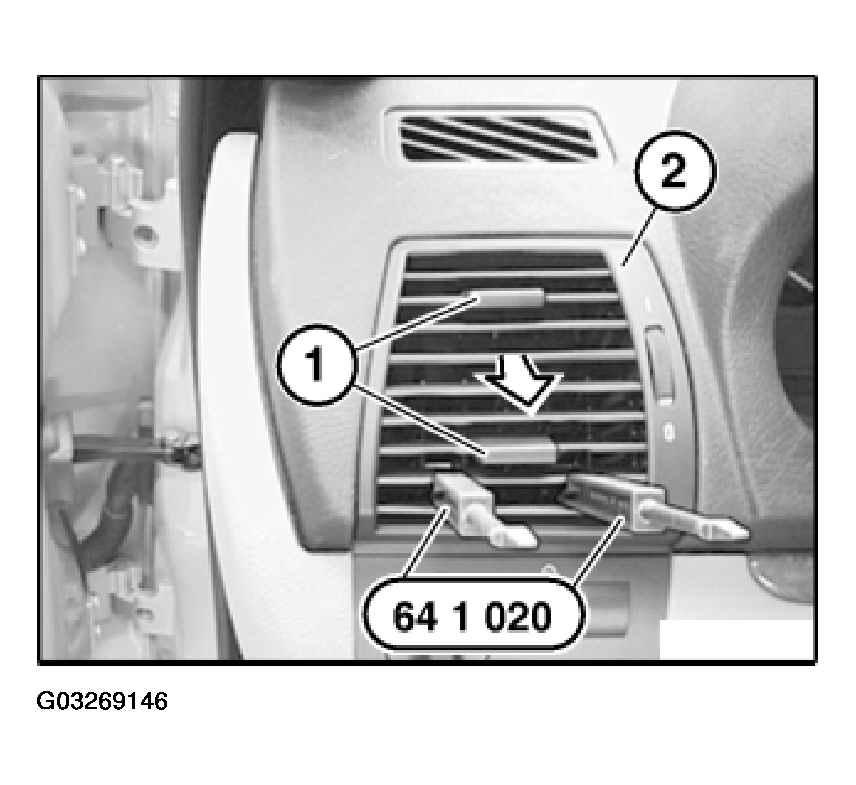

Insert special tool 64 1 020 as illustrated at an angle downwards into openings of fresh air grill (2) and unlock fresh air grill (2).
Withdraw fresh air grill (2) at air outlet adjusters (1) in direction of arrow.
Installation:
First allow fresh air grill (2) to snap into place at top.
Fresh air grill (2) must snap audibly into place.
