18 10 025 Replacing left rear muffler (N62)

WARNING: This page is about a different variant/trim than selected.

WARNING: Scalding hazard! Only perform these tasks after exhaust system has cooled down.

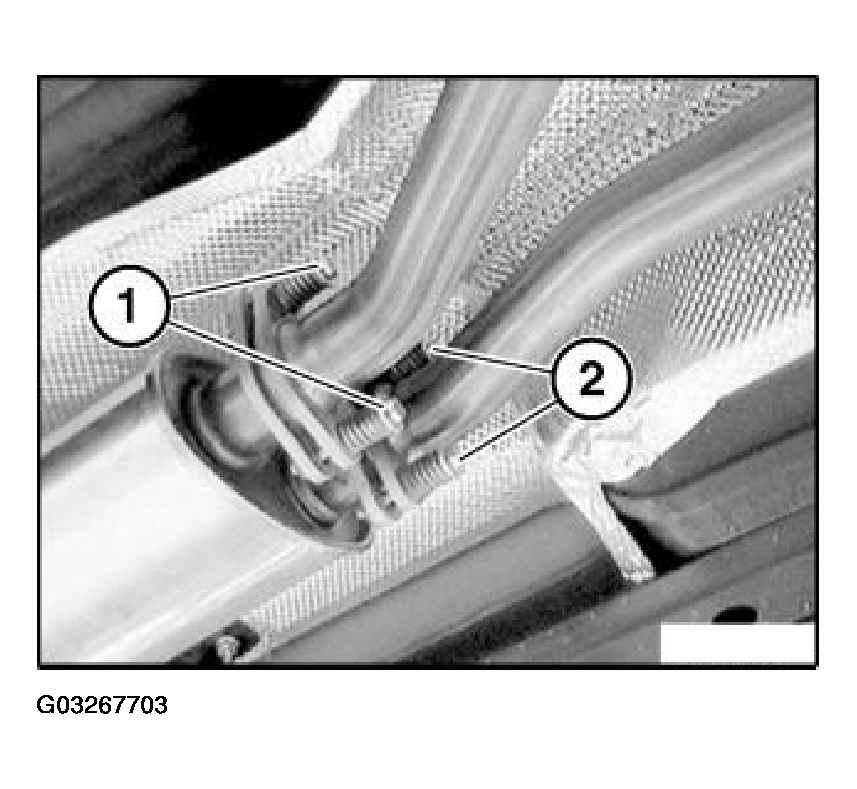

Loosen screws (1).

Installation:

Fig 1: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

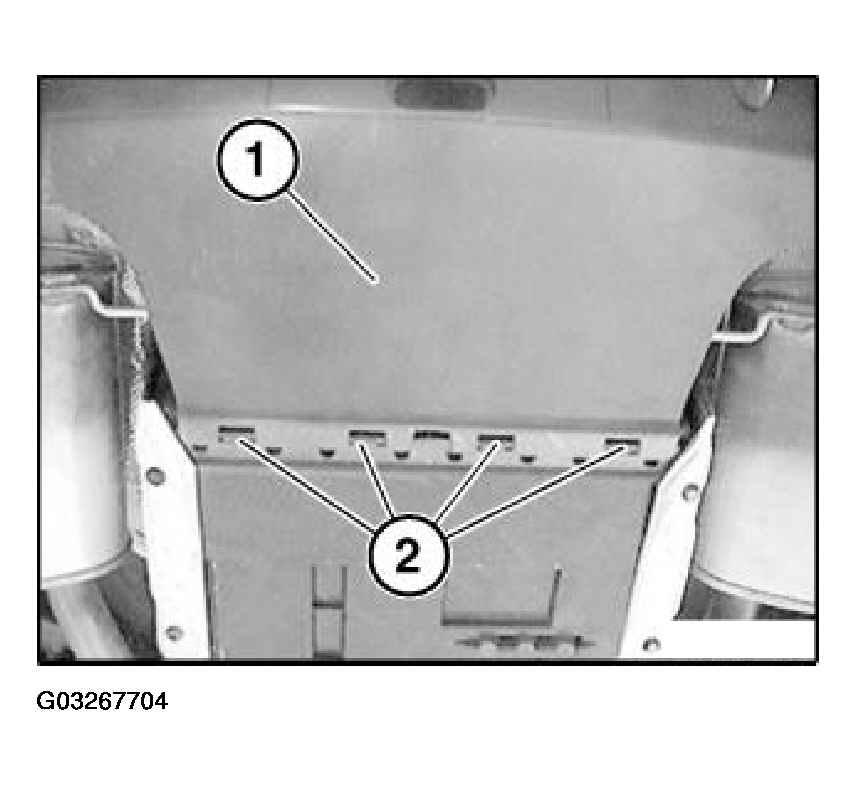

Unclip cover (1) from fixtures (2).

Fig 2: Removing Cover Clip

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations depict the right rear muffler.

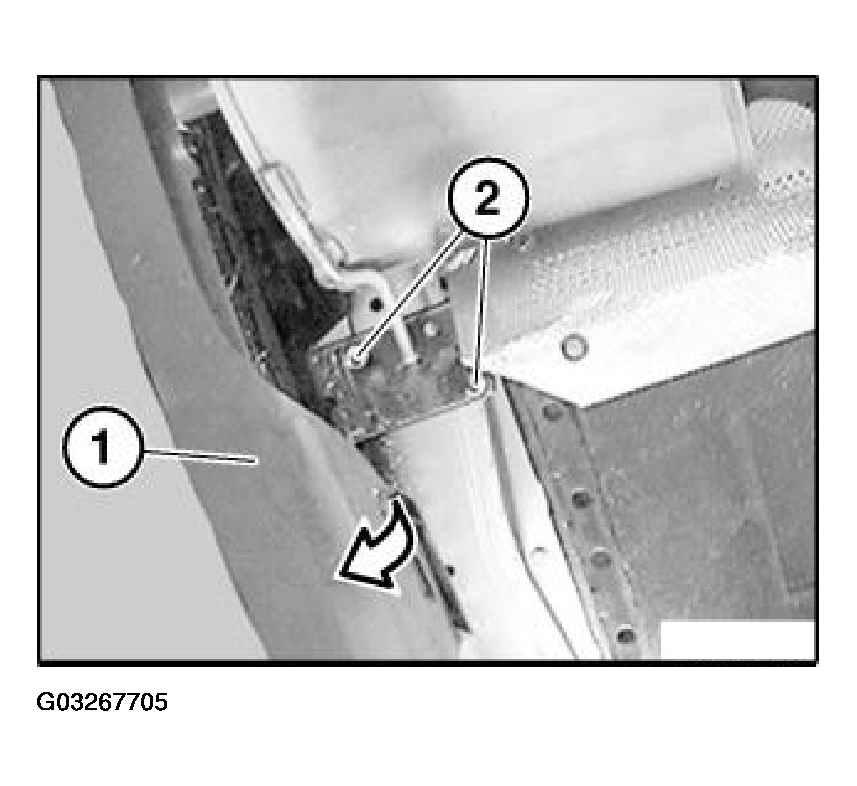

Press cover (1) downwards.

Release screws (2) on rubber mount for rear muffler.

Fig 3: Removing Screws On Rubber Mount For Rear Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations depict the right rear muffler.

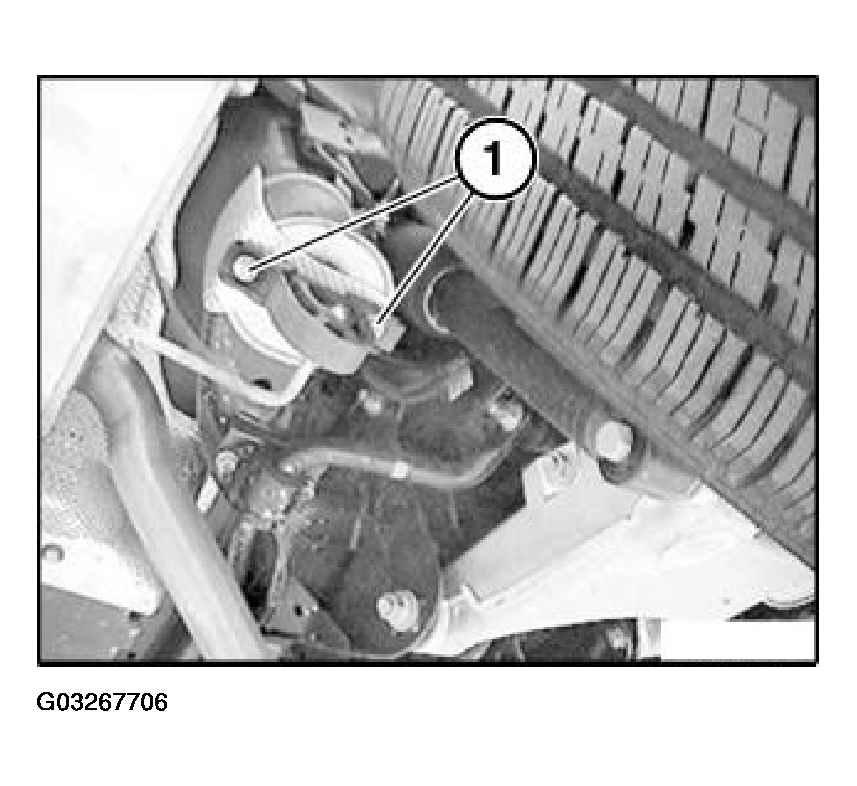

Release screws (1) on rubber mount for rear muffler on rear axle carrier.

NOTE: Rubber mounts are colored differently.

for rubber mount of rear muffler on rear bumper.

Mixing up the rubber mounts will alter the vibration response of the exhaust system.

Fig 4: Removing Screws On Rubber Mount For Rear Muffler On Rear Axle Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove rear muffler.

Fig 5: Removing Rear Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Push rubber mount for mounting rear muffler onto brackets of new rear muffler.
