Section 6 (Cooling System - Repair Instructions (N62))
>>
Oil Cooler Lines
>>
17 21 500 Flushing oil cooler with lines (automatic transmission)
>>
Arrangement of flushing device for transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z
Arrangement of flushing device for transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z
WARNING:
This page is about a different variant/trim than selected.

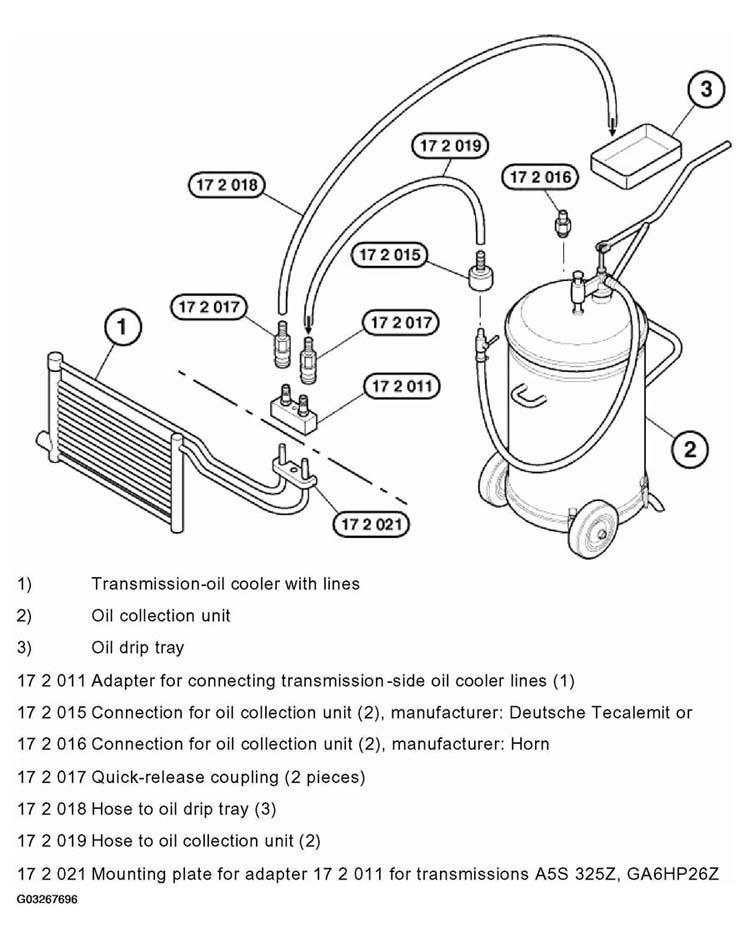

Fig 1: Identifying Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 1: Disconnecting Quick-Release Couplings
Courtesy of BMW OF NORTH AMERICA, INC.
