Arrangement of flushing device for transmission A5S 440Z

WARNING: This page is about a different variant/trim than selected.

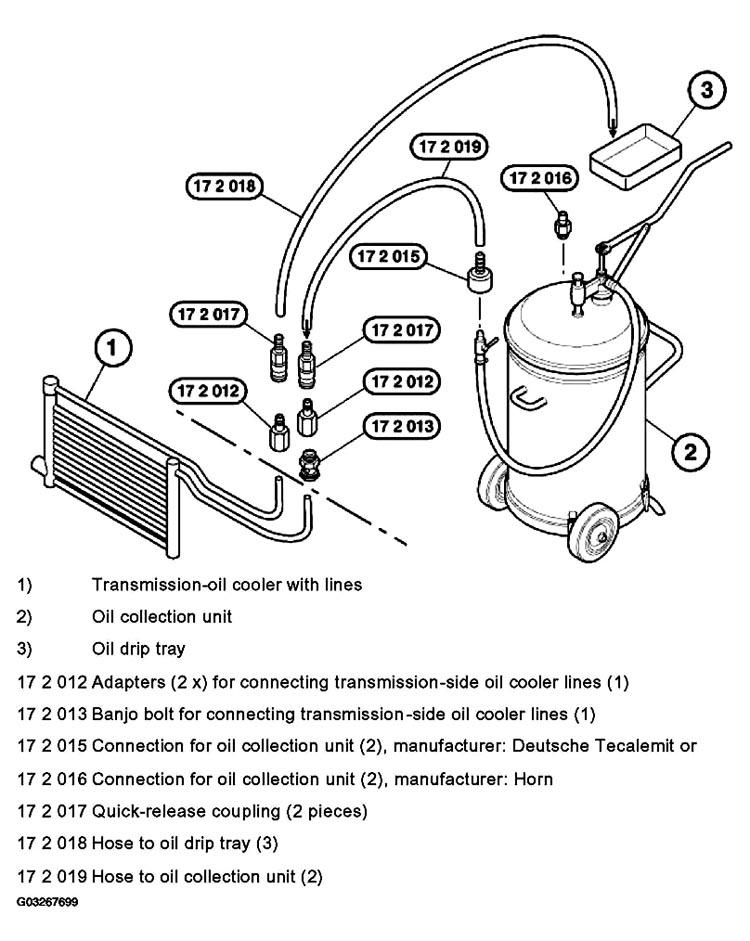

Fig 1: Identifying Flushing Device For Transmission A5S 440Z
G03267699Courtesy of BMW OF NORTH AMERICA, INC.
