17 11 031 Removing and installing/replacing fan cowl with electric fan

Necessary preliminary tasks:

• Read out fault memory of DME control unit
• Switch off ignition
• Remove intake hood.
• Unlock intake pipe and disconnect
• Unclip coolant hose from fan cowl

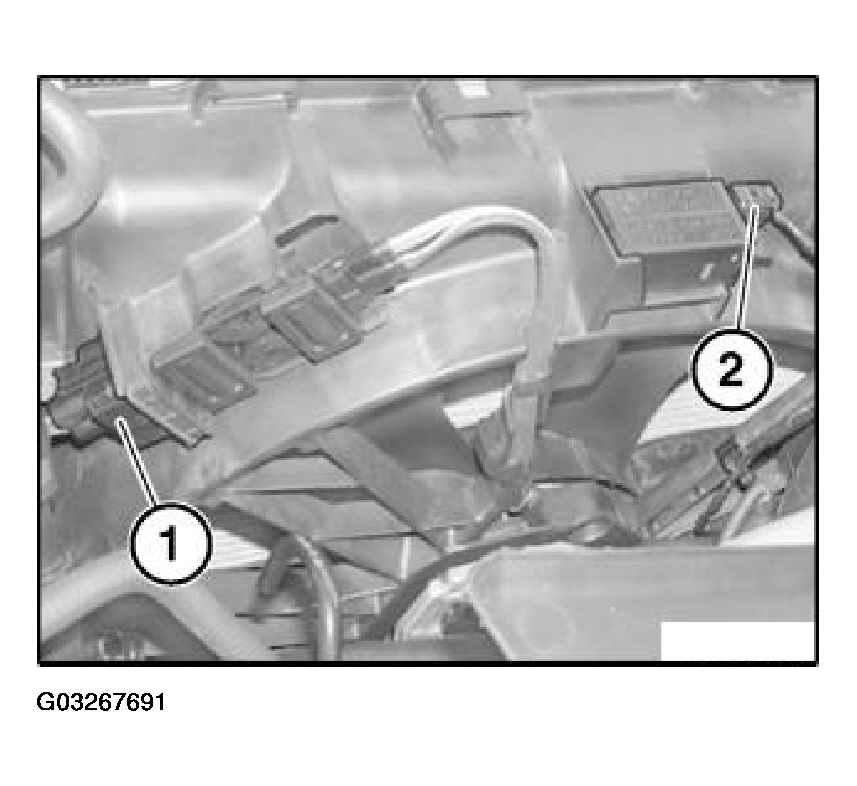

Unlock plug (1) and remove.

Unlock plug (2) on AUC sensor and disconnect, unclip cable.

Fig 1: Removing Plug

Courtesy of BMW OF NORTH AMERICA, INC.

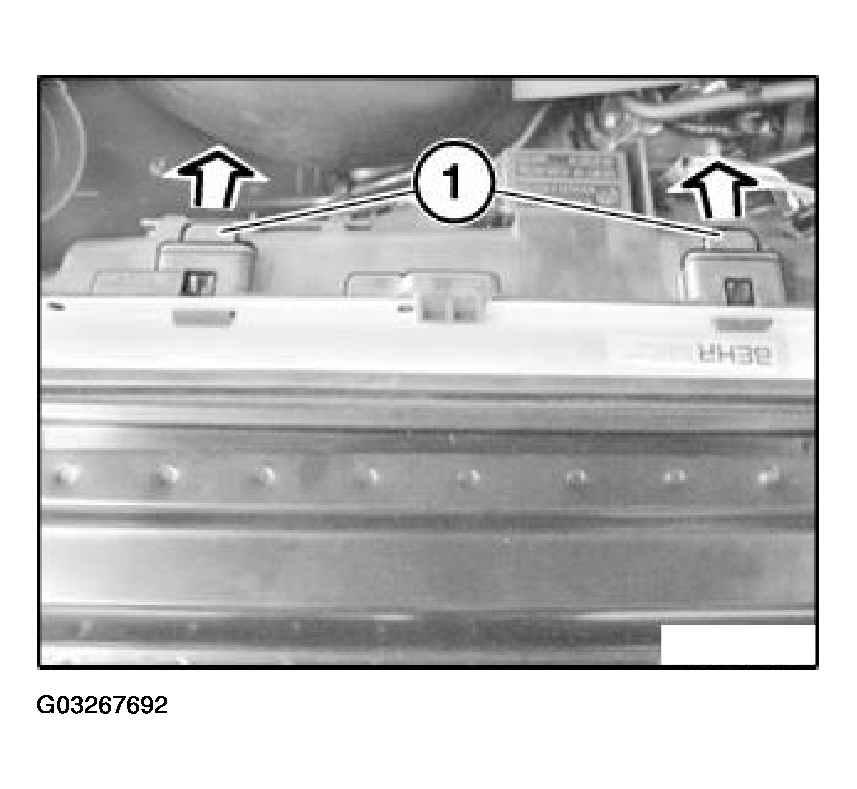

Unlock holder (1) and move in direction of arrow.

Fig 2: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

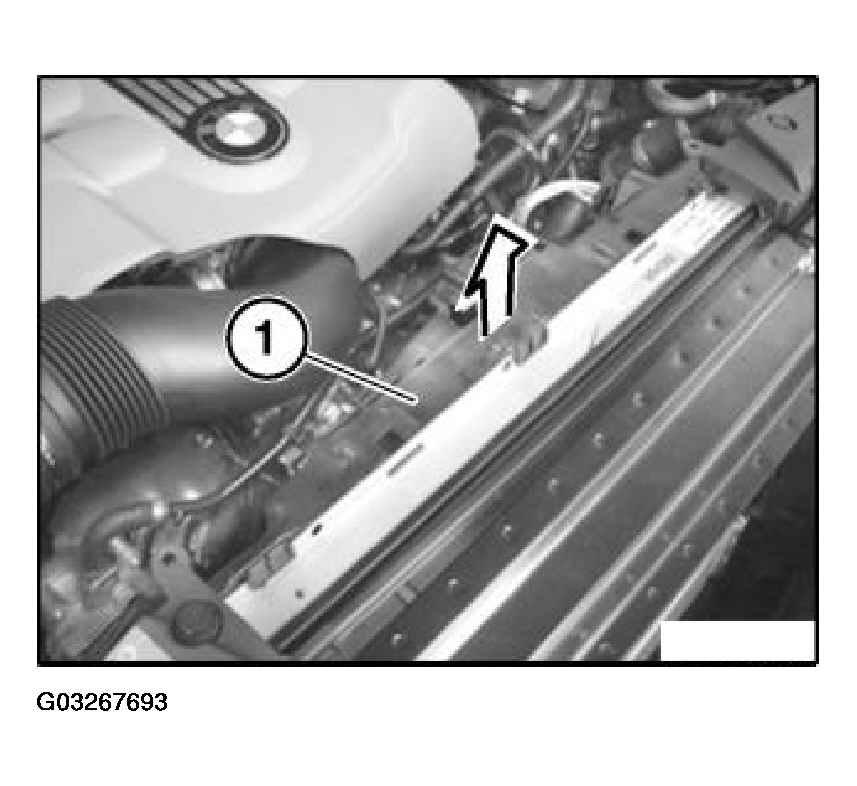

Raise fan cowl (1) approx. 2 cm, carefully press towards rear and lift out.

Fig 3: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Insert retaining tab (1) at bottom on module carrier.
2. Convert AUC sensor when replacing fan cowl.

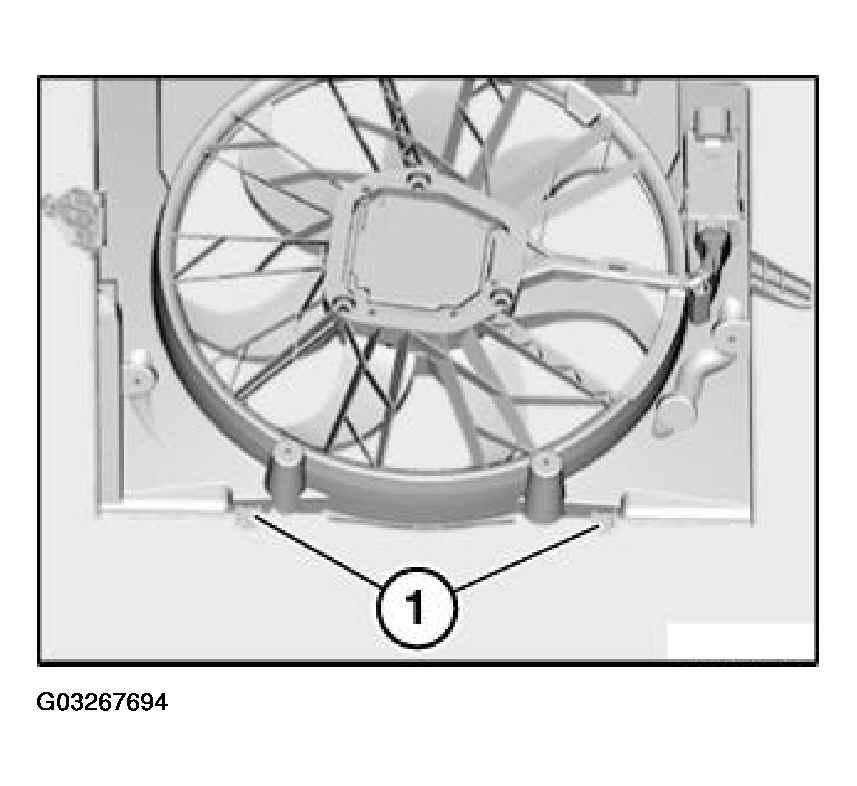

Fig 4: Inserting Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.
