17 11 000 Removing and installing radiator (N62)

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of scalding! Only perform these tasks on an engine that has cooled down.

Recycling

Dispose of drained coolant.

Observe country-specific waste-disposal regulations.

NOTE:

Follow instructions for working on cooling
Drain coolant from radiator
Remove fan cowl with electric fan

Installation:

Top up coolant.

Vent cooling system and check for leaks.

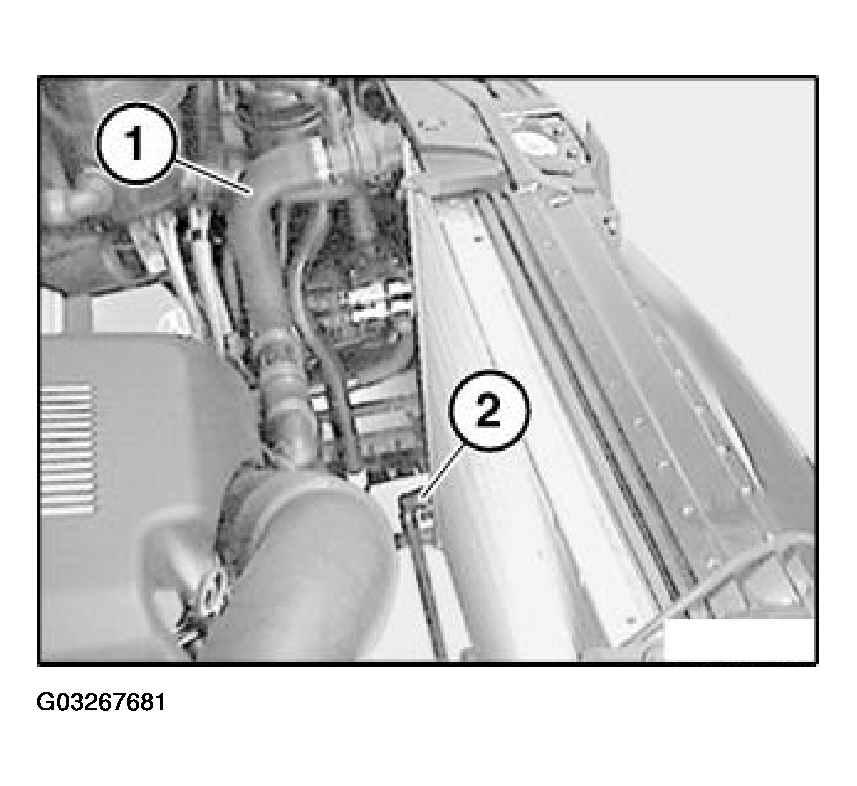

Disconnect coolant hose (1) from radiator at top.

Disconnect coolant hose (2) from radiator at bottom.

Fig 1: Disconnecting Coolant Hose From Radiator At Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

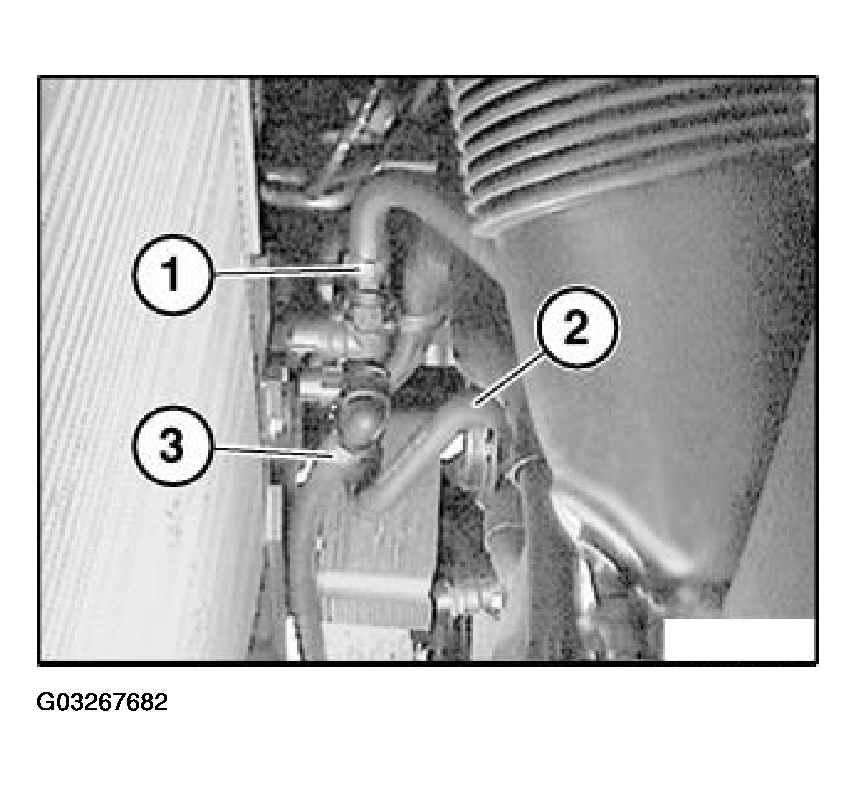

Detach coolant hoses (1, 2 and 3) from mounting plate.

Fig 2: Removing Coolant Hoses From Mounting Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmissions only:

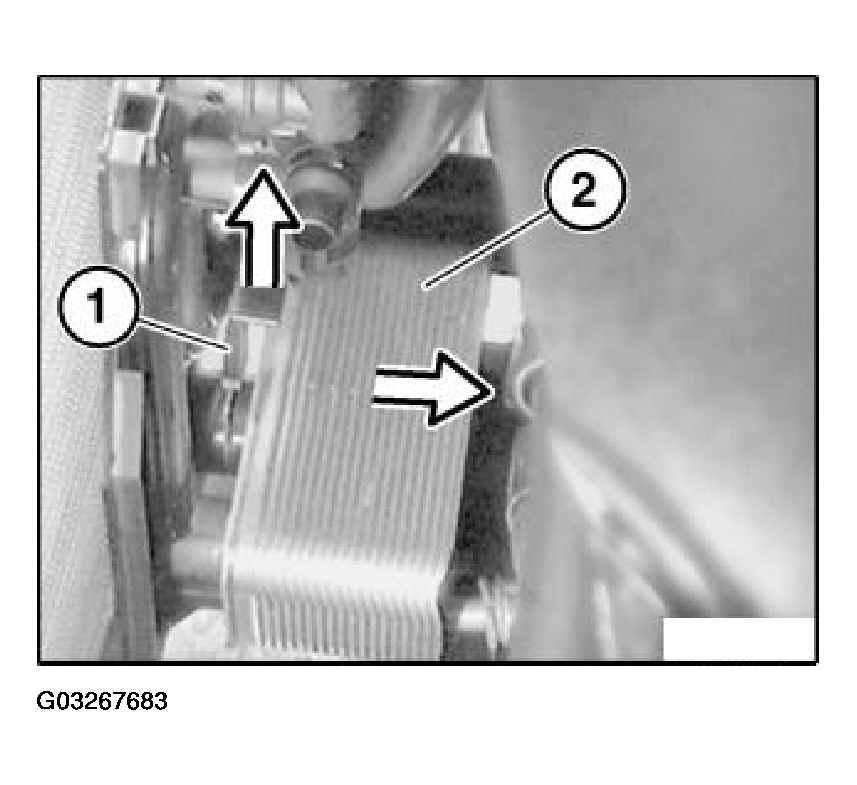

Pull lock (1) upwards.

Remove heat exchanger (2) for automatic transmission fluid from mounting plate on radiator.

NOTE: Oil lines remain connected to heat exchanger.

Installation:

The lock must snap audibly into place when the heat exchanger is forced on.

Fig 3: Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

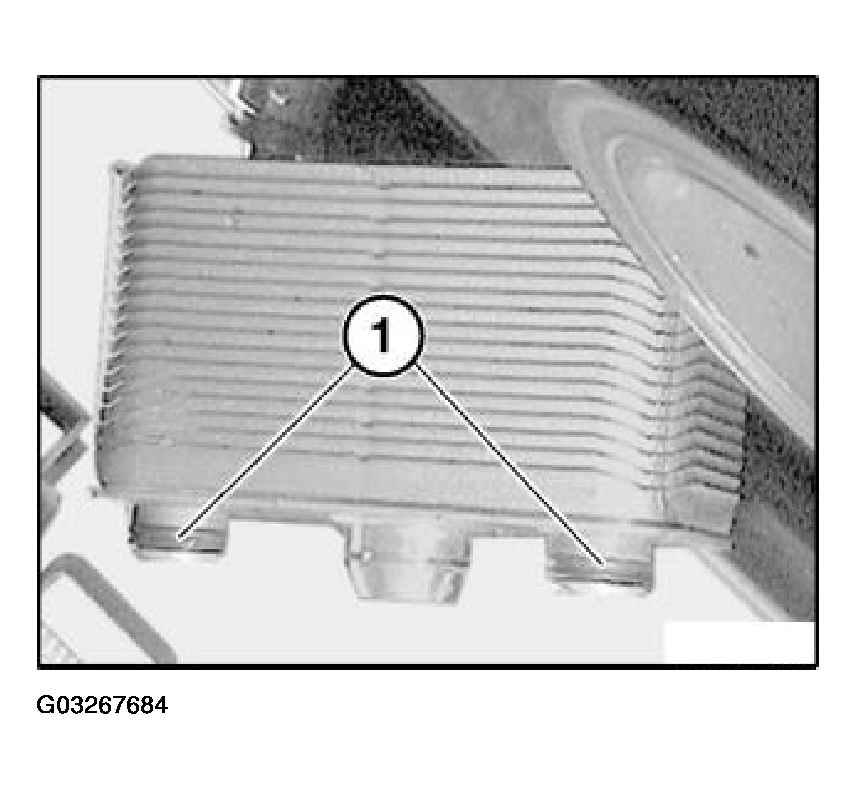

Replace sealing rings (1) on heat exchanger.

Fig 4: Removing Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

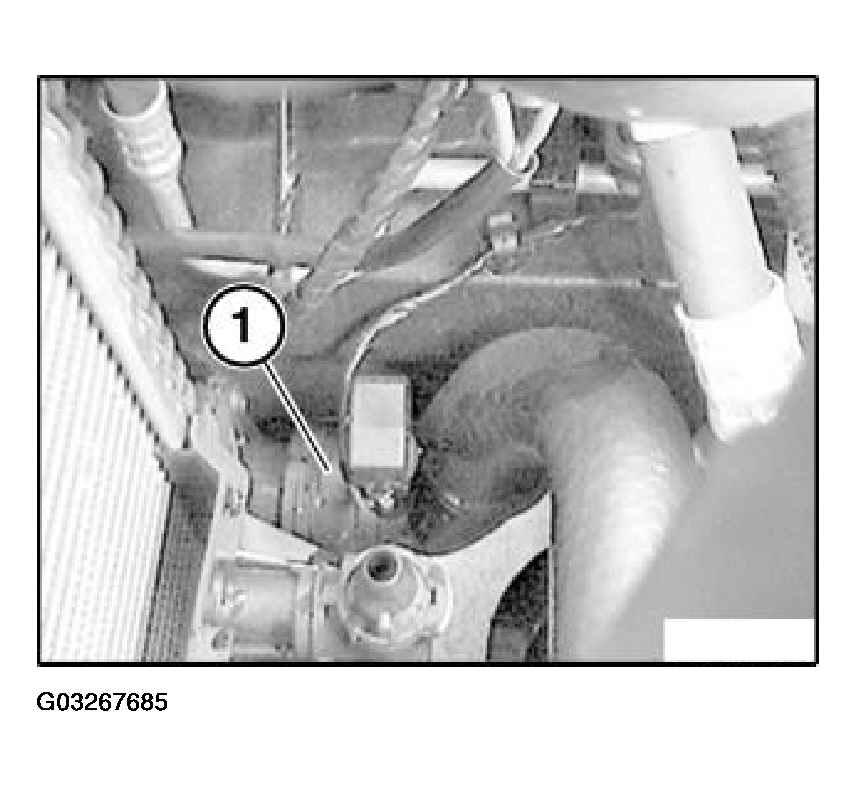

Disconnect coolant hose (1) from radiator at bottom.

Fig 5: Disconnecting Coolant Hose From Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Tightening torque, see COOLING SYSTEM - TIGHTENING TORQUES .

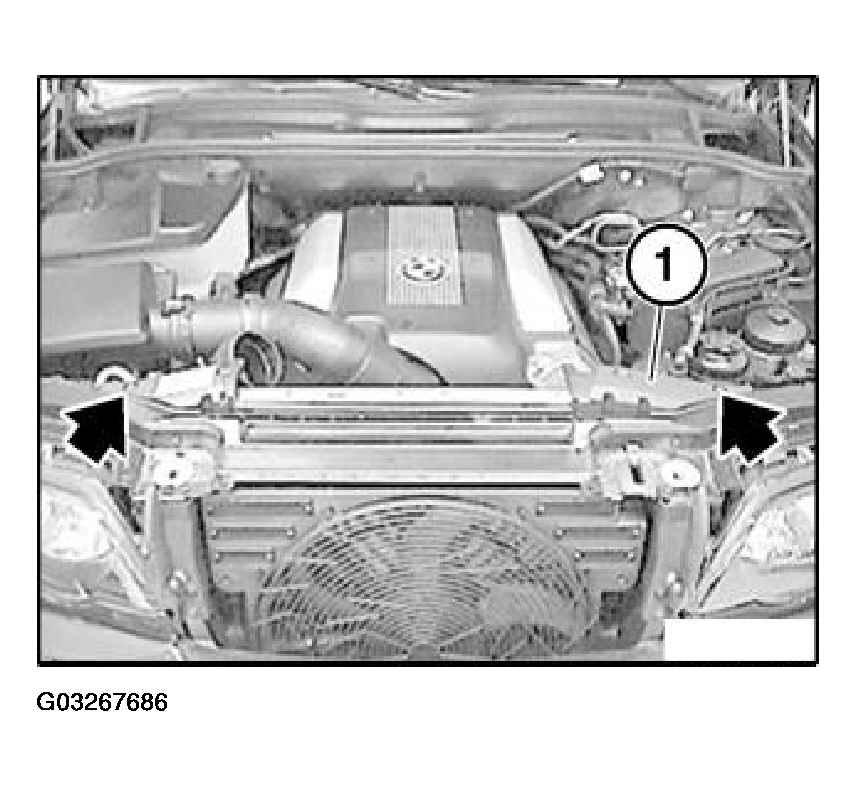

Remove retaining bracket (1).

Fig 6: Removing Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

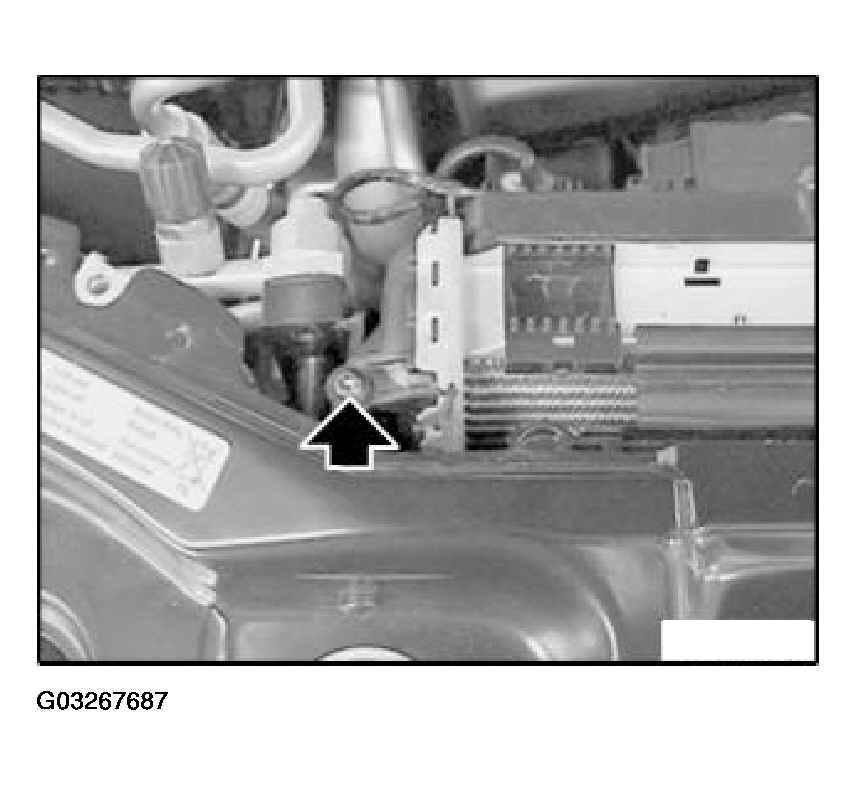

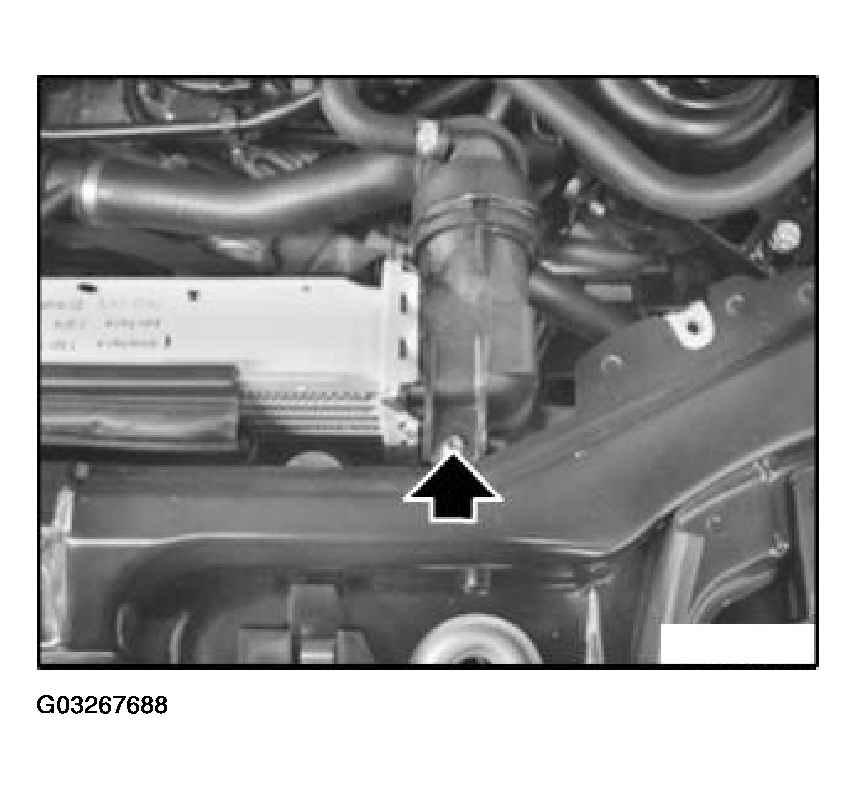

Release screw on right of radiator.

Fig 7: Removing Screw On Right Of Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw on left of radiator.

Fig 8: Removing Screw On Left Of Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

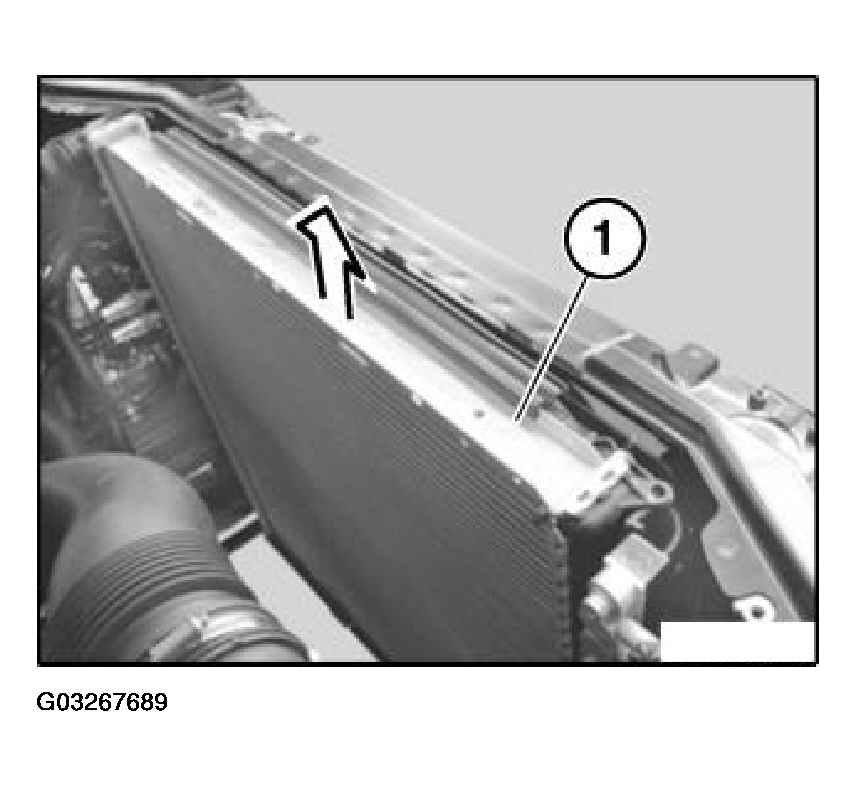

Remove radiator (1) towards top.

Fig 9: Removing Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

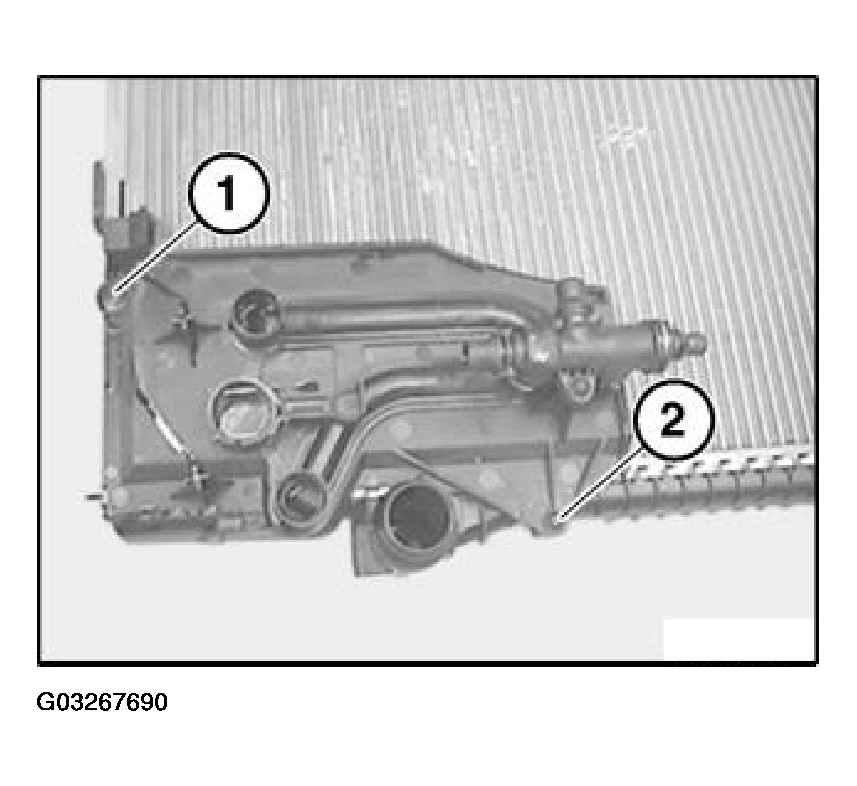

If necessary, remove mounting plate from radiator.

Lever out expansion rivet (1).

Release screw (2).

Remove mounting plate.

Fig 10: Removing Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.
