Disassembly of fast-release coupling

WARNING: This page is about a different variant/trim than selected.

Withdraw lock (1/2), disconnect hose.

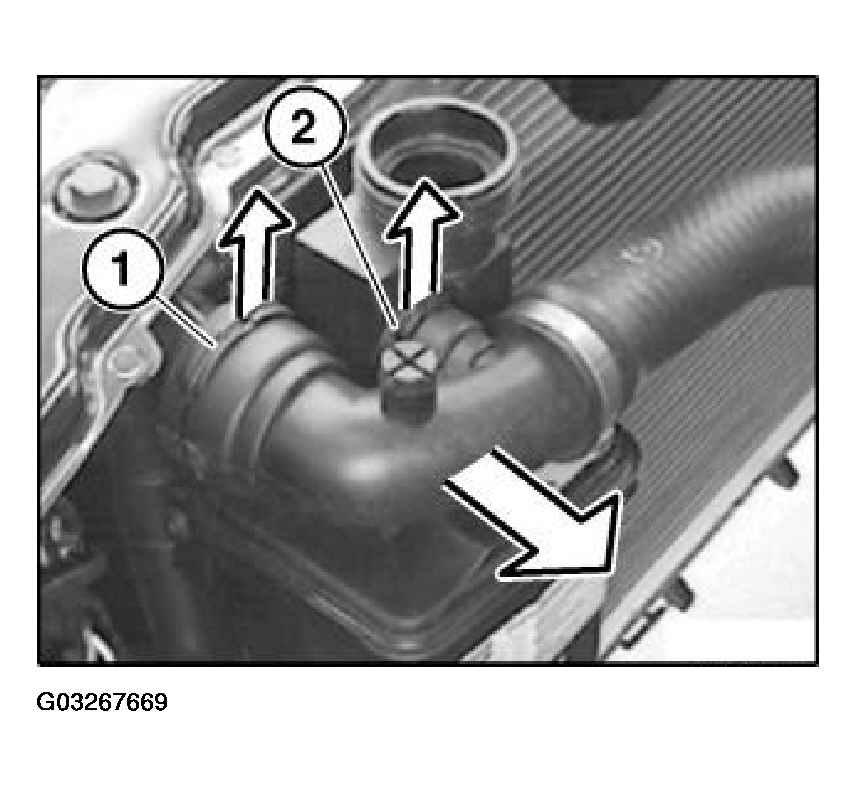

Fig 1: Disconnecting Hose

G03267669

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check O-rings (1).
Do not coat O-rings (1) with antiseize agent.

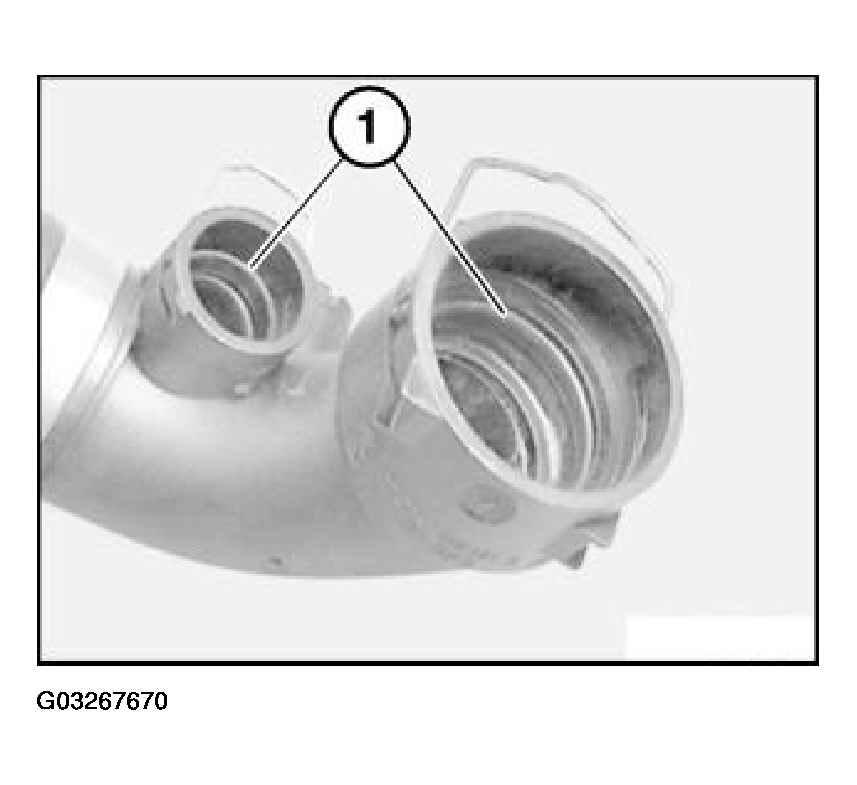

Fig 2: Checking O-Rings

G03267670

Courtesy of BMW OF NORTH AMERICA, INC.
