Battery in luggage compartment under floor trim panel
WARNING: This page is about a different variant/trim than selected.
Follow instructions for disconnecting and connecting battery .

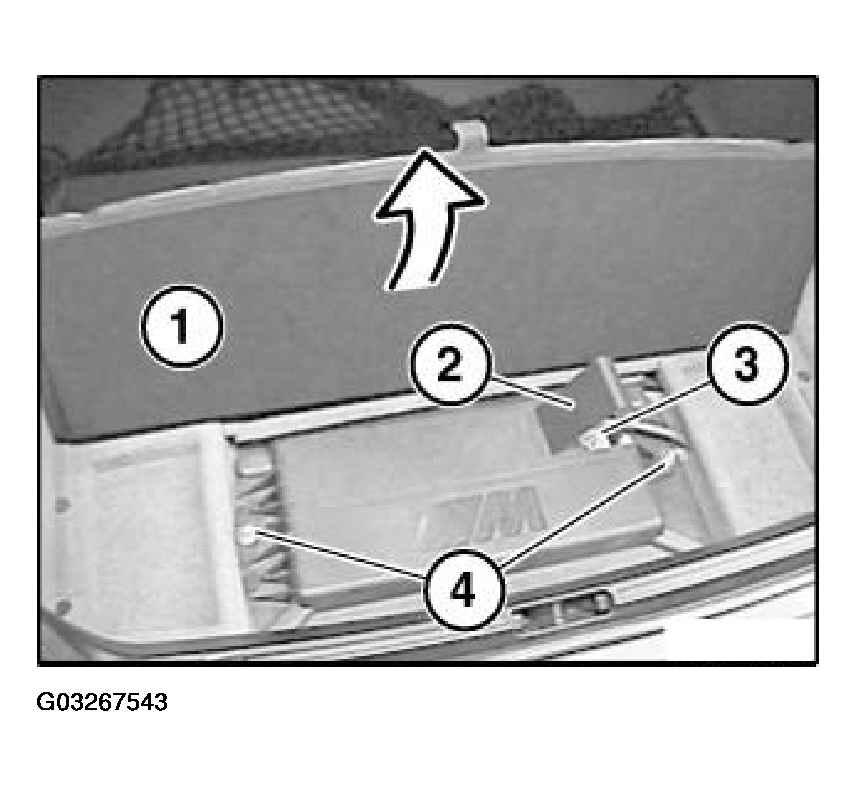

Fold back floor trim panel (1).
Lift cover (2) on battery negative lead.
Disconnect and cover battery negative lead (3).
Release nuts (4).
Remove battery cover.
