12 61 285 Replacing engine oil level switch (N62)
WARNING: This page is about a different variant/trim than selected.
Switch off ignition
Remove reinforcement plate
Drain off engine oil

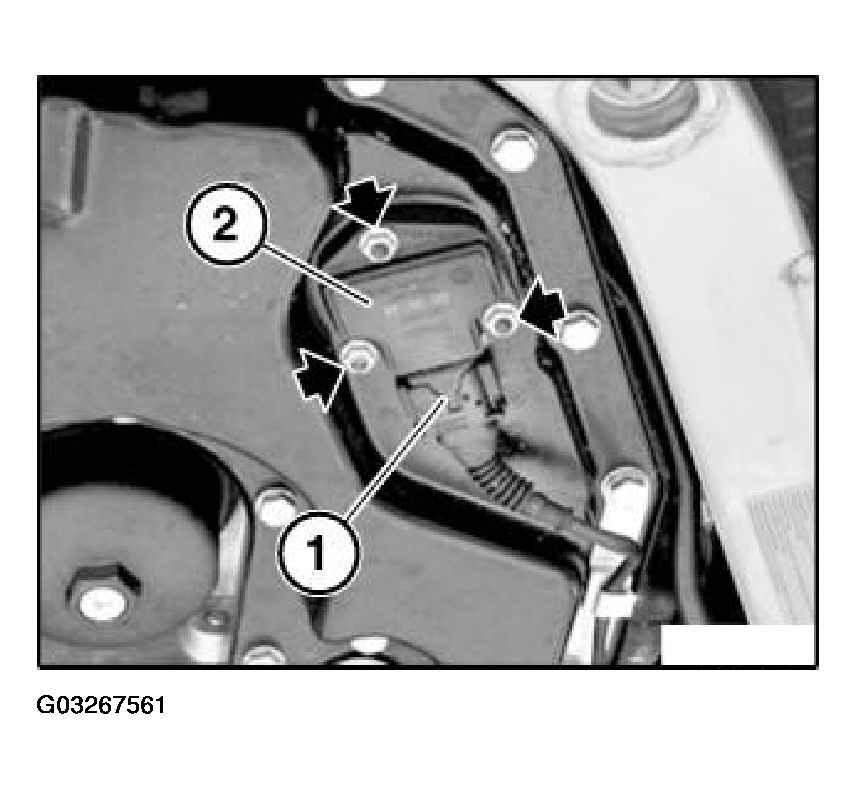

Illustration shows 7-series.
Unlock and detach plug connection (1).
Unscrew nuts.
Tightening torque, see ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Remove level switch (2).
Installation:
Clean sealing face on oil sump.
Replace seal on level switch.
An excessively low torque value will result in oil leakage, an excessively high torque value will result in damage to the level switch.
Top up engine oil.
