12 61 280 Removing and installing/replacing oil pressure switch (N62)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Switch off ignition
- Remove intake hood with air intake hose. See INTAKE FILTER & HOSE .
WARNING:
Scalding hazard!
Only perform this task on an engine that has cooled down.
Only perform this task on an engine that has cooled down.
Installation location:
Cylinder bank 1 to 4 on cylinder head, front right.
Engine oil may emerge when oil pressure switch is replaced; have a cleaning cloth ready.

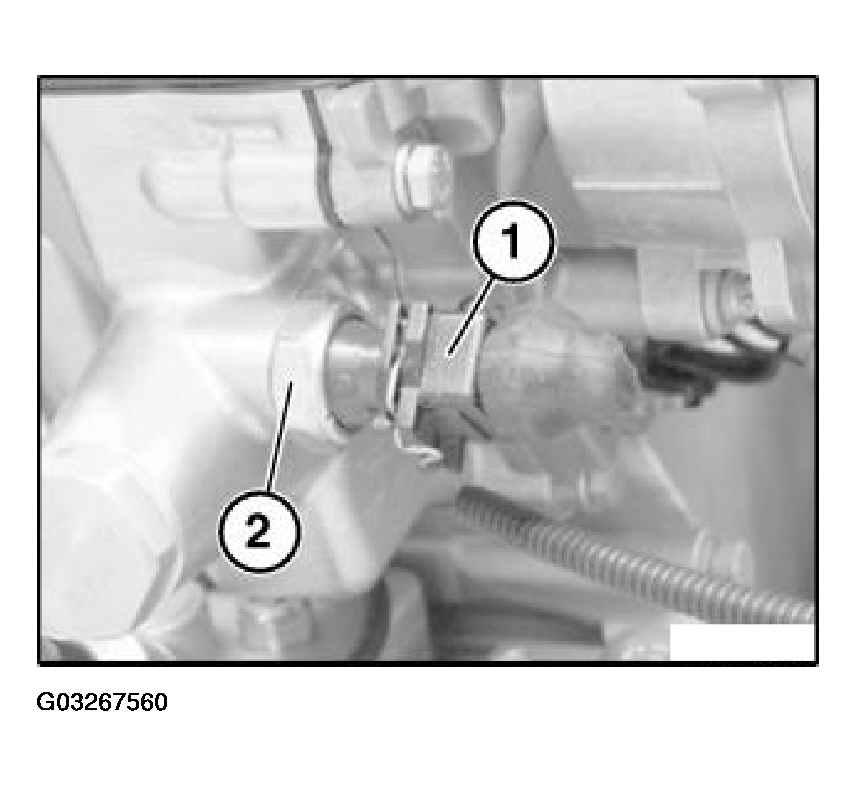

Unlock and detach plug connection (1).
Unscrew oil pressure switch (2).
Tightening torque, see ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Installation:
Check engine oil level, top up engine oil if necessary.
