12 52 005 Removing and installing/replacing integrated supply module (N62)

Necessary preliminary tasks:

• Read out fault memory of DME control unit
• Switch off ignition
• Follow instructions for disconnecting and connecting battery

  Disconnect battery

• Remove microfilter housing cover. See CABIN AIR FILTER .

Release lock (1).

Remove air funnel (2) towards top.

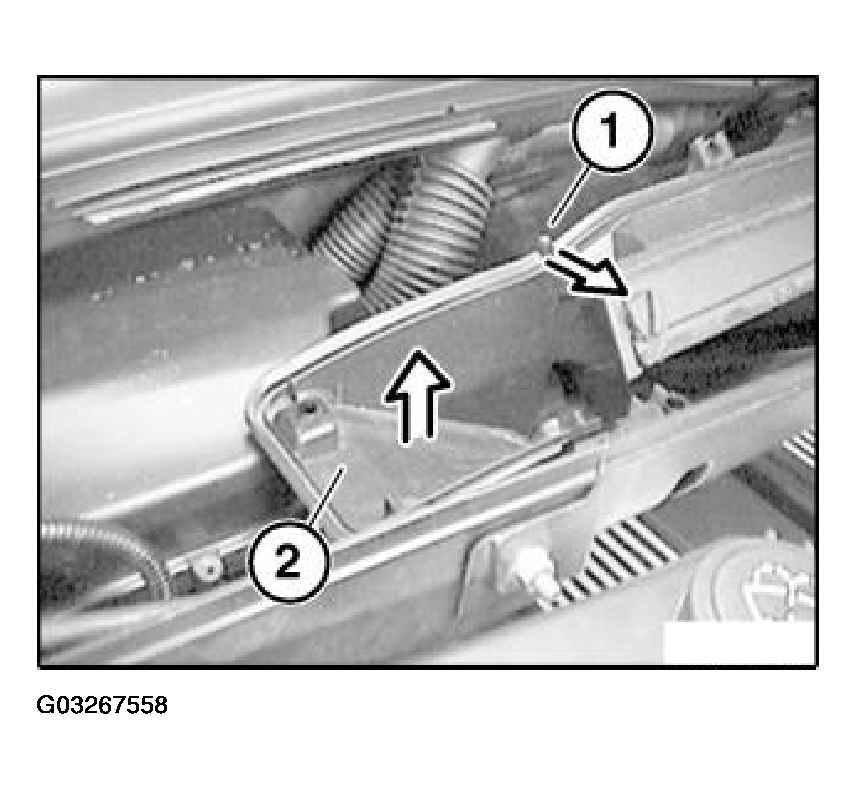

Fig 1: Removing Air Funnel

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.
