12 51 150 Removing and installing/replacing wiring harness section for fuel injectors on left or right (N62)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Follow instructions for disconnecting and connecting battery .
Disconnect battery negative lead from battery and lay to one side
- Remove acoustic cover. See CYLINDER HEAD WITH COVER .
- Remove ignition coil cover
NOTE:
The procedure is identical for both sides. Illustrations show and descriptions refer to left side.

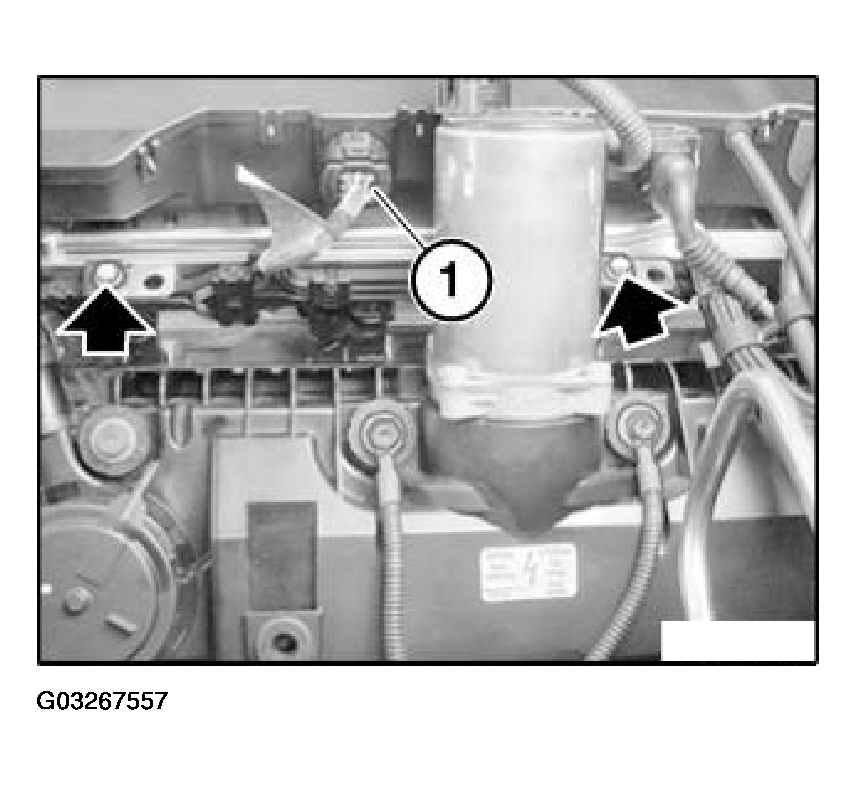

Unfasten screws.
Unlock plug (1) and remove.
Remove positioning motor for eccentric shaft.
Unlock plugs on fuel injectors and disconnect.
Remove wiring harness.
Check function of DME
