12 14 526 Replacing pulse generator on right inlet camshaft (N62)

WARNING: This page is about a different variant/trim than selected.

(Cylinder bank 1 to 4)

Interrogate fault memory of DME control unit.

Switch off ignition.

Remove acoustic cover.

Remove right ignition coil cover. See Fig 1.

Unlock and detach plug connection (1).

Fig 1: Removing Right Ignition Coil Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Remove pulse generator (2).

Installation:

Replace sealing ring and coat with anti-friction rubber coating.

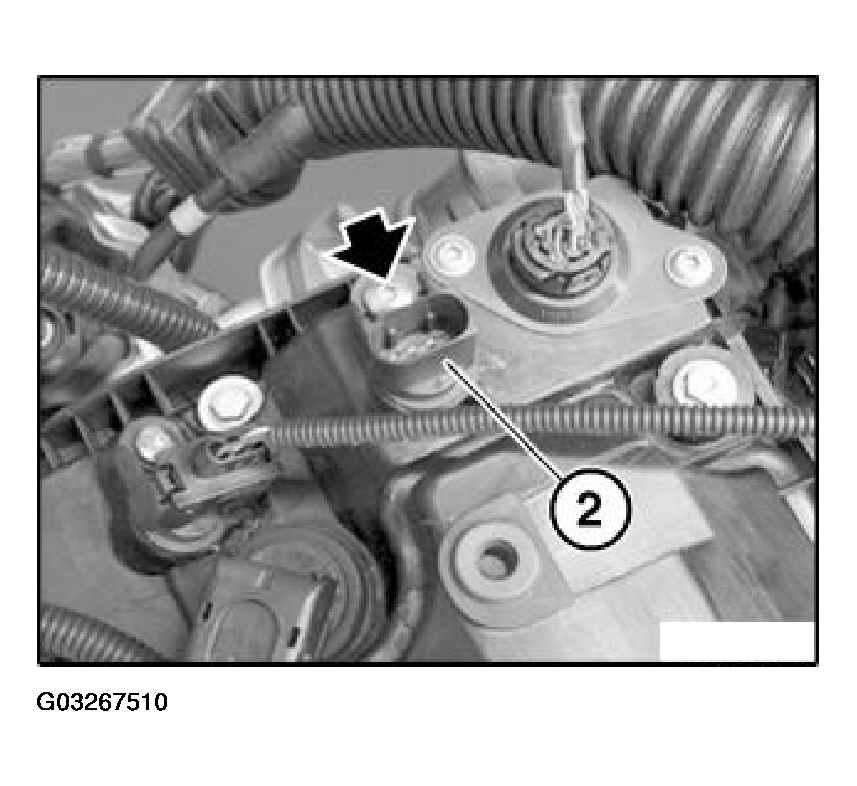

Fig 2: Removing Pulse Generator
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory.
