12 14 522 Replacing pulse generator on left inlet camshaft (N62)

WARNING: This page is about a different variant/trim than selected.

(Cylinder bank 5 to 8)

Interrogate fault memory of DME control unit.

Switch off ignition.

Remove acoustic cover.

Remove left ignition coil cover. See Figure.

Unlock and detach plug connection (1).

Fig 1: Removing Left Ignition Coil Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Remove pulse generator (2).

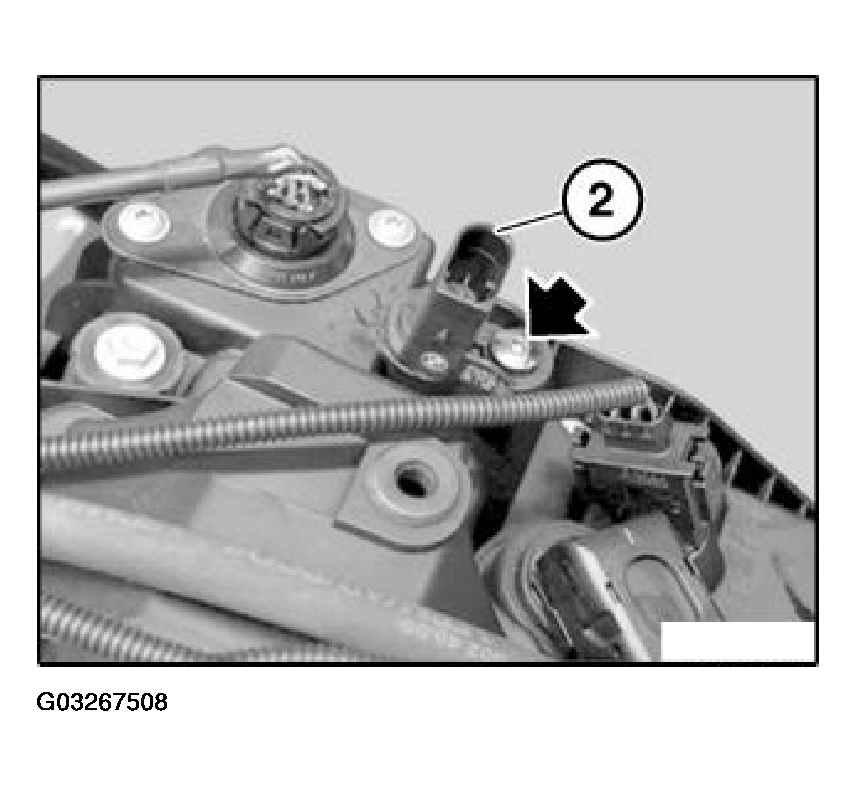

Fig 2: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory.
